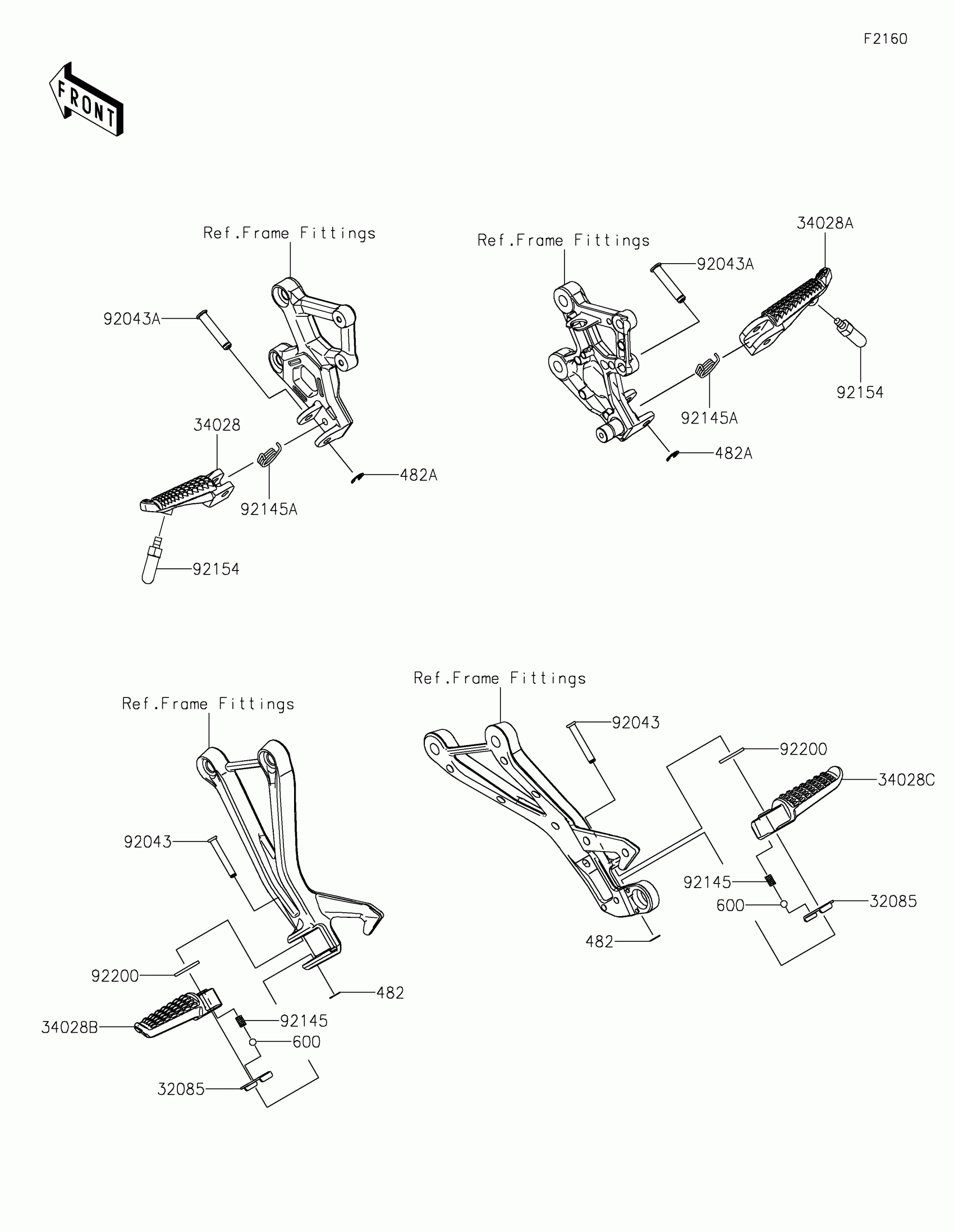

Kawasaki Ninja ZX-4R ABS Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$4.23

34028

STEP,FR,LH

34028-0356

$53.92

34028A

STEP,FR,RH

34028-0357

$53.92

34028B

STEP,RR,LH

34028-0366

$62.97

34028C

STEP,RR,RH

34028-0367

$71.74

92043

PIN,6X40

92043-0200

$2.11

92043A

PIN,8X40.5

92043-0877

$3.78

92145

SPRING

92145-1319

$1.33

92145A

SPRING

92145-2240

$1.04

92154

BOLT,BANK SENSOR

92154-2799

$6.05

92200

WASHER,16X26X2.3

92200-0772

$3.29

482

CIRCLIP-TYPE-E

482EA5000

$1.04

482A

CIRCLIP-TYPE-E

482EA7000

$2.99

600

BALL-STEEL,1/4

600A0800

$0.59
