2025 Kawasaki Ninja ZX-4R ABS Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2025 Kawasaki Ninja ZX-4R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

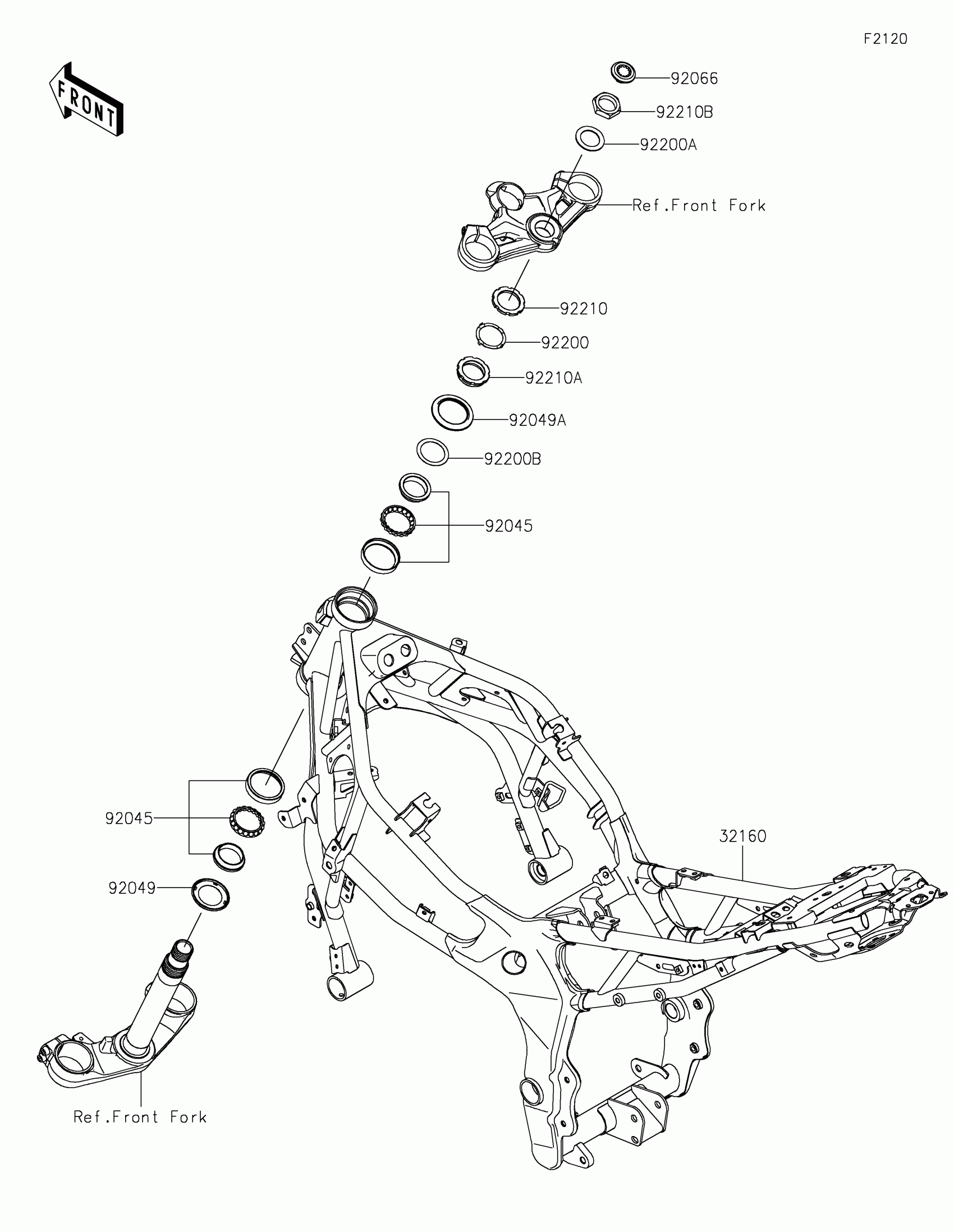

2025 Kawasaki Ninja ZX-4R ABS Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,F.S.BLACK

32160-2051-18R

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL

92049-0137

1
Out of stock

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

1
Out of stock

92066

PLUG,STEM-TOP

92066-0944

1
Out of stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,28.5X42X1.6

92200-0209

1
Out of stock

92200B

WASHER,36X47X0.6

92200-2530

1
Out of stock

92210

NUT,STEERING STEM,35MM

92210-0534

1
Out of stock

92210A

NUT,35MM

92210-0823

1
Out of stock

92210B

NUT,28MM

92210-1746

1
Out of stock
