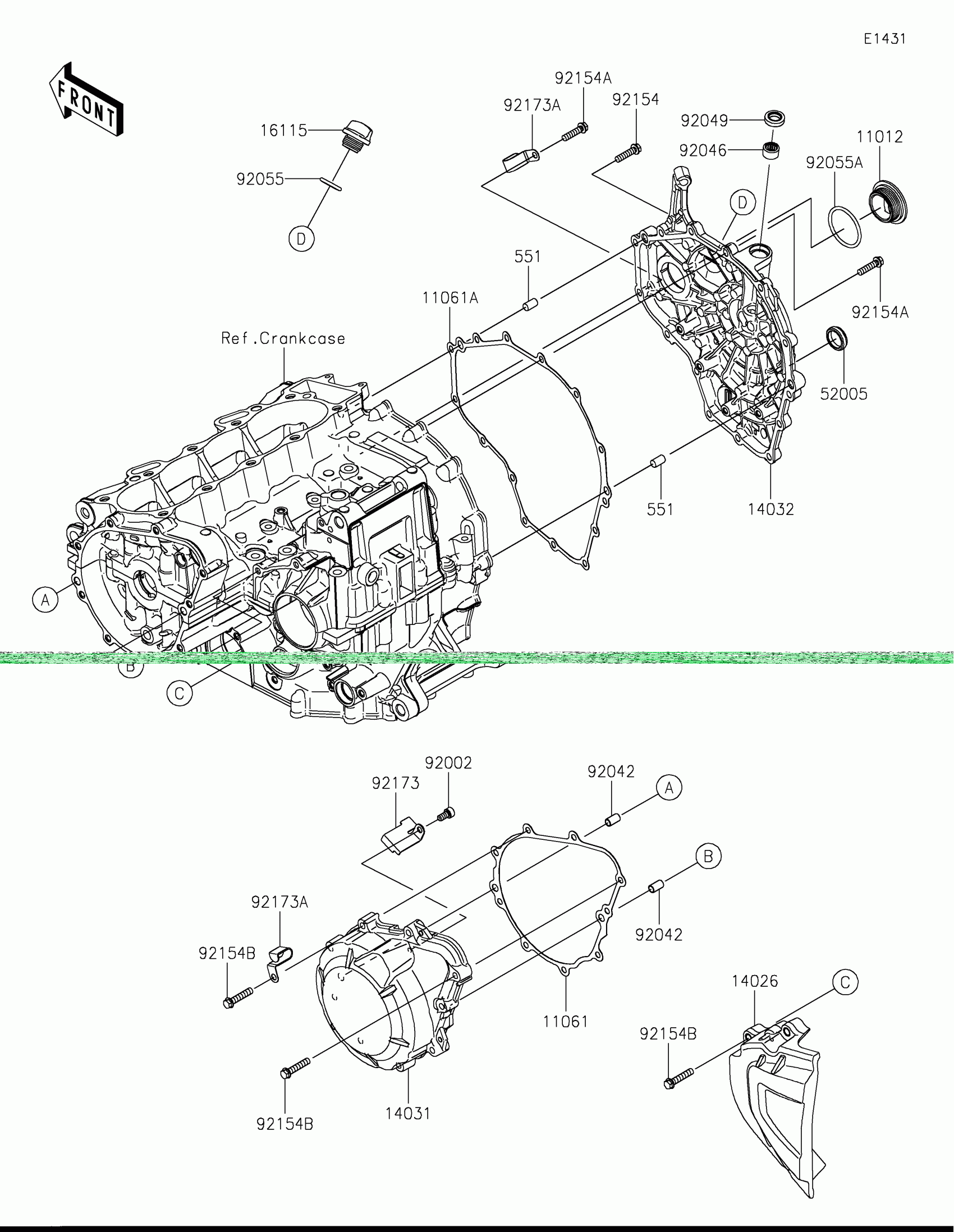

Kawasaki Ninja ZX-4R ABS Engine Cover(s) Diagram

Description

Price

11012

CAP

11012-1362

$6.70

11061

GASKET,GENERATOR COVER

11061-1326

$16.11

11061A

GASKET,CLUTCH COVER

11061-1327

$16.11

14026

COVER-CHAIN

14026-0158

$23.64

14031

COVER-GENERATOR

14031-0637

$113.38

14032

COVER-CLUTCH

14032-0661

$167.49

16115

CAP-OIL FILLER

16115-1053

$9.28

52005

GAUGE,OIL LEVEL

52005-1009

$13.87

92002

BOLT,SOCKET,6X12

92002-1796

$3.57

92042

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$11.87

92049

SEAL-OIL

92049-1560

$7.08

92055

RING-O

92055-012

$0.82

92055A

RING-O,39.4X3.1

92055-0734

$1.68

92154

BOLT,FLANGED,6X25

92154-2734

$1.81

92154A

BOLT,FLANGED,6X25

92154-7030

Unavailable

92154B

BOLT,FLANGED,6X30

92154-7032

$1.03

92173

CLAMP

92173-2112

$1.81

92173A

CLAMP

92173-2588

$2.10

551

PIN-DOWEL,8X14

551A0814

$0.93
