2025 Kawasaki Ninja ZX-4R ABS Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2025 Kawasaki Ninja ZX-4R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

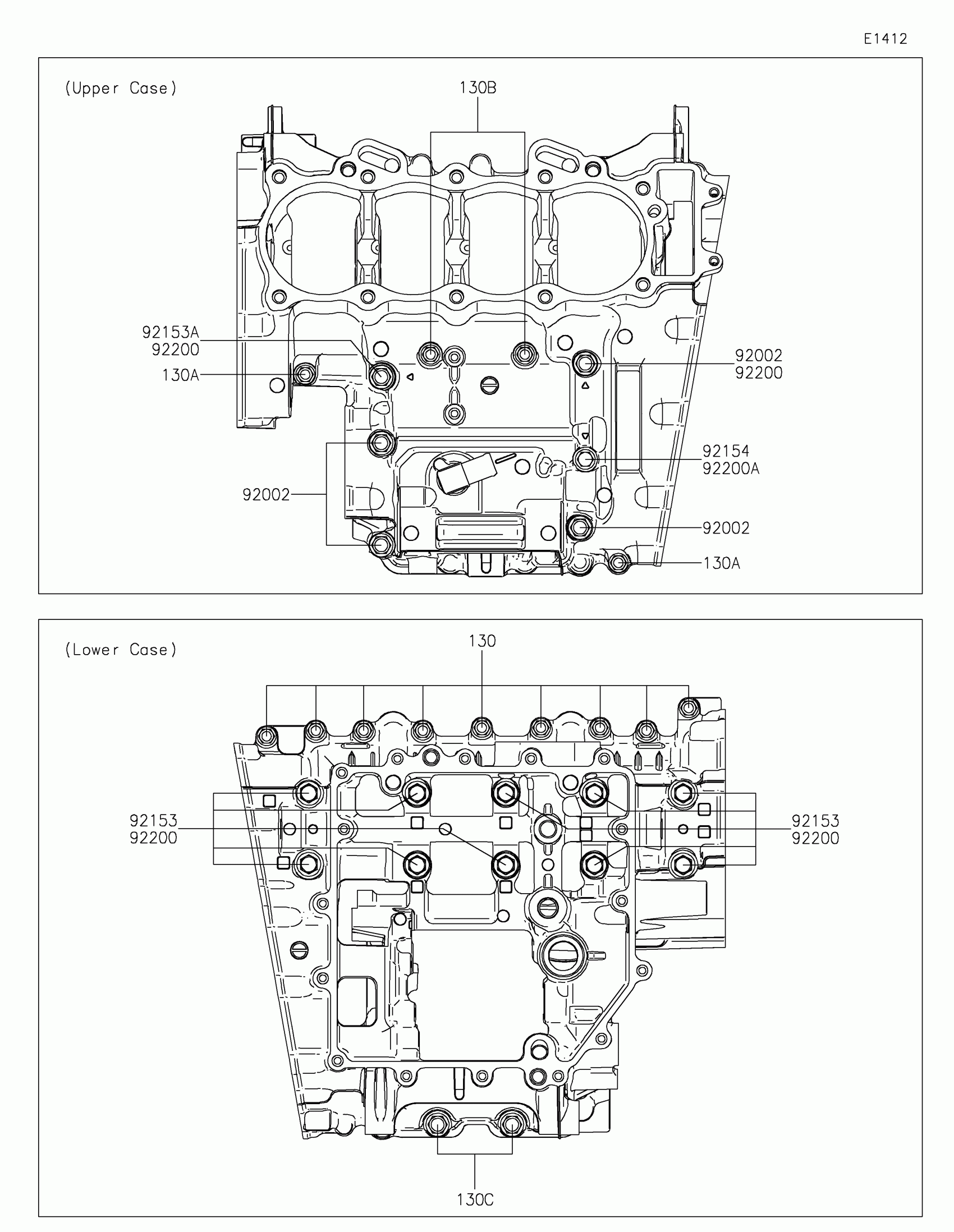

2025 Kawasaki Ninja ZX-4R ABS Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92002

BOLT,8X80

92002-1649

1
Out of stock

92153

BOLT,FLANGED,8X95

92153-1631

1
Out of stock

92153A

BOLT,8X50

92153-7073

1
Out of stock

92154

BOLT,7X80

92154-4150

1
Out of stock

92200

WASHER,HEAD

92200-0273

1
Out of stock

92200A

WASHER

92200-0556

1
Out of stock

130

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock

130A

BOLT-FLANGED,6X40

130CA0640

1

$2.29

In stock

130B

BOLT-FLANGED,6X55

130CA0655

1
Out of stock

130C

BOLT-FLANGED,8X55

130CA0855

1
Out of stock
← Crankcase Crankshaft →
