2013 Kawasaki Ninja® ZX™-14R Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2013 Kawasaki Ninja® ZX™-14R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

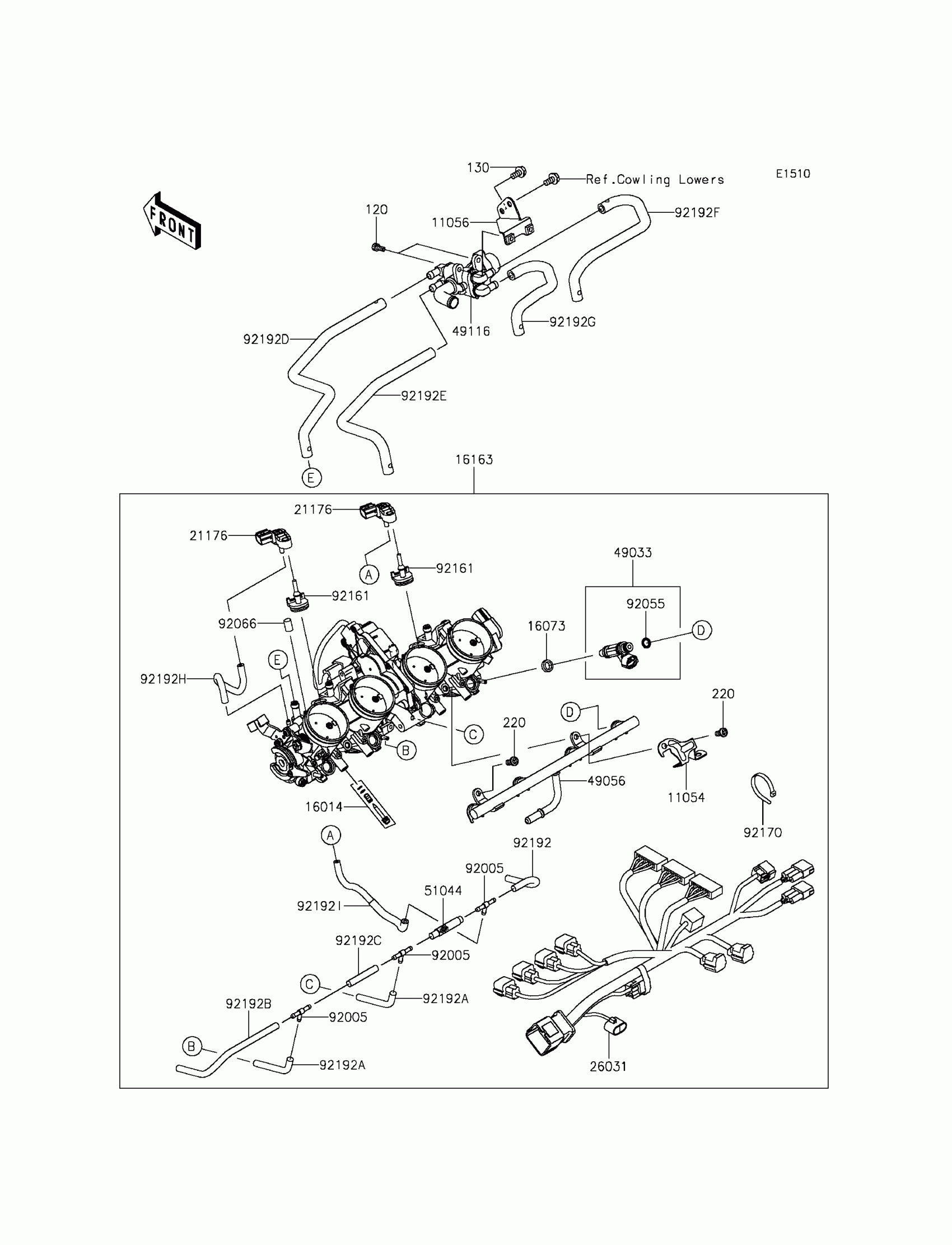

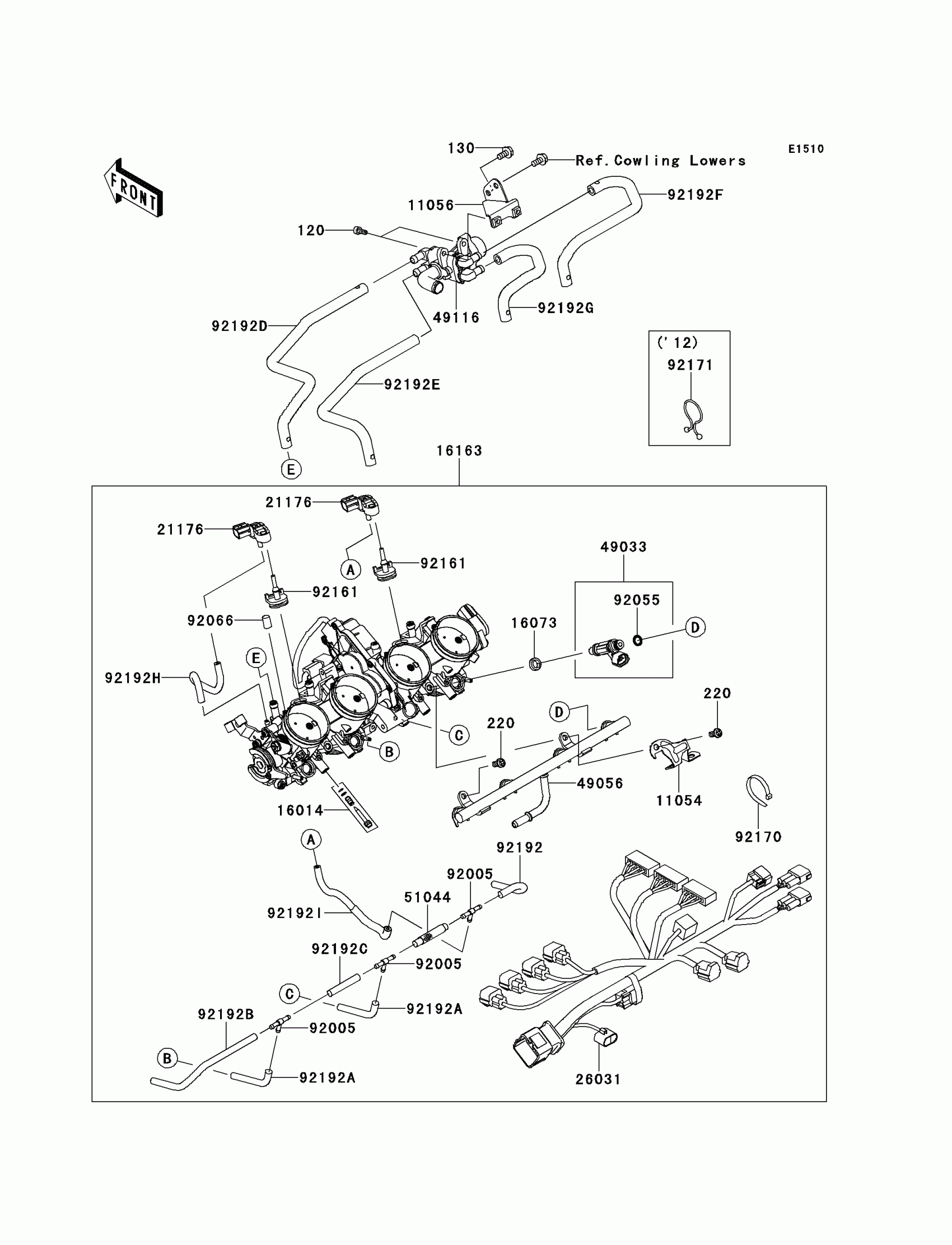

2013 Kawasaki Ninja® ZX™-14R Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120CA0512

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1
Out of stock

220

SCREW-PAN-CROS,6X12

220AA0612

1
Out of stock

11054

BRACKET

11054-0554

1
Out of stock

11056

BRACKET,ISCV

11056-1175

1
Out of stock

16014

SCREW-PILOT AIR

16014-0005

1
Out of stock

16073

INSULATOR,INJECTER

16073-1123

1
Out of stock

16163

THROTTLE-ASSY

16163-0780

1
Out of stock

21176

SENSOR,PRESSURE

21176-0111

1
Out of stock

26031

HARNESS

26031-1425

1
Out of stock

49033

NOZZLE-INJECTION

49033-0557

1
Out of stock

49056

PIPE-INJECTION

49056-0017

1
Out of stock

49116

VALVE-ASSY,ISC

49116-0706

1
Out of stock

51044

TUBE-ASSY

51044-0727

1
Out of stock

92005

FITTING

92005-1380

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92066

PLUG,FITTING

92066-1549

1
Out of stock

92161

DAMPER

92161-0673

1
Out of stock

92170

CLAMP

92170-3749

1
Out of stock

92192

TUBE,3.2X7.4X115

92192-0131

1
Out of stock

92192A

TUBE,3.2X7.4X60

92192-0576

1
Out of stock

92192B

TUBE,3.2X7.4X175

92192-0577

1
Out of stock

92192C

TUBE,3.2X7.4X50

92192-0578

1
Out of stock

92192D

TUBE,THROTTLE #1-ISCV

92192-1009

1
Out of stock

92192E

TUBE,THROTTLE #2-ISCV

92192-1010

1
Out of stock

92192F

TUBE,THROTTLE #3-ISCV

92192-1011

1
Out of stock

92192G

TUBE,THROTTLE #4-ISCV

92192-1012

1
Out of stock

92192H

TUBE,BODY LH-SENSOR

92192-1088

1
Out of stock

92192I

TUBE,FITTING-SENSOR

92192-1089

1
Out of stock
