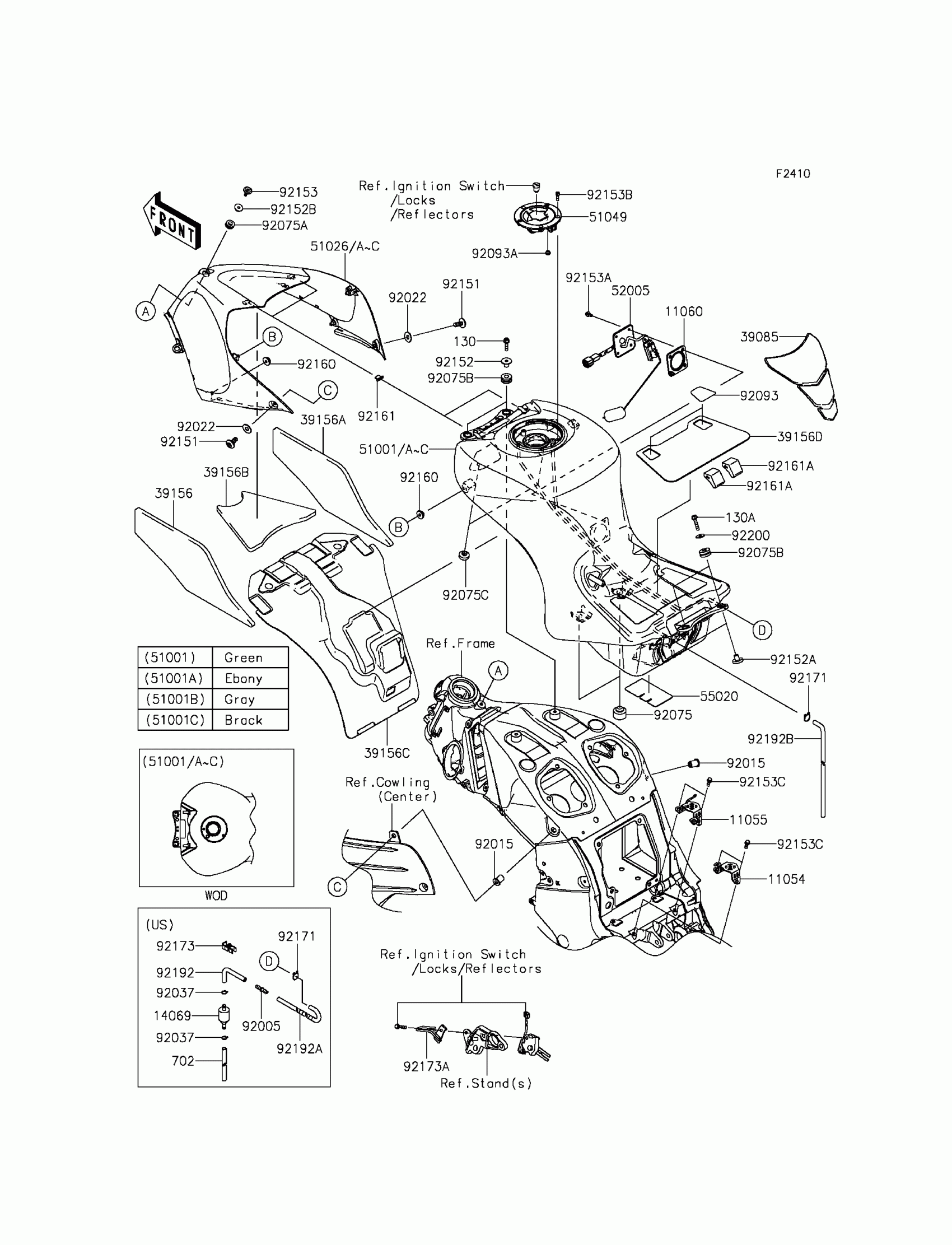

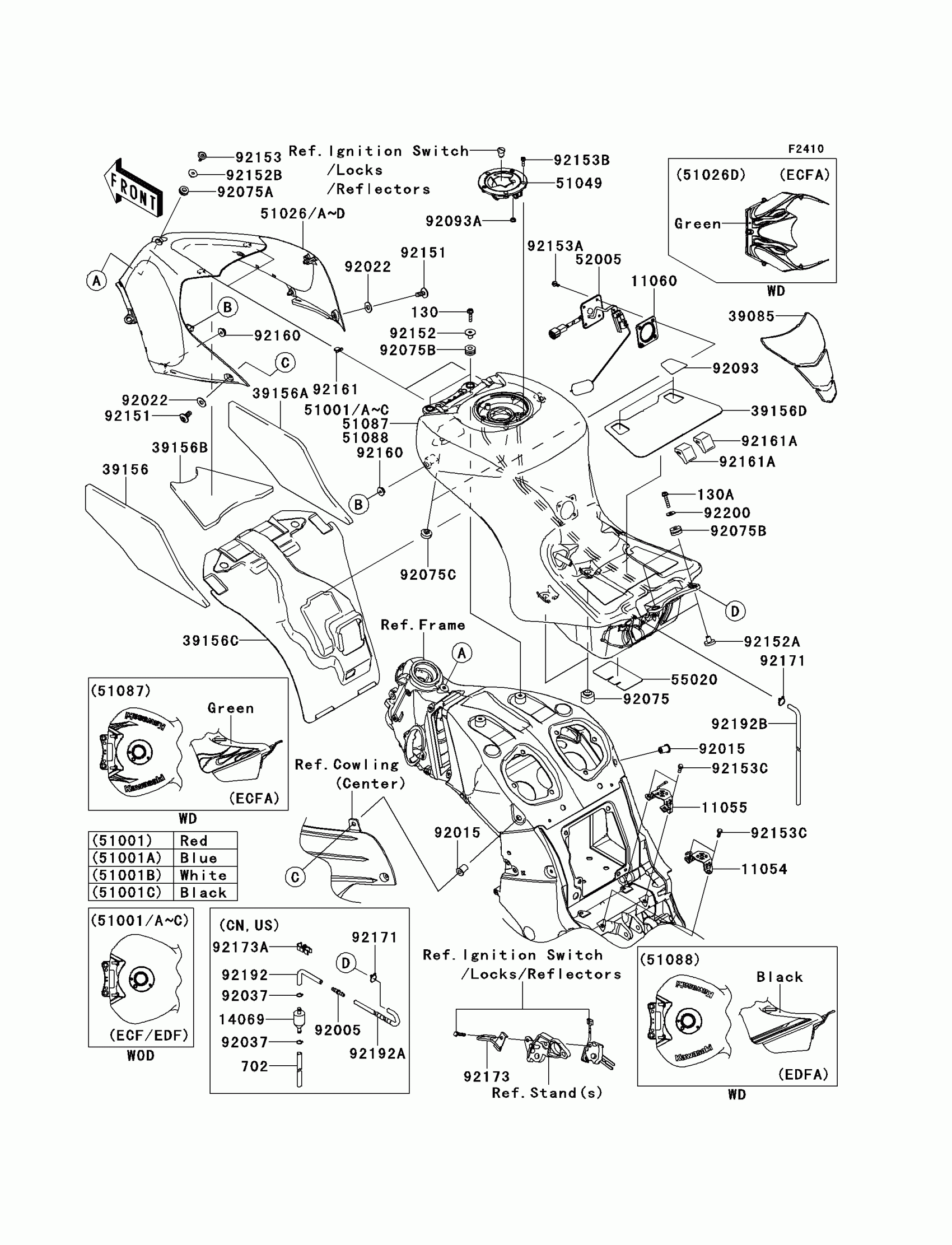

Kawasaki NINJA® ZX™-14R Fuel Tank Diagram

#

Description
Price

11054

BRACKET,FUEL TANK,CNT,LH

11054-0681

$9.37

11055

BRACKET,FUEL TANK,CNT,RH

11055-0063

$11.42

11060

GASKET,FUEL GAUGE

11060-1952

$17.15

39085

PAD-TANK

39085-0054

$115.39

39156

PAD,TANK COVER,LH

39156-0780

$19.69

39156A

PAD,TANK COVER,RH

39156-0781

$19.69

39156B

PAD,TANK COVER,CNT

39156-0782

$14.00

39156C

PAD

39156-0794

$71.42

39156D

PAD,FUEL TANK

39156-0863

$15.02

51001

TANK-COMP-FUEL,P.RED

51001-0752-234

$1,476.05

51026

COVER TANK,FUEL,P.RED

51026-0007-234

$284.95

51049

CAP-TANK,FUEL

51049-0715

$139.15

52005

GAUGE,FUEL

52005-0093

$214.45

55020

GUARD,FUEL TANK

55020-0551

$16.03

92015

NUT,RUBBER,6MM

92015-1692

$5.61

92022

WASHER,6.5X16X1

92022-1143

$2.99

92075

DAMPER

92075-015

$3.81

92075A

DAMPER

92075-1634

$3.57

92075B

DAMPER,10X24X12

92075-1690

$3.81

92075C

DAMPER,9X24X14

92075-281

$4.67

92093

SEAL

92093-0583

$7.27

130

BOLT-FLANGED,6X25

130BA0625

$0.97

130A

BOLT-FLANGED,6X30

130BA0630

$1.13

92093A

SEAL,FUEL TANK CAP

92093-1030

$5.93

92151

BOLT,SOCKET,6X30

92151-1605

$1.68

92152

COLLAR

92152-0048

$2.29

92152A

COLLAR

92152-0364

Unavailable

92152B

COLLAR

92152-0424

$5.31

92153

BOLT,SOCKET,6X23

92153-1267

$1.98

92153A

BOLT,FLANGED,5X12

92153-1421

$1.32

92153B

BOLT,SOCKET,5X16

92153-1616

$1.04

92153C

BOLT,FLANGED,6X20

92153-1694

$1.81

92160

DAMPER

92160-1613

$2.84

92161

DAMPER

92161-0365

$4.04

92161A

DAMPER

92161-1481

$12.56

92173

CLAMP

92173-0938

Unavailable

92192B

TUBE,DRAIN

92192-0693

$19.49

92200

WASHER,6.5X20X1.6

92200-0283

$1.08

14069

BREATHER

14069-0703

$5.97

51001B

TANK-COMP-FUEL,P.S.WHITE

51001-0752-25Y

$1,476.05

51026B

COVER TANK,FUEL,P.S.WHITE

51026-0007-25Y

$295.64

92005

FITTING

92005-0096

$7.77

92037

CLAMP,TUBE

92037-147

$5.61

702

TUBE-RUBBER

702A07240

$10.11

92171

CLAMP

92171-0573

$1.20

92171

CLAMP

92171-0573

$1.20

92173A

CLAMP,PIPE

92173-0985

$3.93

92192

TUBE,BREATHER,INNER

92192-0615

$5.80

92192A

TUBE,BREATHER,UPP

92192-0648

$18.44
