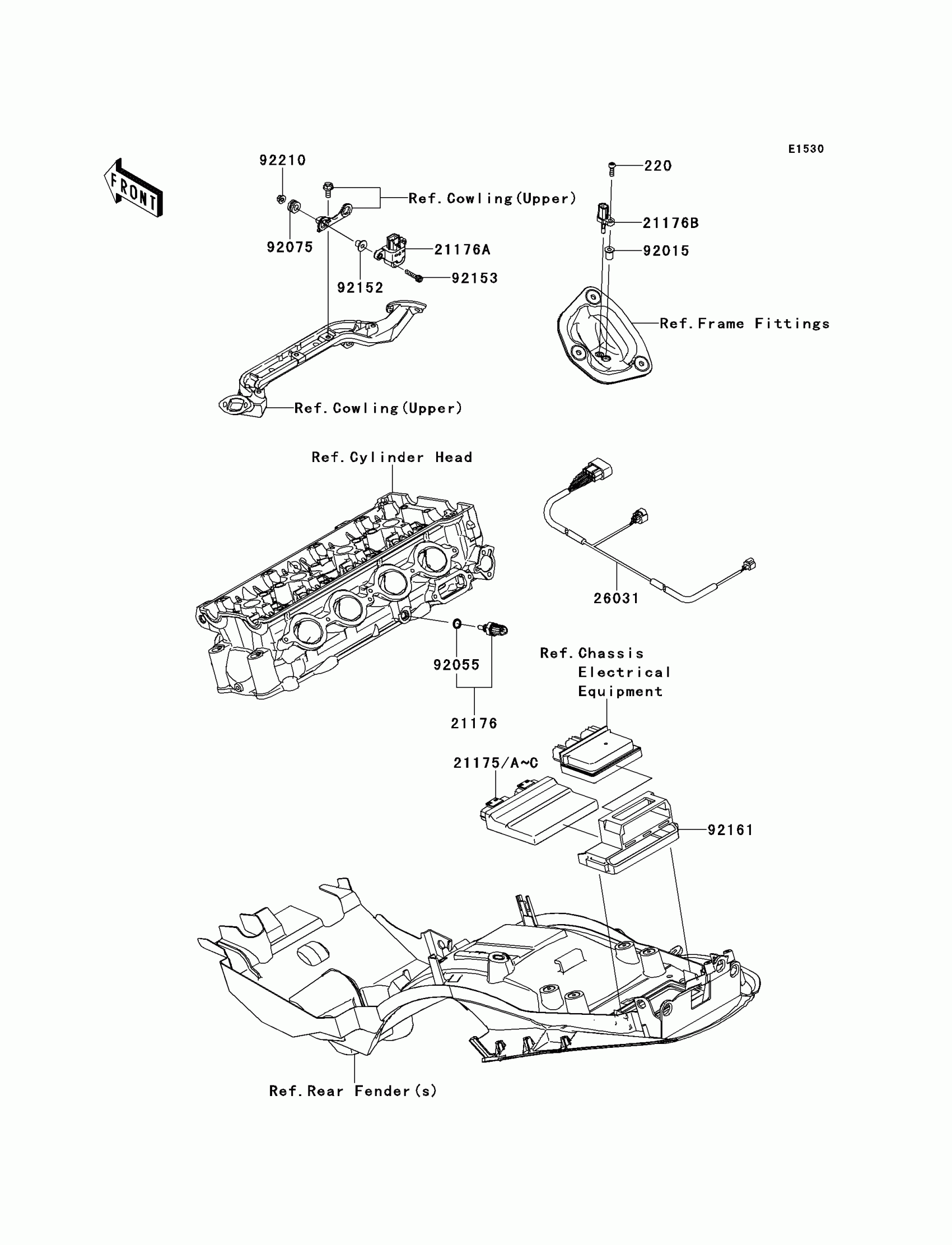

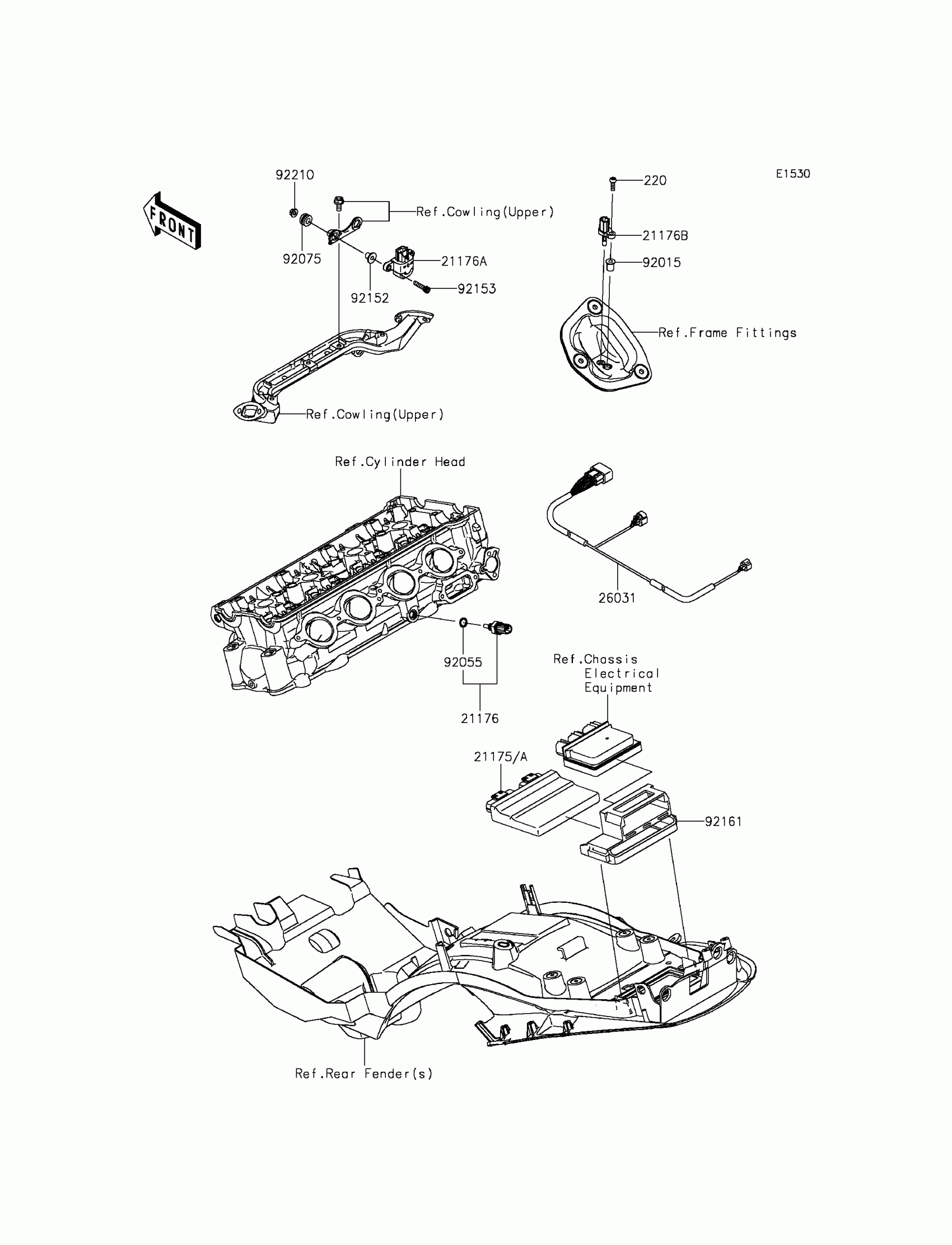

Kawasaki NINJA® ZX™-14R Fuel Injection Diagram

Description

Price

220

SCREW-PAN-CROS,5X18

220AB0518

$2.80

21176

SENSOR,WATER TEMP

21176-0009

$61.96

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$21.77

26031

HARNESS

26031-1221

$71.20

92015

NUT,WELL,5MM

92015-1757

$5.58

92055

RING-O,9.5X1.9

92055-0016

$6.77

92075

DAMPER

92075-1912

$5.07

92152

COLLAR

92152-0329

$7.61

92153

BOLT,SOCKET,5X22

92153-1597

$1.81

92161

DAMPER,ECU

92161-1395

$21.15

92210

NUT,FLANGED,5MM

92210-0007

$1.90

21175B

CONTROL UNIT-ELECTRONIC

21175-0838

$1,248.11

21175C

CONTROL UNIT-ELECTRONIC

21175-0839

$1,248.11
