2013 Kawasaki Ninja® ZX™-14R Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2013 Kawasaki Ninja® ZX™-14R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

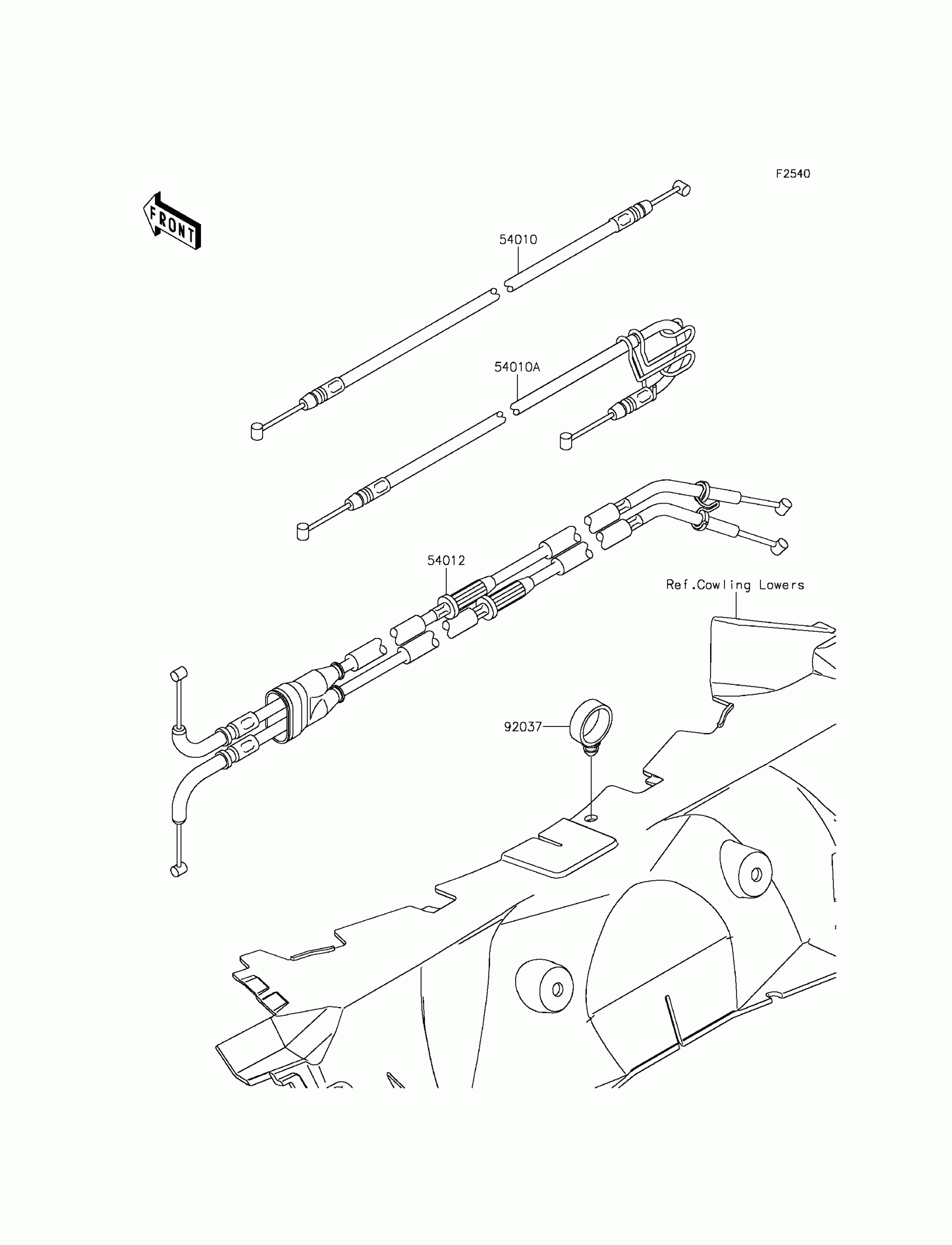

2013 Kawasaki Ninja® ZX™-14R Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

54010

CABLE,SEAT LOCK,RR

54010-0585

1

$11.81

In stock

54010A

CABLE,SEAT LOCK,FR

54010-0589

1

$44.68

In stock

54012

CABLE-THROTTLE

54012-0187

1

$59.93

In stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock
