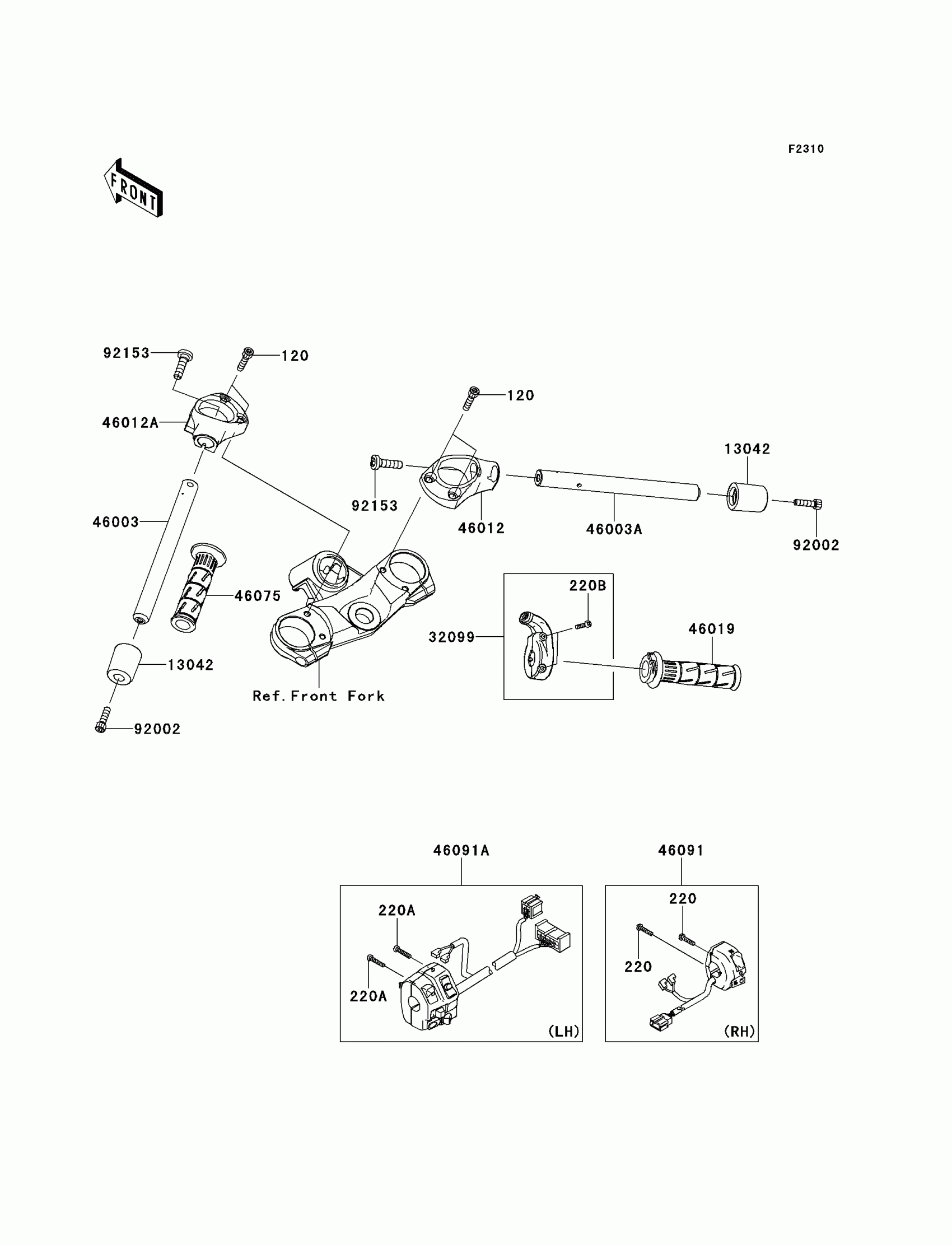

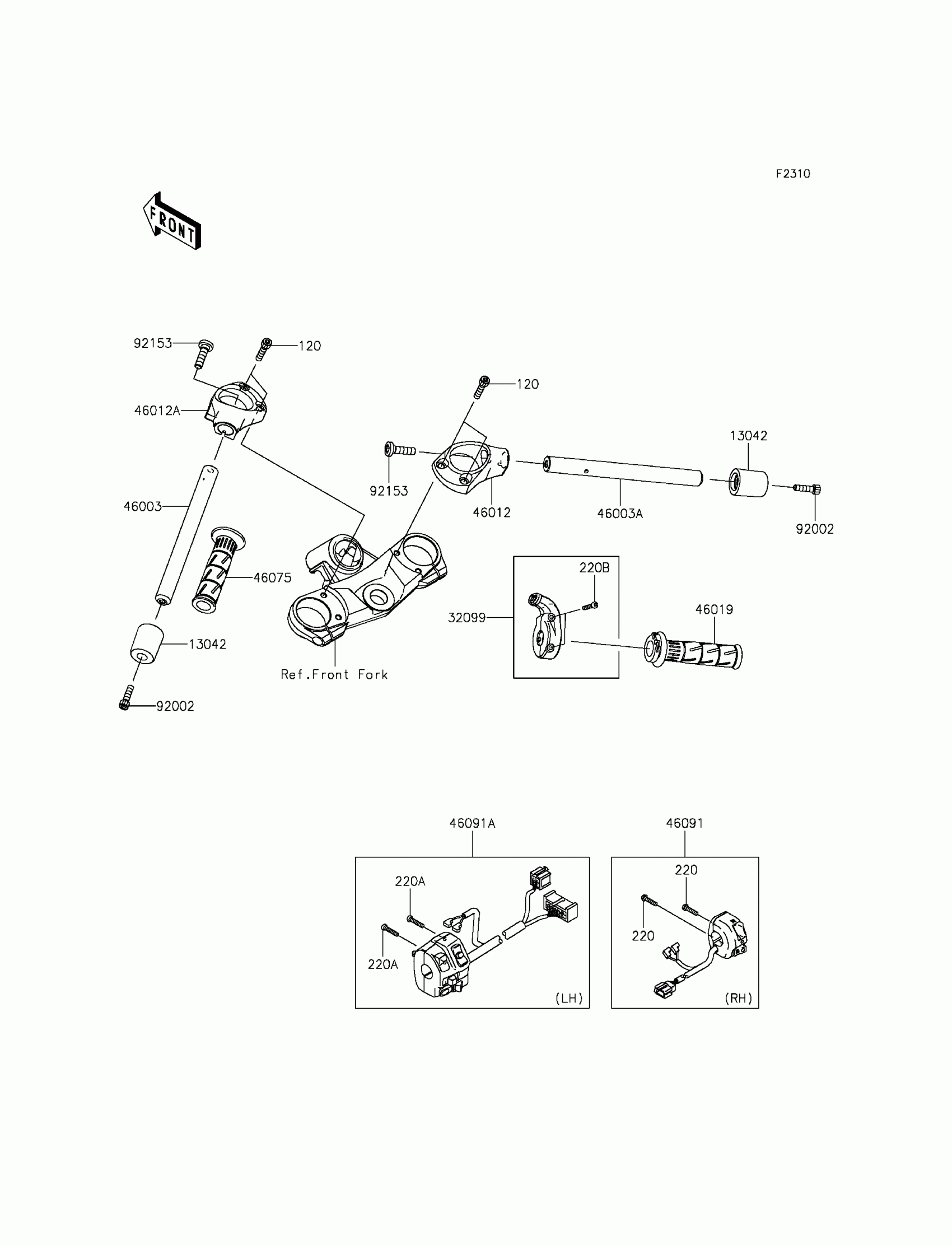

Kawasaki NINJA® ZX™-14R Handlebar Diagram

Description

Price

120

BOLT-SOCKET,8X35

120R0835

$3.01

220

SCREW-PAN-CROS,5X22

220AB0522

$0.89

220A

SCREW-PAN-CROS,5X25

220AB0525

$2.66

220B

SCREW-PAN-CROS,5X35

220AB0535

$1.49

13042

WEIGHT,HANDLE

13042-5006

$52.69

32099

CASE,THROTTLE

32099-0049

$25.10

46003

HANDLE,LH

46003-0564

$204.72

46003A

HANDLE,RH

46003-0565

$191.64

46012

HOLDER-HANDLE,RH

46012-0316

$91.54

46012A

HOLDER-HANDLE,LH

46012-0317

$91.54

46019

GRIP-ASSY,THROTTLE

46019-0001

$37.15

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46091

HOUSING-ASSY-CONTROL,RH

46091-0145

$173.13

46091A

HOUSING-ASSY-CONTROL,LH

46091-0241

Unavailable

92002

BOLT,SOCKET,8X30

92002-1844

Unavailable

92153

BOLT,SOCKET,10X37

92153-1440

$5.91
