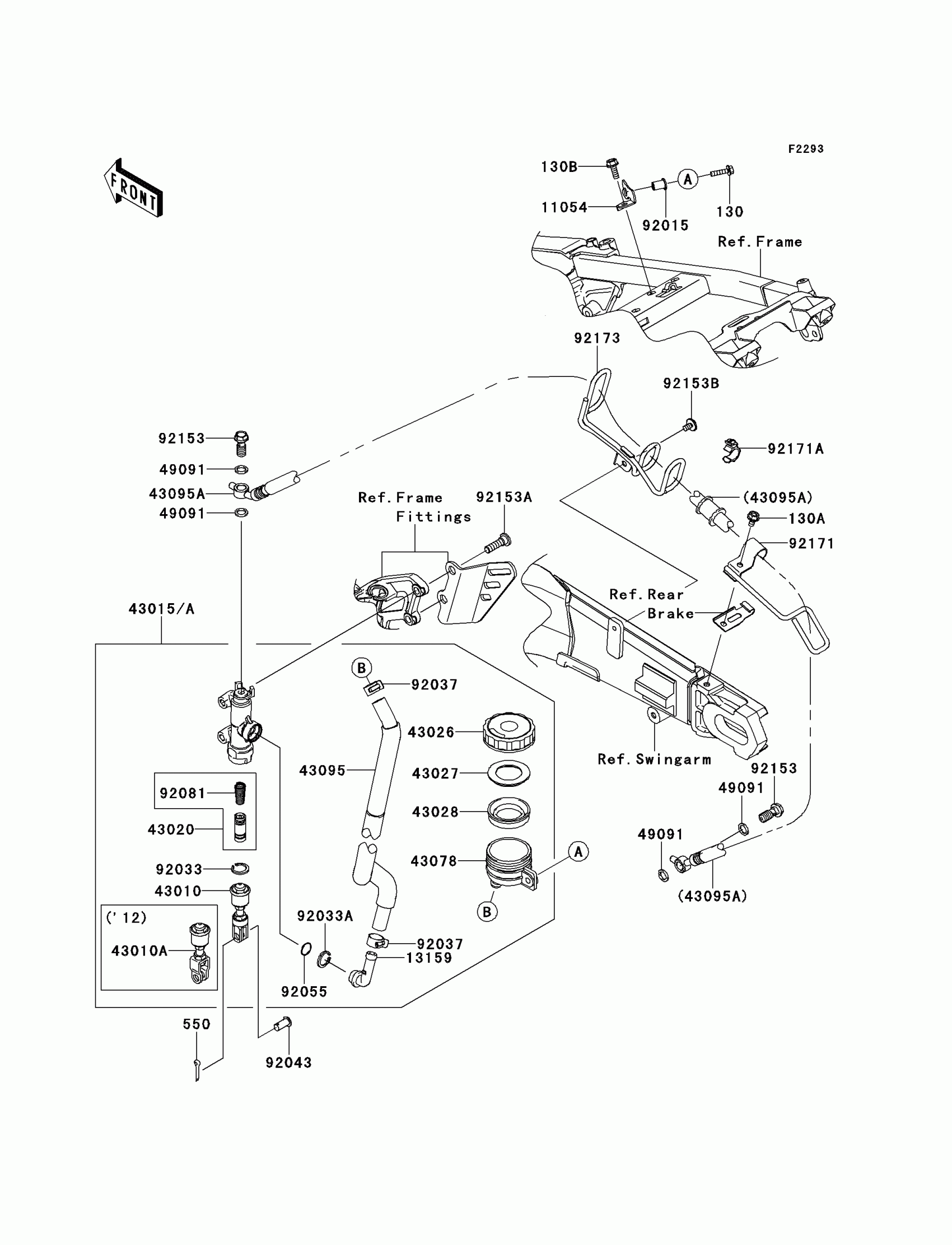

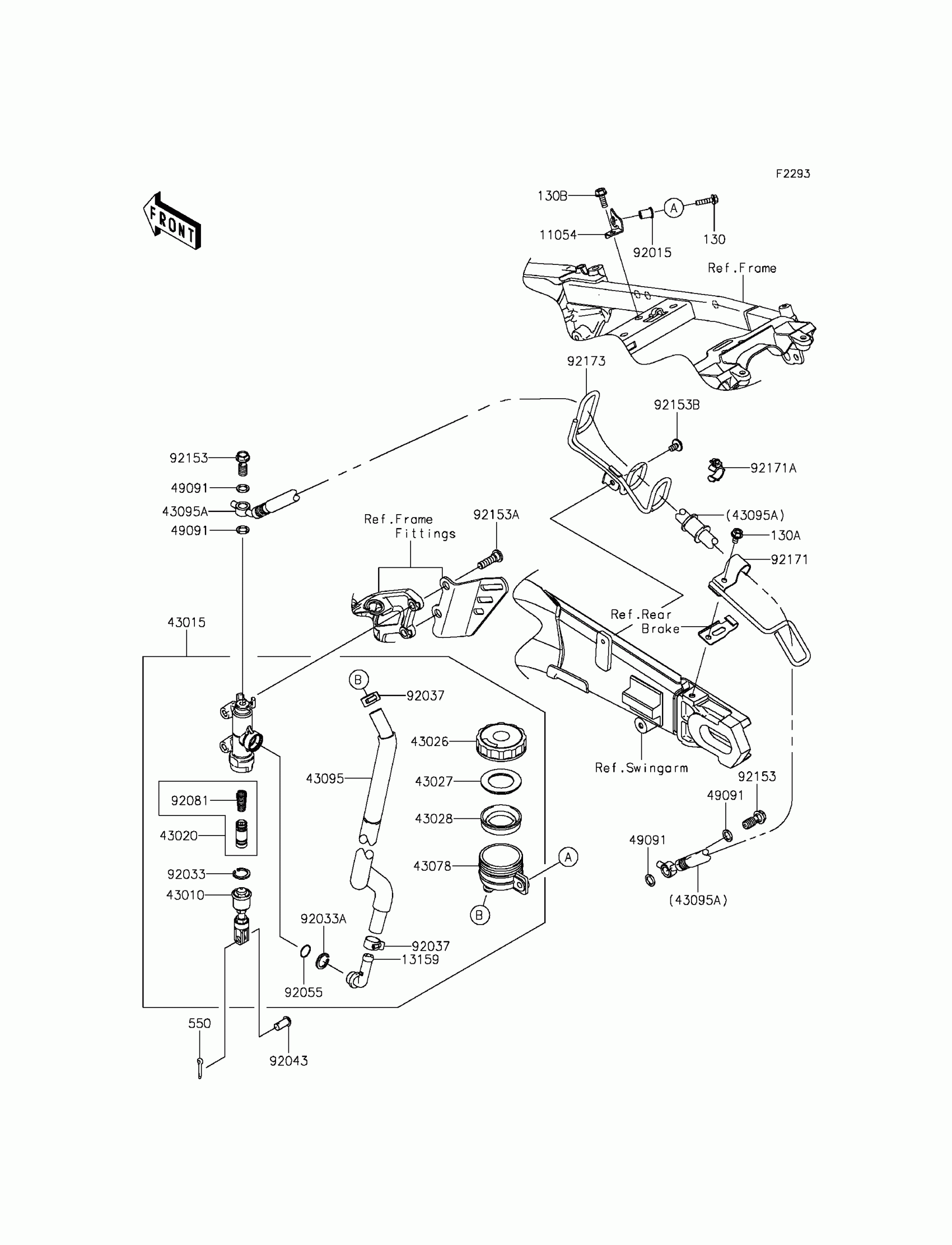

Kawasaki NINJA® ZX™-14R Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,5X20

130BA0520

$0.79

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X16

130BA0616

$0.97

550

PIN-COTTER,2.0X15

550AA2015

$0.90

11054

BRACKET,RESERVOIR TANK,RR

11054-0184

$7.90

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-0012

$72.46

43015A

CYLINDER-ASSY-MASTER,RR

43015-0584

$419.59

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0235

$21.76

43095A

HOSE-BRAKE,RR

43095-0401

$138.15

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92015

NUT,WELL,5MM

92015-1757

$5.58

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92043

PIN,8X17

92043-0104

$2.98

92055

RING-O,14.8X2.4

92055-0741

$2.82

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92153

BOLT,OIL,L=23

92153-0627

$4.15

92153A

BOLT,SOCKET,8X30

92153-1624

$2.98

92153B

BOLT,SOCKET,6X10

92153-1628

$1.53

92171

CLAMP,BRAKE HOSE,RR

92171-0553

$12.95

92171A

CLAMP,BRAKE HOSE

92171-1703

$4.14

92173

CLAMP

92173-0989

$48.41
