2014 Kawasaki Ninja® ZX™-14R ABS Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2014 Kawasaki Ninja® ZX™-14R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

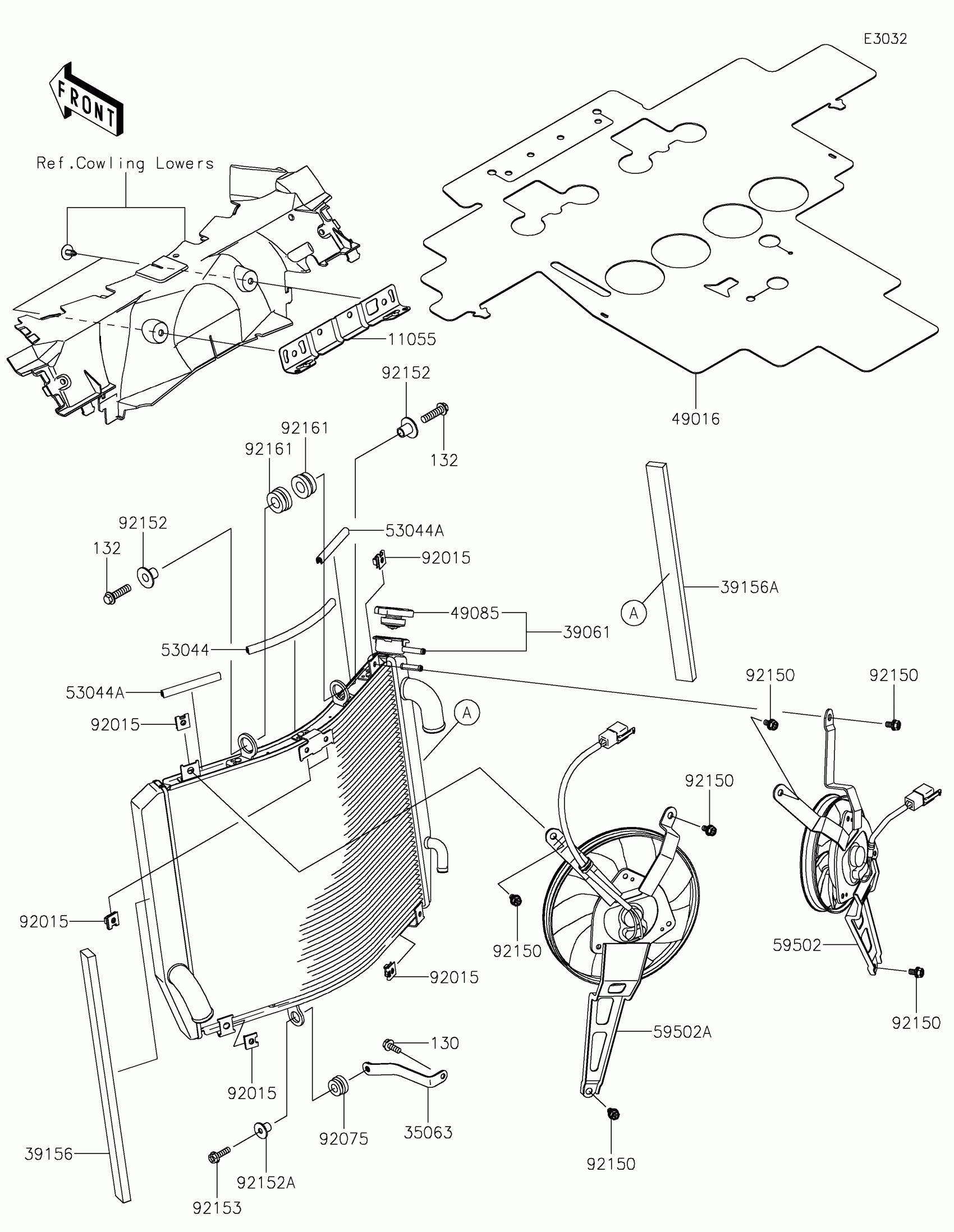

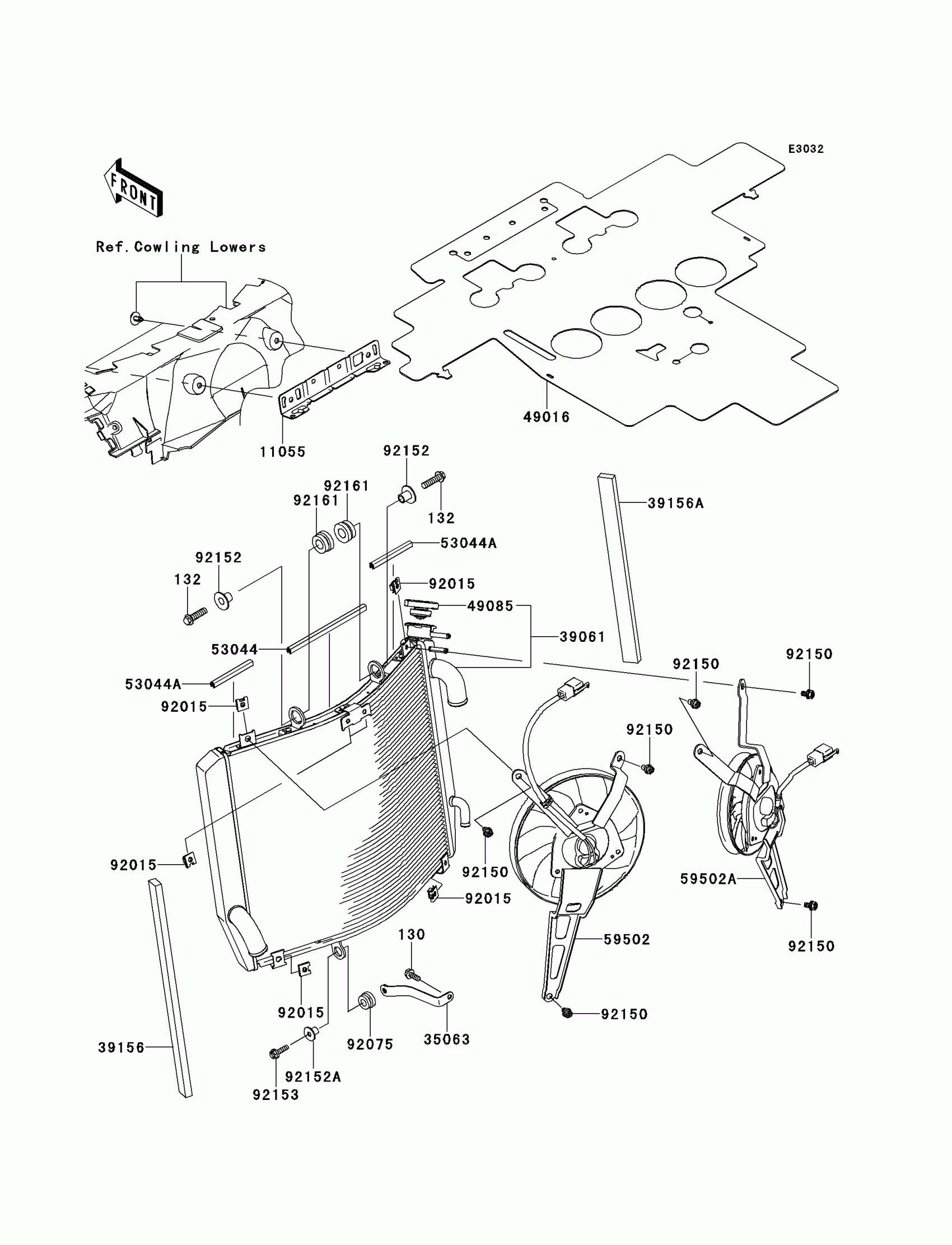

2014 Kawasaki Ninja® ZX™-14R ABS Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130CC0616

1
Out of stock

132

BOLT-FLANGED-SMALL,8X30

132BC0830

1
Out of stock

11055

BRACKET

11055-1484

1
Out of stock

35063

STAY

35063-0661

1
Out of stock

39061

RADIATOR-ASSY

39061-0107

1
Out of stock

39156

PAD,RAD. LH

39156-0873

1
Out of stock

39156A

PAD,RAD. RH

39156-0874

1
Out of stock

49016

COVER-SEAL

49016-0589

1
Out of stock

49085

CAP-ASSY-PRESSURE

49085-1066

1
Out of stock

53044

TRIM

53044-0016

1
Out of stock

53044A

TRIM

53044-0018

1
Out of stock

59502

FAN-ASSY,LH

59502-0559

1
Out of stock

59502A

FAN-ASSY,RH

59502-0562

1
Out of stock

92015

NUT

92015-1487

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92150

BOLT,6X12

92150-1186

1
Out of stock

92152

COLLAR

92152-0439

1
Out of stock

92152A

COLLAR

92152-0440

1
Out of stock

92153

BOLT,FLANGED,6X22

92153-1598

1
Out of stock

92161

DAMPER

92161-0304

1
Out of stock
