2014 Kawasaki Ninja® ZX™-14R ABS Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2014 Kawasaki Ninja® ZX™-14R ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

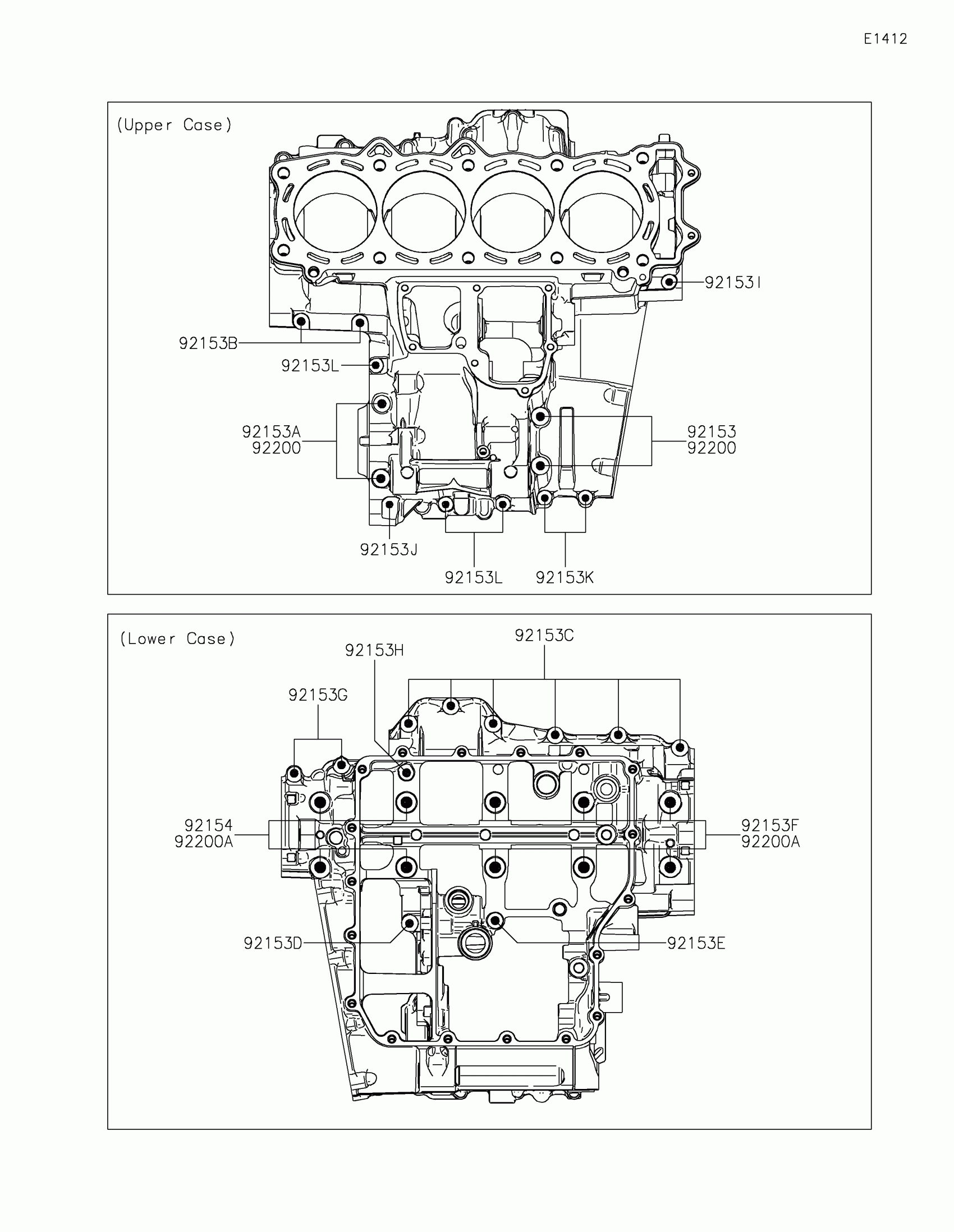

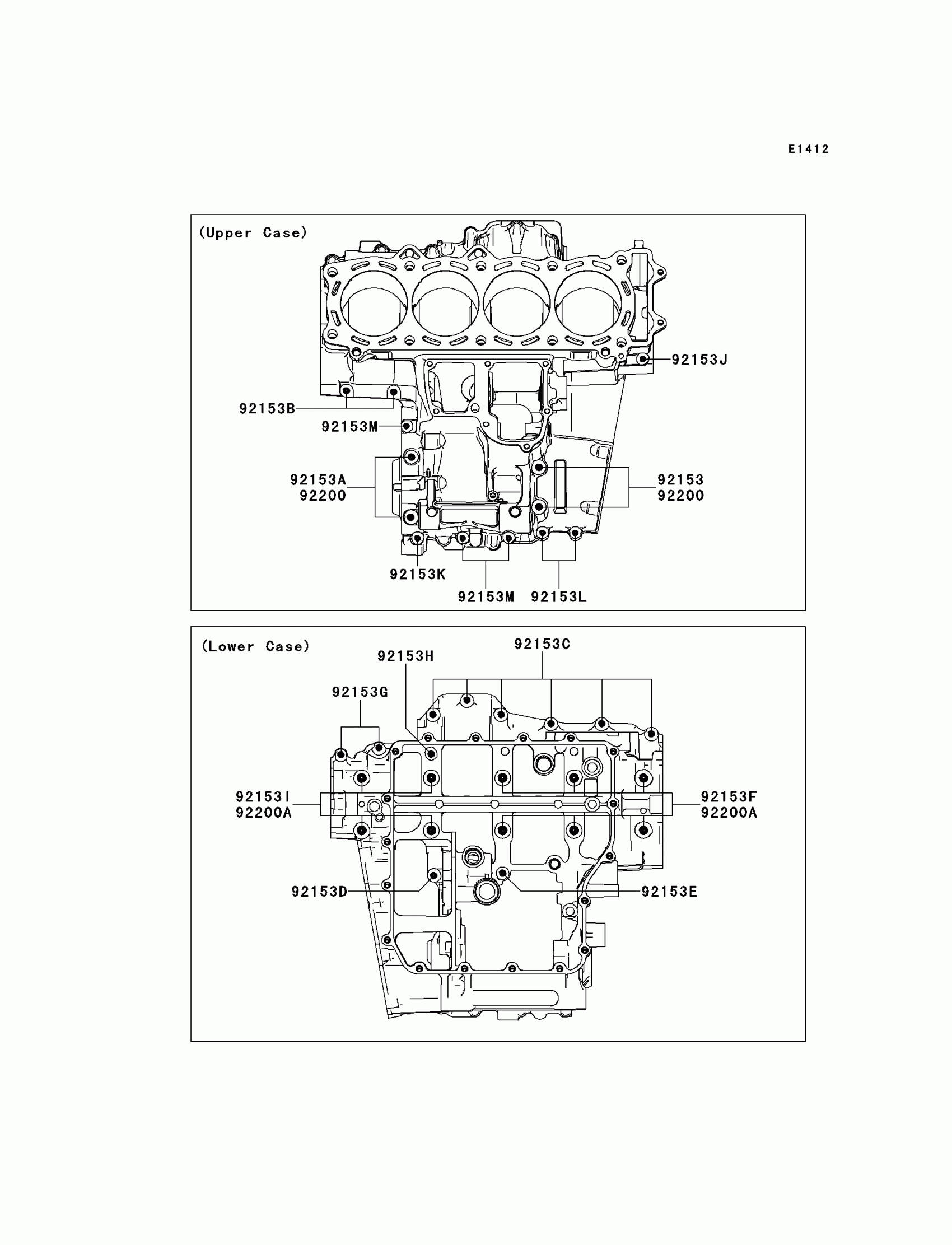

2014 Kawasaki Ninja® ZX™-14R ABS Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

92153

BOLT,FLANGED,8X80

92153-1035

1
Out of stock

92153A

BOLT,FLANGED,8X70

92153-1036

1
Out of stock

92153B

BOLT,FLANGED,7X65

92153-1040

1
Out of stock

92153C

BOLT,FLANGED,7X45

92153-1041

1
Out of stock

92153D

BOLT,FLANGED,7X50

92153-1042

1
Out of stock

92153E

BOLT,FLANGED,7X85

92153-1043

1
Out of stock

92153F

BOLT,FLANGED,10X90

92153-1044

1
Out of stock

92153G

BOLT,FLANGED,7X60

92153-1045

1
Out of stock

92153H

BOLT,FLANGED,7X110

92153-1046

1
Out of stock

92153I

BOLT,FLANGED,10X120

92153-1047

1
Out of stock

92153J

BOLT,FLANGED,6X65

92153-1567

1
Out of stock

92153K

BOLT,FLANGED,6X50

92153-1568

1
Out of stock

92153L

BOLT,FLANGED,6X25

92153-1569

1
Out of stock

92153M

BOLT,FLANGED,6X40

92153-1570

1
Out of stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92200A

WASHER,10.5X19X2.3

92200-0257

1
Out of stock
