2011 Kawasaki Ninja® ZX™-14 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2011 Kawasaki Ninja® ZX™-14, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

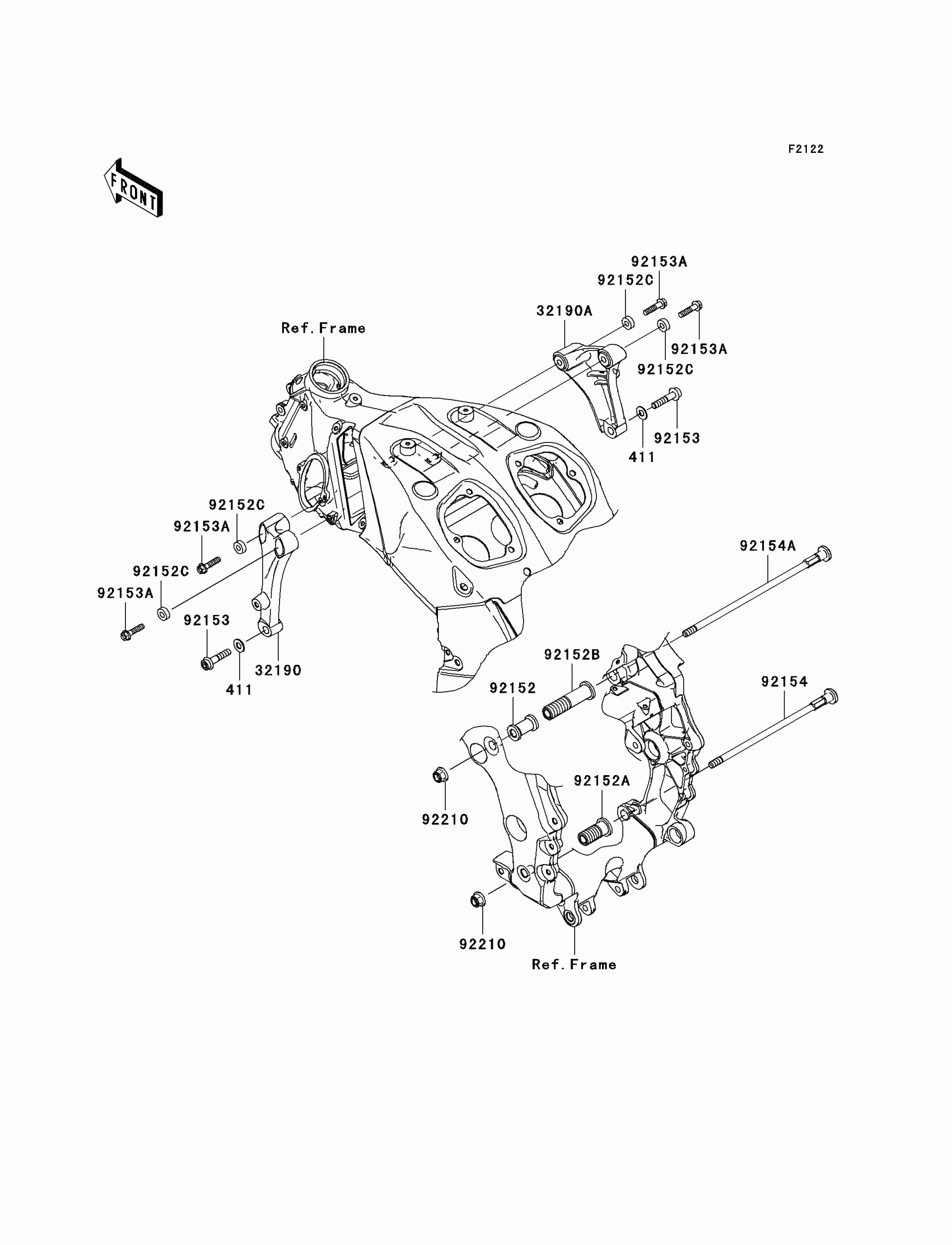

2011 Kawasaki Ninja® ZX™-14 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock

32190

BRACKET-ENGINE,FR,LH

32190-0424

1
Out of stock

32190A

BRACKET-ENGINE,FR,RH

32190-0425

1
Out of stock

92152

COLLAR,L=43.2

92152-0368

1
Out of stock

92152A

COLLAR,ADJUST,RR,LWR

92152-0370

1
Out of stock

92152B

COLLAR,ADJUST,RR,UPP

92152-0371

1
Out of stock

92152C

COLLAR,8.8X20X7

92152-0502

1
Out of stock

92153

BOLT,SOCKET,10X45

92153-1769

1
Out of stock

92153A

BOLT,FLANGED,8X35

92153-1770

1
Out of stock

92154

BOLT,SOCKET,12X268

92154-0089

1
Out of stock

92154A

BOLT,SOCKET,12X312

92154-0090

1
Out of stock

92210

NUT,LOCK,FLANGED,12MM

92210-0287

1
Out of stock
