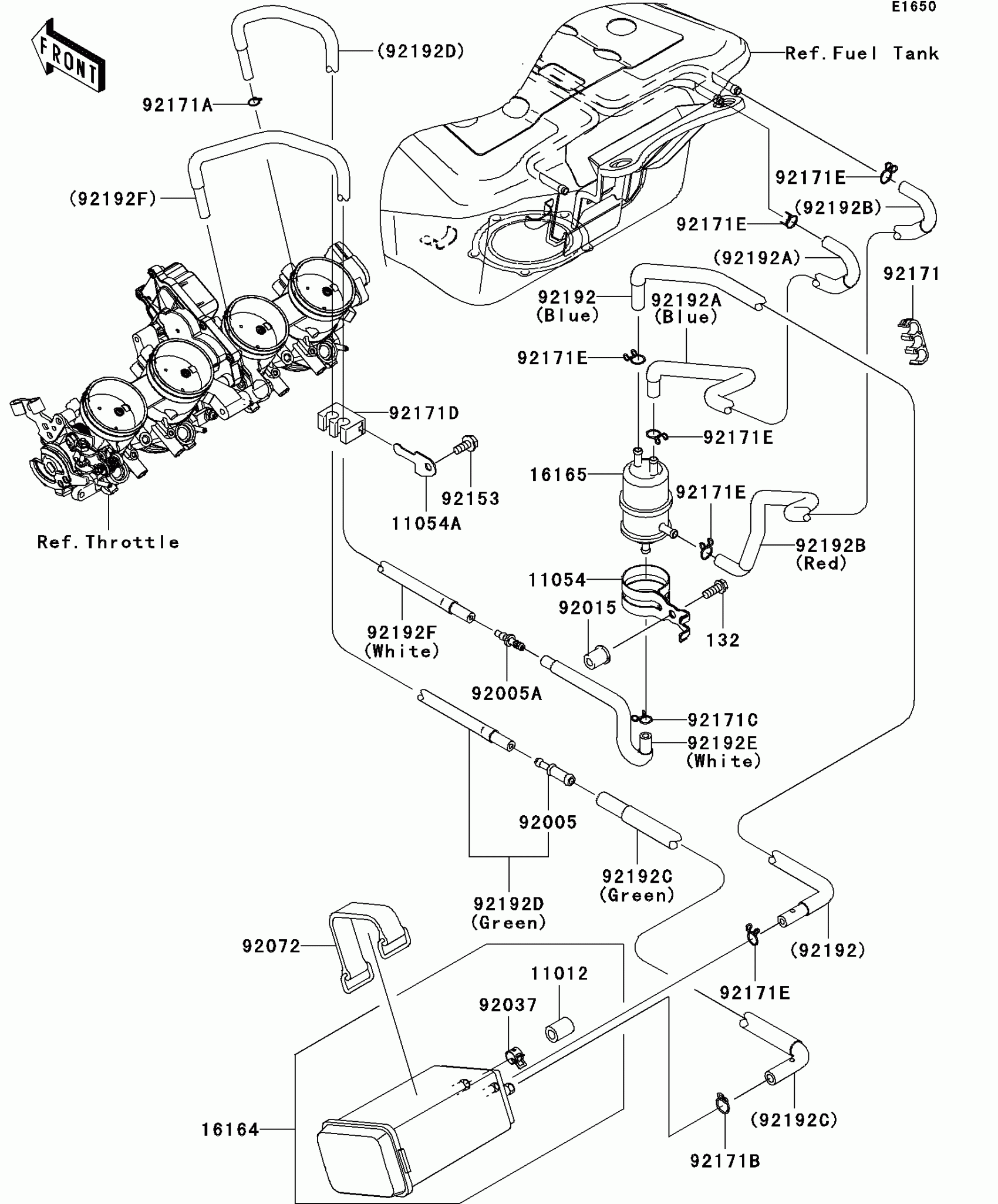

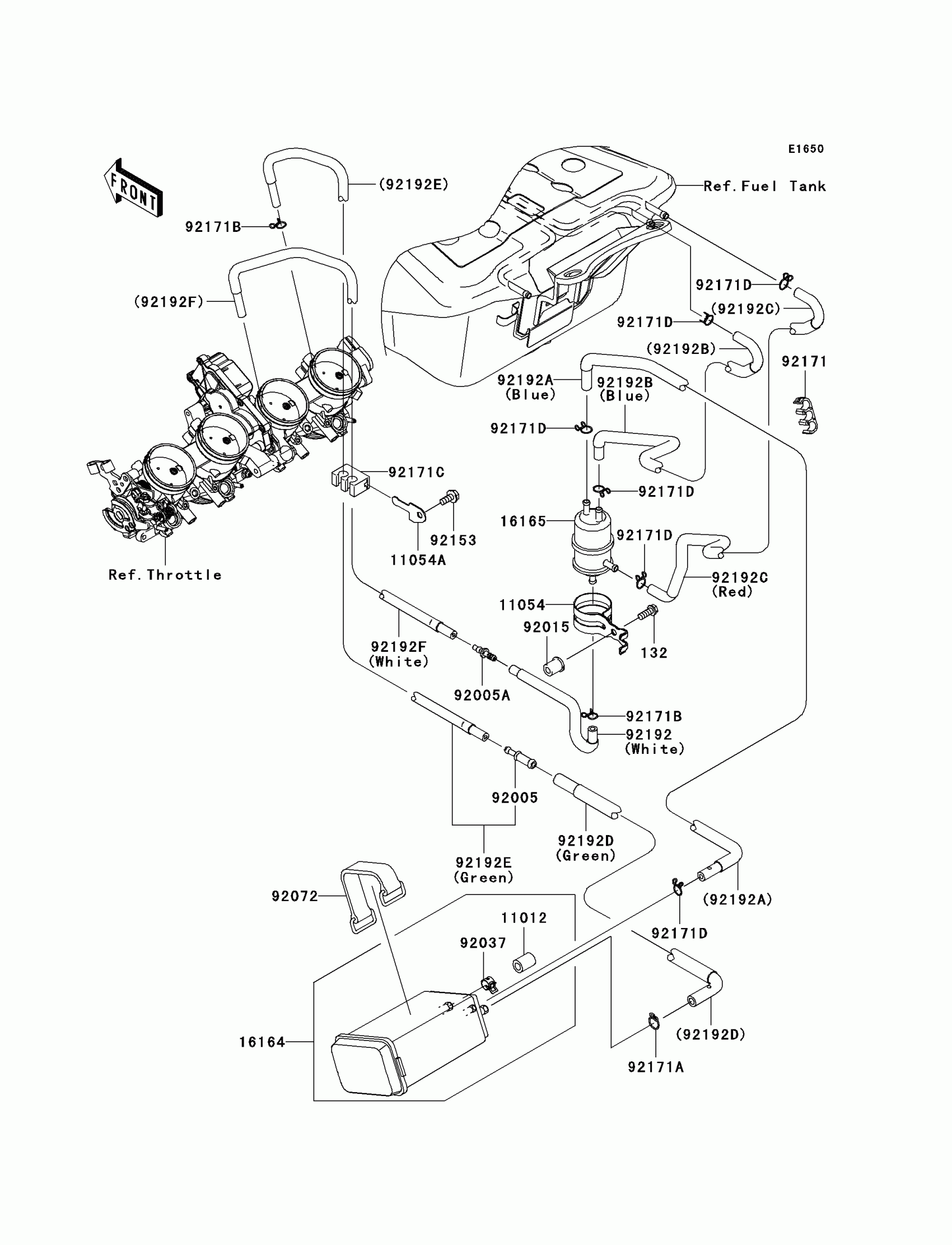

Kawasaki Ninja® ZX™-14 Fuel Evaporative System(CA) Diagram

Description

Price

11012

CAP,CANISTER

11012-1388

$8.31

11054

BRACKET

11054-0197

$14.71

11054A

BRACKET

11054-0464

$15.93

16164

CANISTER

16164-1054

$132.79

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING

92005-0032

$4.92

92005A

FITTING

92005-1206

$6.62

92015

NUT

92015-1700

$6.55

92037

CLAMP,CANISTER

92037-1512

$5.71

92072

BAND

92072-0050

$11.84

92153

BOLT,FLANGED,6X14

92153-1571

$1.81

92171

CLAMP

92171-0334

$4.42

92171A

CLAMP

92171-0573

$1.20

92171B

CLAMP

92171-0574

$2.51

92171C

CLAMP

92171-0576

$3.81

92171D

CLAMP

92171-0693

$11.42

92171E

CLAMP

92171-0718

$1.81

92192

TUBE,CANISTER-SEPARATOR,BLUE

92192-0284

$32.48

92192A

TUBE,SEPARATOR-TANK,BLUE

92192-0285

$21.71

92192B

TUBE,TANK-SEPARATOR SIDE,RED

92192-0286

$25.86

92192C

TUBE,CANISTER-FITTING,GREEN

92192-0288

$37.50

92192D

TUBE,THROBO #4-GREEN TUBE

92192-0328

$37.50

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

92192E

TUBE,SEPARATOR-FITTING,WHITE

92192-0329

$15.19

92192F

TUBE,THROBO #3-FITTING,WHITE

92192-0373

$37.50
