1993 Kawasaki Ninja® ZX™-11 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

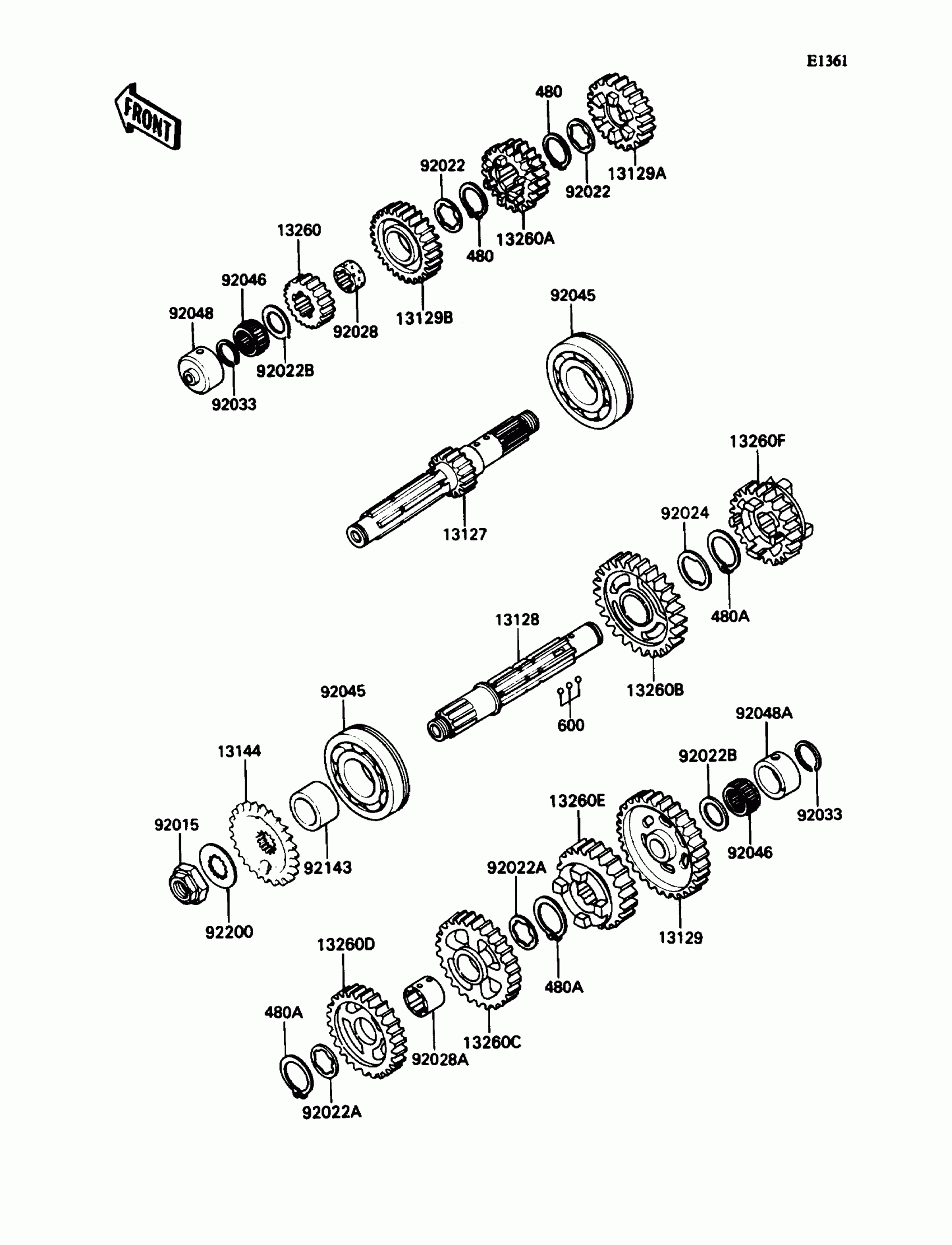

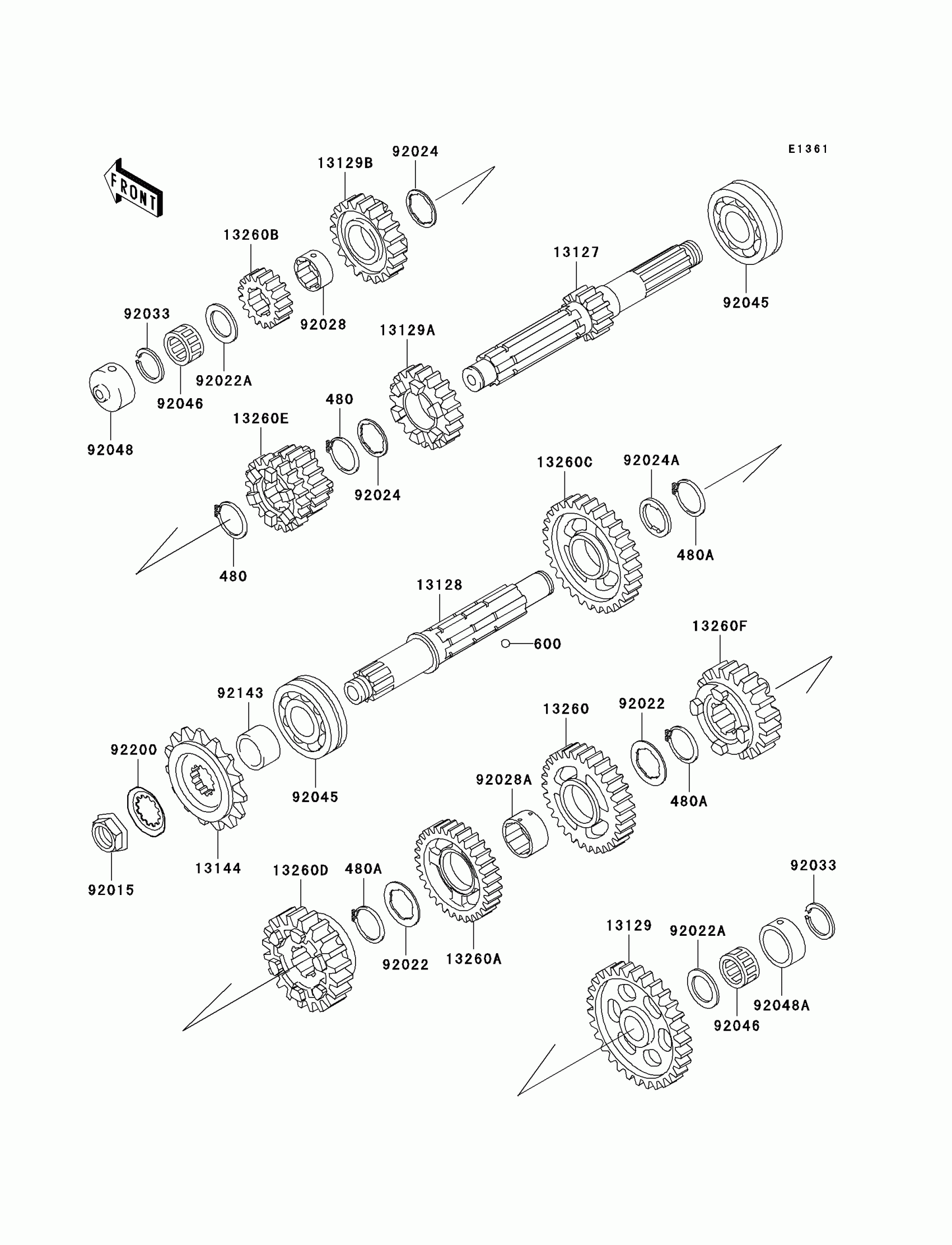

1993 Kawasaki Ninja® ZX™-11 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1196

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1174

1
Out of stock

13129

GEAR,OUTPUT LOW,42T

13129-1534

1
Out of stock

13129A

GEAR,INPUT 5TH,26T

13129-1665

1
Out of stock

13129B

GEAR,INPUT TOP,28T

13129-1666

1
Out of stock

13144

SPROCKET-OUTPUT,17T

13144-1162

1
Out of stock

13260

GEAR,INPUT 2ND,19T

13260-1120

1
Out of stock

13260A

GEAR,INPUT 3RD&4TH,22T&24T

13260-1121

1
Out of stock

13260B

GEAR,OUTPUT 2ND,38T

13260-1137

1
Out of stock

13260C

GEAR,OUTPUT 3RD,35T

13260-1138

1
Out of stock

13260D

GEAR,OUTPUT 4TH,32T

13260-1139

1
Out of stock

13260E

GEAR,OUTPUT 5TH,30T

13260-1201

1
Out of stock

13260F

GEAR,OUTPUT TOP,29T

13260-1264

1
Out of stock

92015

NUT,20MM

92015-1210

1
Out of stock

92022

WASHER,TOOTHED,26X35.5X1.5

92022-1077

1
Out of stock

92022A

WASHER,TOOTHED,28X40X1.8

92022-1728

1
Out of stock

92022B

WASHER,22.3X35X1.6

92022-212

1
Out of stock

92024

WASHER,TOOTHED,30.5X38X1

92024-069

1
Out of stock

92028

BUSHING,TOP GEAR

92028-1124

1
Out of stock

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92045

BEARING-BALL

92045-1186

1
Out of stock

92046

BEARING-NEEDLE,FWF-223014

92046-031

1
Out of stock

92048

RACE,INPUT SHAFT

92048-1052

1
Out of stock

92048A

RACE,30X38X15

92048-1053

1
Out of stock

92143

COLLAR

92143-1431

1
Out of stock

92200

WASHER,TOOTHED,23.9X45X1.0

92200-1234

1
Out of stock

480

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

480A

CIRCLIP

480J2900

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock
