1993 Kawasaki Ninja® ZX™-11 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1993 Kawasaki Ninja® ZX™-11, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

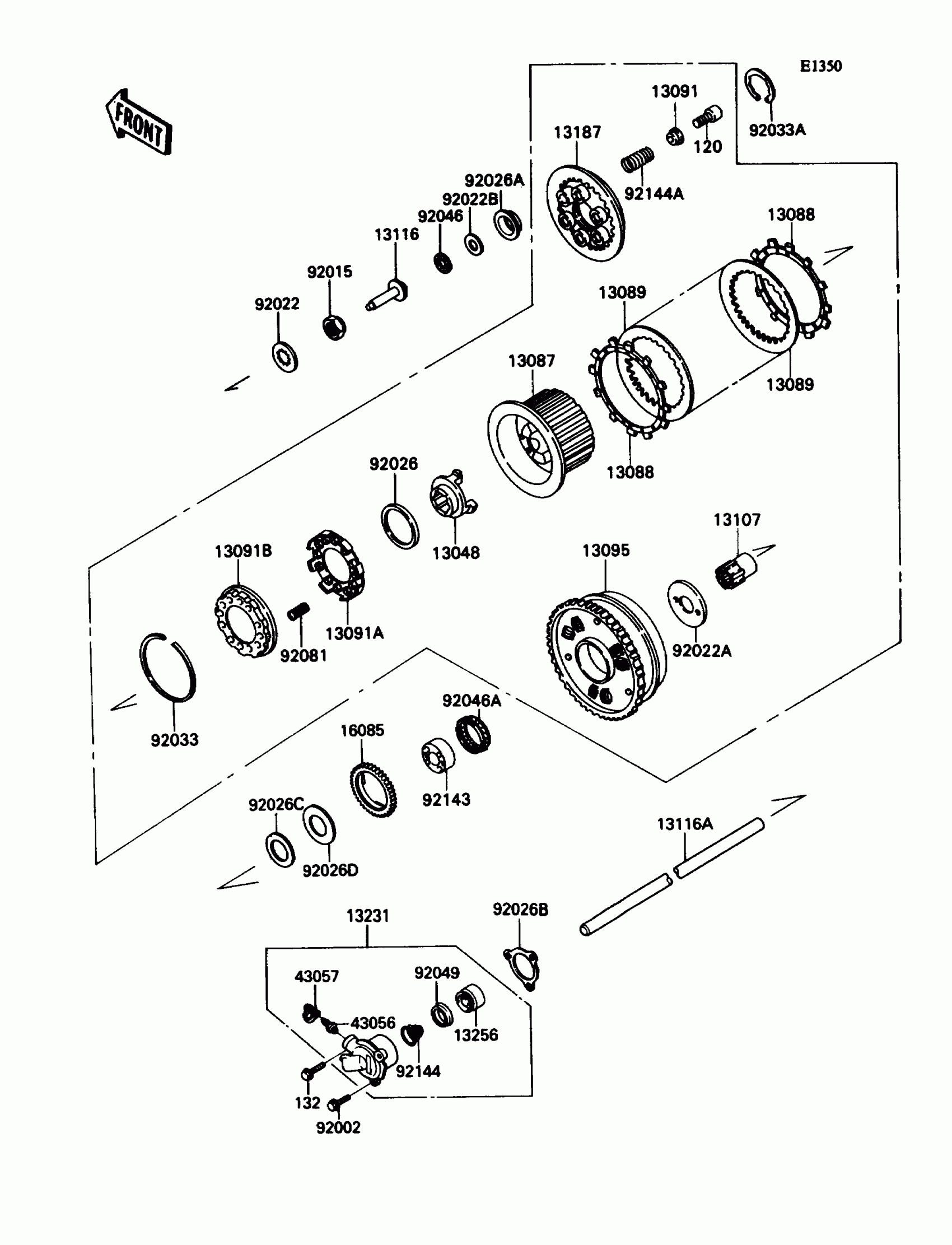

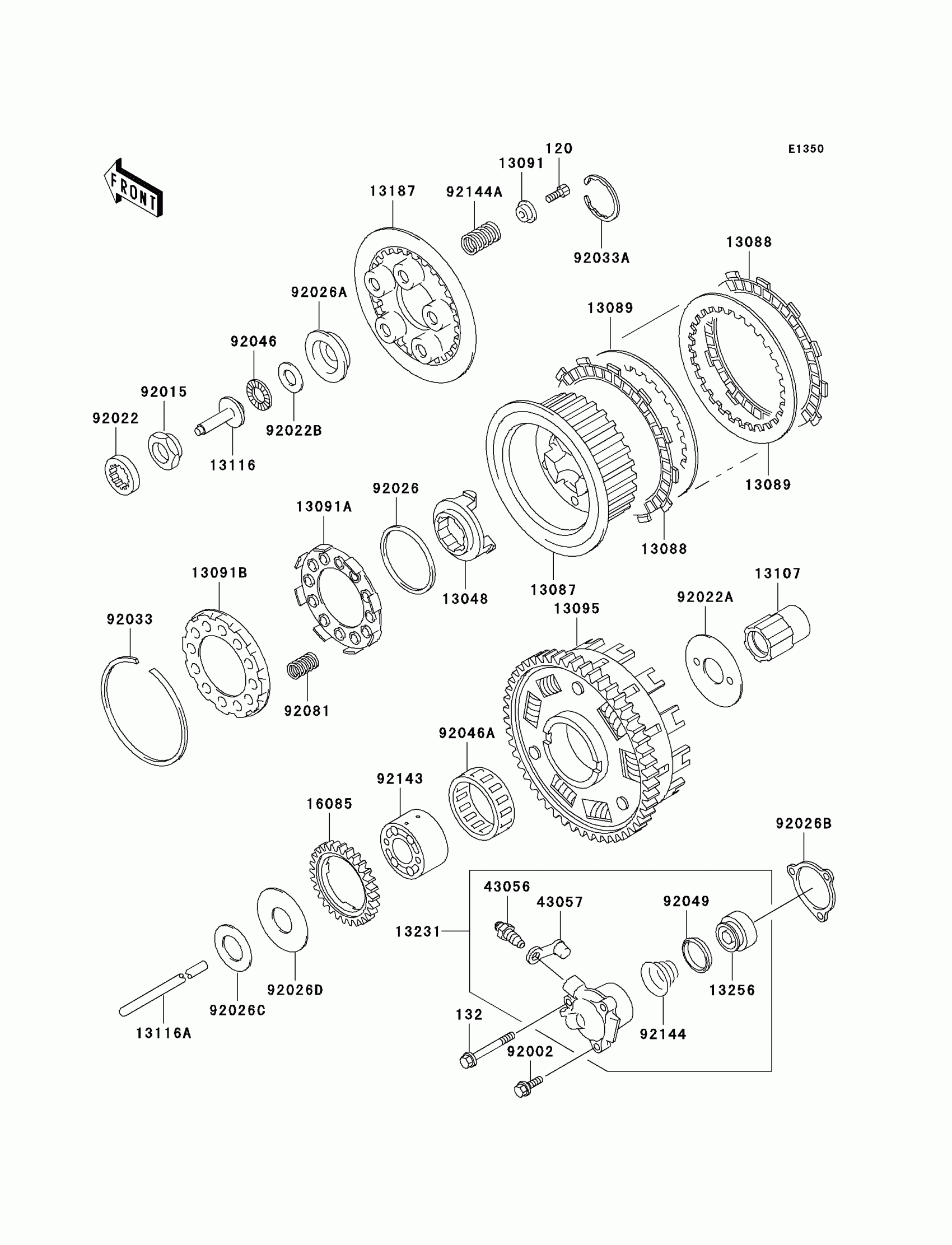

1993 Kawasaki Ninja® ZX™-11 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13048

CAM-DAMPER

13048-1007

1
Out of stock

13087

HUB-CLUTCH

13087-1121

1
Out of stock

13088

PLATE-FRICTION

13088-1083

1
Out of stock

13089

PLATE-CLUTCH

13089-1092

1
Out of stock

13091

HOLDER,CLUTCH SPRING

13091-1041

1
Out of stock

13091A

HOLDER,DAMPER SPRING,RH

13091-1042

1
Out of stock

13091B

HOLDER,DAMPER SPRING,LH

13091-1043

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-1216

1
Out of stock

13107

SHAFT,CLUTCH

13107-1299

1
Out of stock

13116

ROD-PUSH,CLUTCH

13116-1102

1
Out of stock

13116A

ROD-PUSH,CLUTCH

13116-1140

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-1069

1
Out of stock

13231

RELEASE-ASSY-CLUTCH

13231-1067

1
Out of stock

13256

PISTON

13256-1052

1
Out of stock

16085

GEAR,OIL PUMP,37T

16085-1235

1
Out of stock

43056

BREATHER

43056-1052

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

92002

BOLT,6X25

92002-1344

1
Out of stock

92015

NUT,20MM

92015-1555

1
Out of stock

92022

WASHER,TOOTHED,25X40X5

92022-1114

1
Out of stock

92022A

WASHER,CLUTCH THRUST

92022-1221

1
Out of stock

92022B

WASHER,15.1X29X1.0

92022-1463

1
Out of stock

92026

SPACER,59X70X3.5

92026-1043

1
Out of stock

92026A

SPACER,CLUTCH

92026-1202

1
Out of stock

92026B

SPACER,CLUTCH RELEASE

92026-1263

1
Out of stock

92026C

SPACER,25X45X2.0

92026-1306

1
Out of stock

92026D

SPACER,25X62X2.0

92026-1307

1
Out of stock

92033

RING-SNAP

92033-1029

1
Out of stock

92033A

RING-SNAP,50MM

92033-1177

1
Out of stock

92046

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92046A

BEARING-NEEDLE,K550X62X18

92046-1200

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92081

SPRING,CLUTCH DAMPER

92081-1115

1
Out of stock

92143

COLLAR,CLUTCH

92143-1429

1
Out of stock

92144

SPRING,CLUTCH RELEASE

92144-1084

1
Out of stock

92144A

SPRING,CLUTCH

92144-1473

1
Out of stock

120

BOLT-SOCKET,6X25

120Q0625

1
Out of stock

132

BOLT-FLANGED-SMALL

132J0680

1
Out of stock
