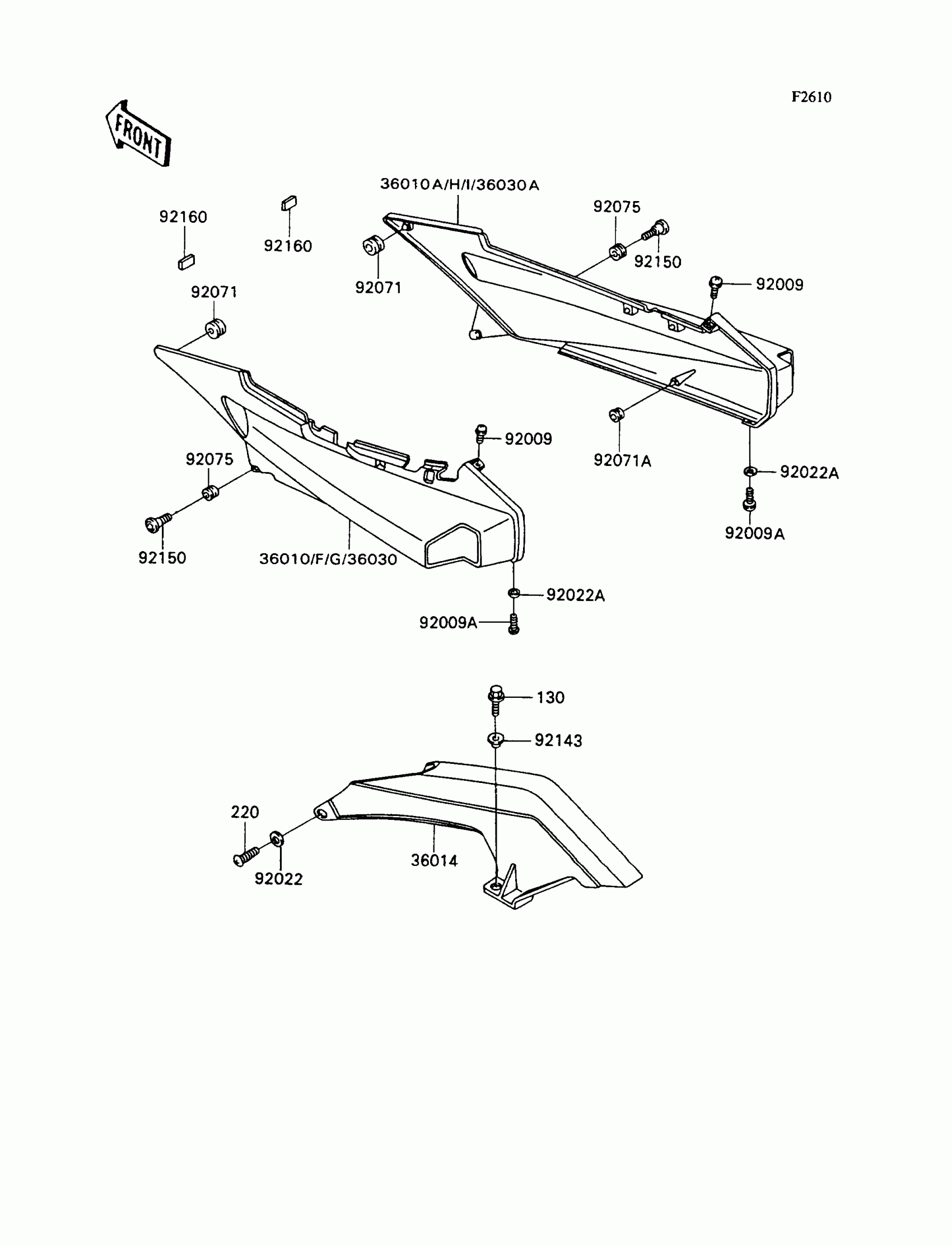

Kawasaki Ninja® ZX™-11 Side Cover/Chain Case Diagram

Description

Price

36014

CASE-CHAIN

36014-1170

Unavailable

36030

COVER-SIDE,LH,EBONY

36030-5029-H8

$538.84

36030A

COVER-SIDE,RH,EBONY

36030-5030-H8

$538.84

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW,5X20,BLACK

92009-1656

$3.03

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022A

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92071

GROMMET

92071-056

$3.25

92071A

GROMMET

92071-1131

$5.93

92075

DAMPER

92075-1634

$3.57

92143

COLLAR,L=6.6

92143-1088

$4.68

92150

BOLT,SOCKET,6MM

92150-1154

$5.99

92160

DAMPER

92160-1190

$3.12

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

220

SCREW-PAN-CROS,6X16,BLACK

220C0616

Unavailable
