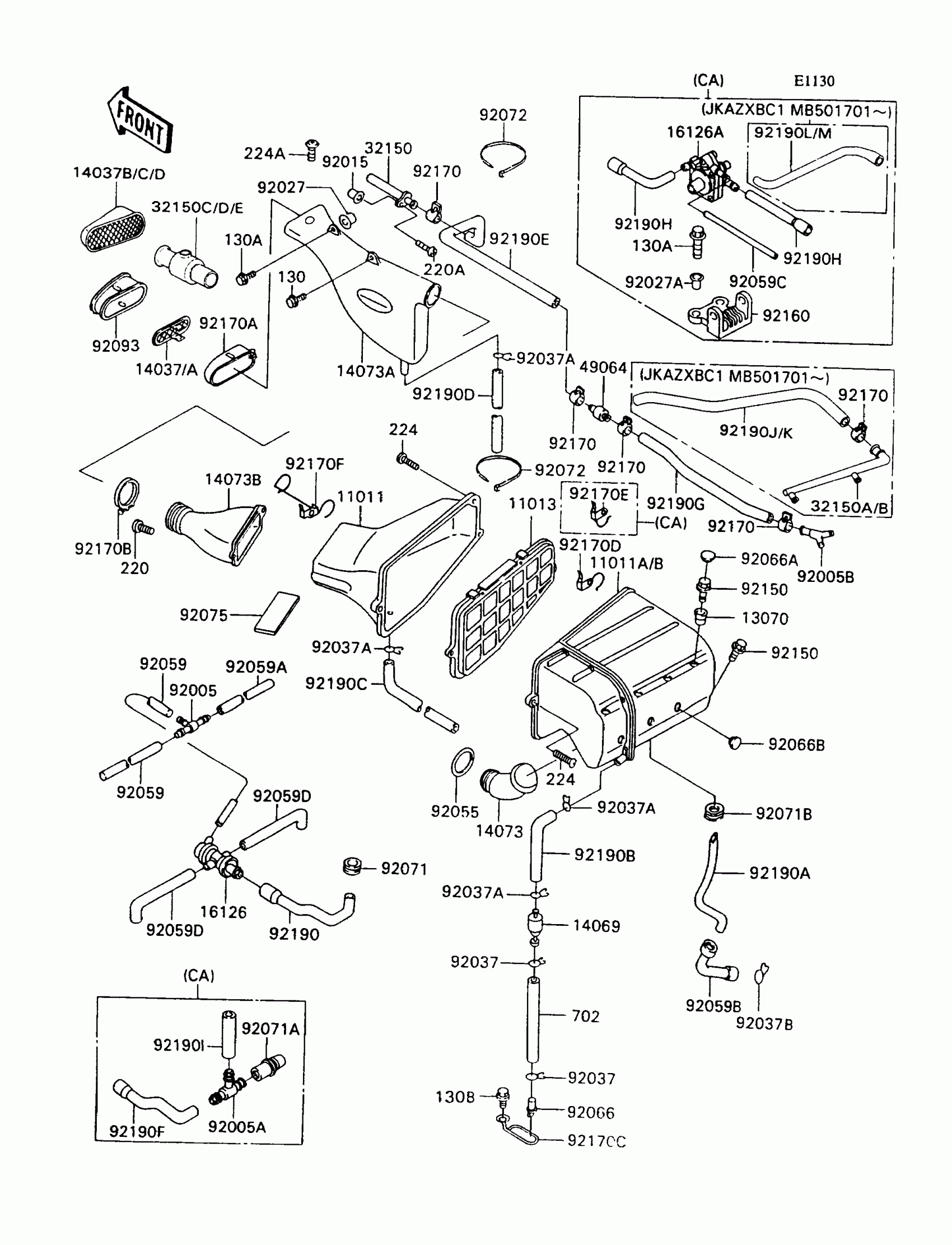

Kawasaki Ninja® ZX™-11 Air Filter(4/4) Diagram

#

Description
Price

11011

CASE-AIR FILTER,DIRT SIDE

11011-1318

Unavailable

11011A

CASE-AIR FILTER,CLEAN SIDE

11011-1325

Unavailable

11013

ELEMENT-AIR FILTER

11013-1188

Unavailable

13070

GUIDE,AIR FILTER

13070-1230

Unavailable

14037B

SCREEN,AIR DUCT

14037-1144

$15.69

14069

BREATHER

14069-1051

$7.76

14073

DUCT,CARBURETOR

14073-1419

Unavailable

14073A

DUCT,AIR INTAKE

14073-1420

$89.25

14073B

DUCT,AIR FILTER

14073-1421

$81.20

16126

VALVE,AIR SWITCH

16126-1144

$204.57

16126A

VALVE,CANISTER

16126-1241

Unavailable

32150

PIPE

32150-1568

$11.27

32150A

PIPE

32150-1820

$93.26

32150C

PIPE,AIR DUCT

32150-1890

$12.44

49064

FILTER-AIR

49064-1055

$21.88

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,TUBE,T-TYPE

92005-1130

$35.62

92015

NUT,WELL,5MM

92015-1640

$5.58

92027

COLLAR

92027-1166

$4.67

92027A

COLLAR

92027-1767

$4.18

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,TUBE

92037-1972

$3.29

92037B

CLAMP,TUBE

92037-213

$3.29

92055

RING-O,67.7X3.1

92055-1434

$7.52

92059

TUBE,4X9X190

92059-1032

$14.40

92059A

TUBE,FUEL,4X9X140

92059-1230

$14.40

92059B

TUBE

92059-1551

$19.41

92059C

TUBE,4X9X260

92059-1712

$14.40

92059D

TUBE

92059-1907

Unavailable

92066

PLUG,DRAIN

92066-1211

$6.48

92066A

PLUG

92066-1306

$4.14

92066B

PLUG

92066-1324

$3.25

92071

GROMMET,AIR FILTER

92071-1028

$5.55

92071A

GROMMET

92071-1132

$8.46

92071B

GROMMET

92071-1165

$9.47

92072

BAND,L=202

92072-1195

$1.16

92075

DAMPER,BATTERY BAND

92075-1903

$4.92

92093

SEAL,AIR DUCT

92093-1310

Unavailable

92150

BOLT,5X16

92150-1363

$3.35

92160

DAMPER,VALVE

92160-1241

$21.97

92170

CLAMP

92170-1060

$7.93

92170A

CLAMP

92170-1148

Unavailable

92170B

CLAMP

92170-1149

$8.65

92170C

CLAMP

92170-1191

Unavailable

92170D

CLAMP,AIR FILTER

92170-1221

Unavailable

92170E

CLAMP

92170-1222

$7.76

92170F

CLAMP,AIR FILTER

92170-1246

$11.73

92190

TUBE,VALVE-AIR FILTER

92190-1076

$22.88

92190A

TUBE,BLOWBY

92190-1077

$28.24

92190B

TUBE,CLEAN SIDE

92190-1100

$14.61

92190C

TUBE,DIRT SIDE

92190-1101

Unavailable

92190D

TUBE,8X12X685

92190-1103

$12.63

92190E

TUBE,15X20X1000

92190-1120

$36.89

92190F

TUBE,VALVE-AIR FILTER

92190-1123

$16.81

92190H

TUBE,L=140

92190-1152

$10.37

92190I

TUBE,AIR SWITCH VALVE

92190-1170

Unavailable

92190J

TUBE,AIR FILTER

92190-1189

Unavailable

92190L

TUBE,AIR FILTER

92190-1190

$37.97

130

BOLT-FLANGED,6X12

130G0612

Unavailable

130A

BOLT-FLANGED,6X20

130G0620

Unavailable

130A

BOLT-FLANGED,6X20

130G0620

Unavailable

130B

BOLT-FLANGED

130J0610

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

220A

SCREW-PAN-CROS

220C0520

$1.36

224

SCREW-PAN-WP-CROS

224B0630

Unavailable

224A

SCREW-PAN-WP-CROS,5X14

224C0514

Unavailable

702

TUBE-RUBBER

702A07325

Unavailable
