2021 Kawasaki Ninja® ZX™-10RR (US) Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2021 Kawasaki Ninja® ZX™-10RR (US), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

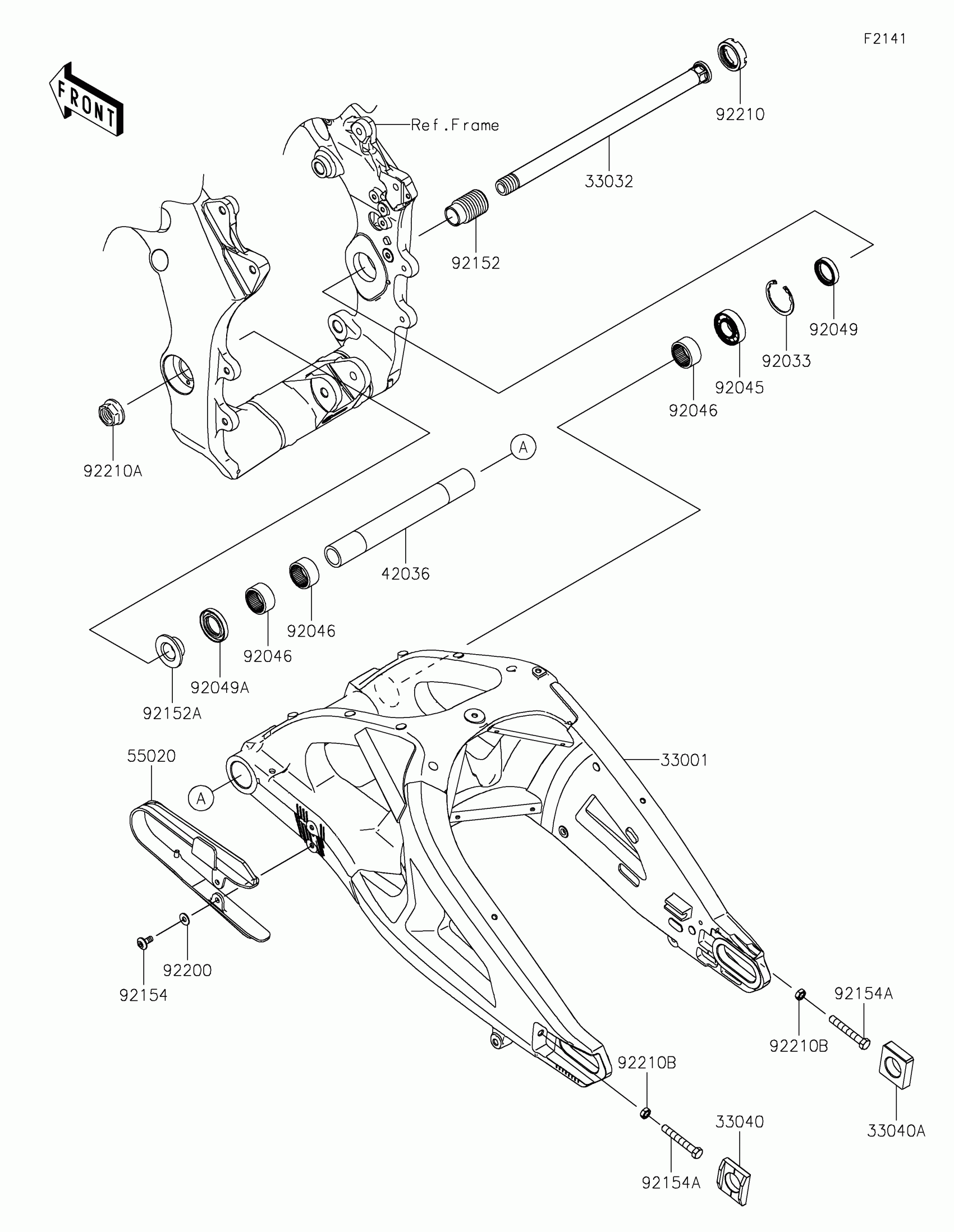

2021 Kawasaki Ninja® ZX™-10RR (US) Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING

33001-0724

1

$1,579.86

In stock

33032

SHAFT-SWING ARM

33032-0048

1

$94.46

In stock

33040

ADJUSTER-CHAIN,RH

33040-0027

1

$39.39

In stock

33040A

ADJUSTER-CHAIN,RH

33040-1114

1

$15.15

In stock

42036

1

$70.15

In stock

55020

GUARD,CHAIN

55020-0561

1

$41.04

In stock

92033

RING-SNAP,42MM

92033-1041

1

$4.88

In stock

92045

1

$11.39

In stock

92046

1

$19.97

In stock

92049

SEAL-OIL,MHSA25X42X6

92049-1314

1
Out of stock

92049A

SEAL-OIL,MHSA25X34X7

92049-1352

1
Out of stock

92152

1

$37.85

In stock

92152A

COLLAR,20.2X25X15

92152-2169

1
Out of stock

92154

BOLT,SOCKET,6X14

92154-1807

1

$2.64

In stock

92154A

BOLT-SMALL,8X55

92154-1962

1

$4.51

In stock

92200

WASHER,6.2X15X1.2

92200-1762

1
Out of stock

92210

NUT,30MM

92210-0134

1
Out of stock

92210A

NUT,FLANGED,20MM

92210-0320

1
Out of stock

92210B

NUT-HEX-SMALL,8MM

92210-1459

1
Out of stock
