Description

Price

13042

WEIGHT,HANDLE

13042-5032

$31.17

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13280

HOLDER

13280-1319

$48.11

27010

SWITCH,CLUTCH

27010-0971

$60.55

46003

HANDLE,LH

46003-0786

$229.99

46003A

HANDLE,RH

46003-0787

$229.99

46019

GRIP-ASSY,THROTTLE

46019-0100

$42.60

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0184

$259.65

46091

HOUSING-ASSY-CONTROL,RH

46091-0574

$250.73

46091A

HOUSING-ASSY-CONTROL,LH

46091-0576

$403.67

46092

LEVER-GRIP

46092-0581

$14.10

92145

SPRING

92145-1286

$5.19

92150

BOLT,6MM

92150-1090

$5.69

92151

BOLT

92151-1523

$5.69

92152

COLLAR

92152-0103

$14.34

92154

BOLT,SOCKET,6X20

92154-1644

$1.77

92154A

BOLT,17X18

92154-1902

$14.30

92154B

BOLT,SOCKET,8X35

92154-1969

$3.74

92154C

BOLT,SOCKET,8X30

92154-2292

$1.98

92154D

BOLT,SOCKET,5X25

92154-2596

$3.51

92154E

BOLT,5X30

92154-3921

$3.51

92154F

BOLT,5X50

92154-3922

$3.51

92172

SCREW,ADJUST NUT

92172-1060

$39.89

92210

NUT,LOCK,6MM

92210-1544

$2.72

236

SCREW-PAN-WSP-CROS,4X10

236AB0410

$1.34

236A

SCREW-PAN-WSP-CROS

236AB0416

$9.90

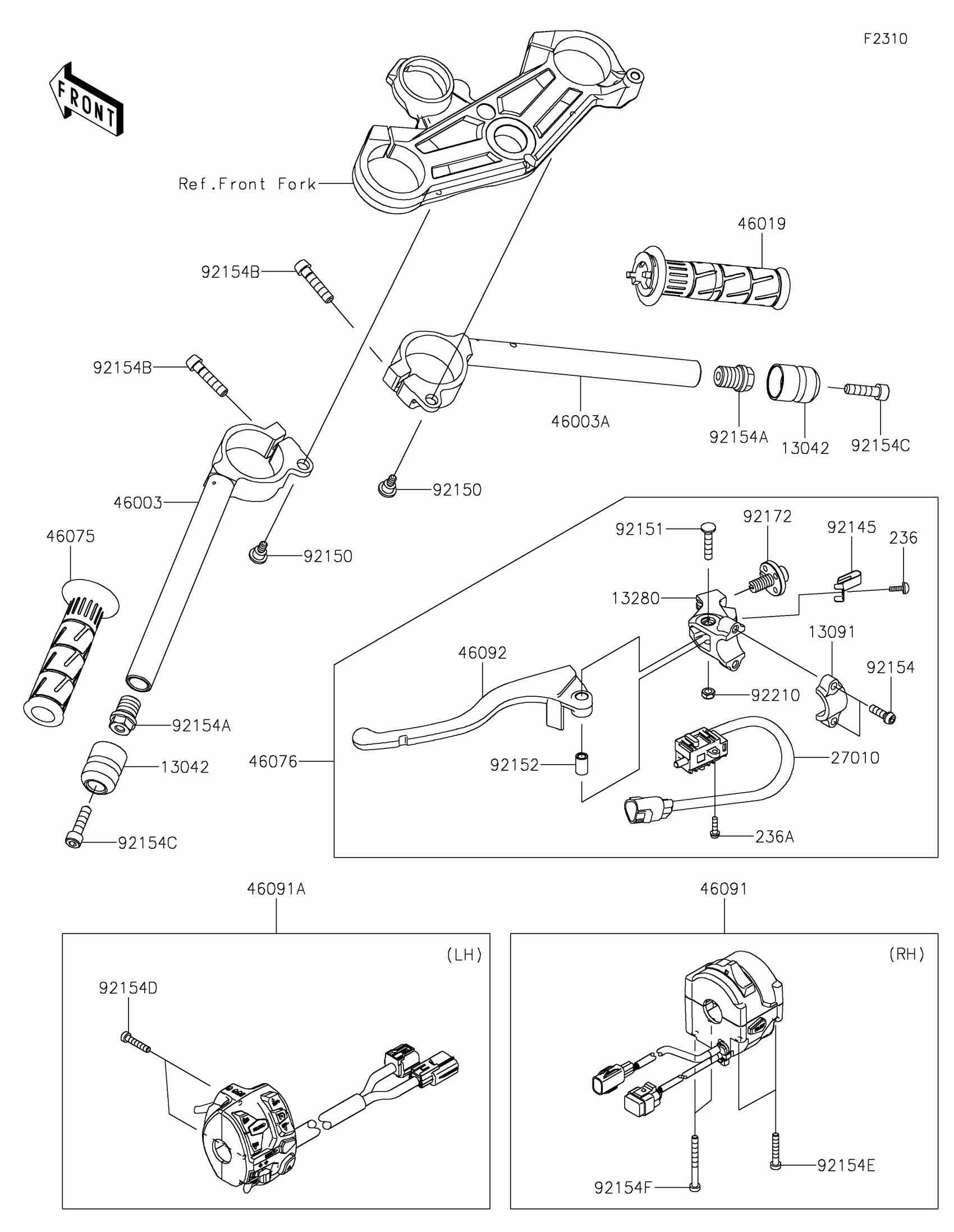

Kawasaki Ninja® ZX™-10RR (US) Handlebar Diagram

WEIGHT,HANDLE

HOLDER,CLUTCH LEVER

HOLDER

SWITCH,CLUTCH

HANDLE,LH

HANDLE,RH

GRIP-ASSY,THROTTLE

GRIP,HANDLE,LH

LEVER-ASSY-GRIP,CLUTCH

HOUSING-ASSY-CONTROL,RH

HOUSING-ASSY-CONTROL,LH

LEVER-GRIP

SPRING

BOLT,6MM

BOLT

COLLAR

BOLT,SOCKET,6X20

BOLT,17X18

BOLT,SOCKET,8X35

BOLT,SOCKET,8X30

BOLT,SOCKET,5X25

BOLT,5X30

BOLT,5X50

SCREW,ADJUST NUT

NUT,LOCK,6MM

SCREW-PAN-WSP-CROS,4X10

SCREW-PAN-WSP-CROS
