2021 Kawasaki Ninja® ZX™-10RR (US) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 2021 Kawasaki Ninja® ZX™-10RR (US), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

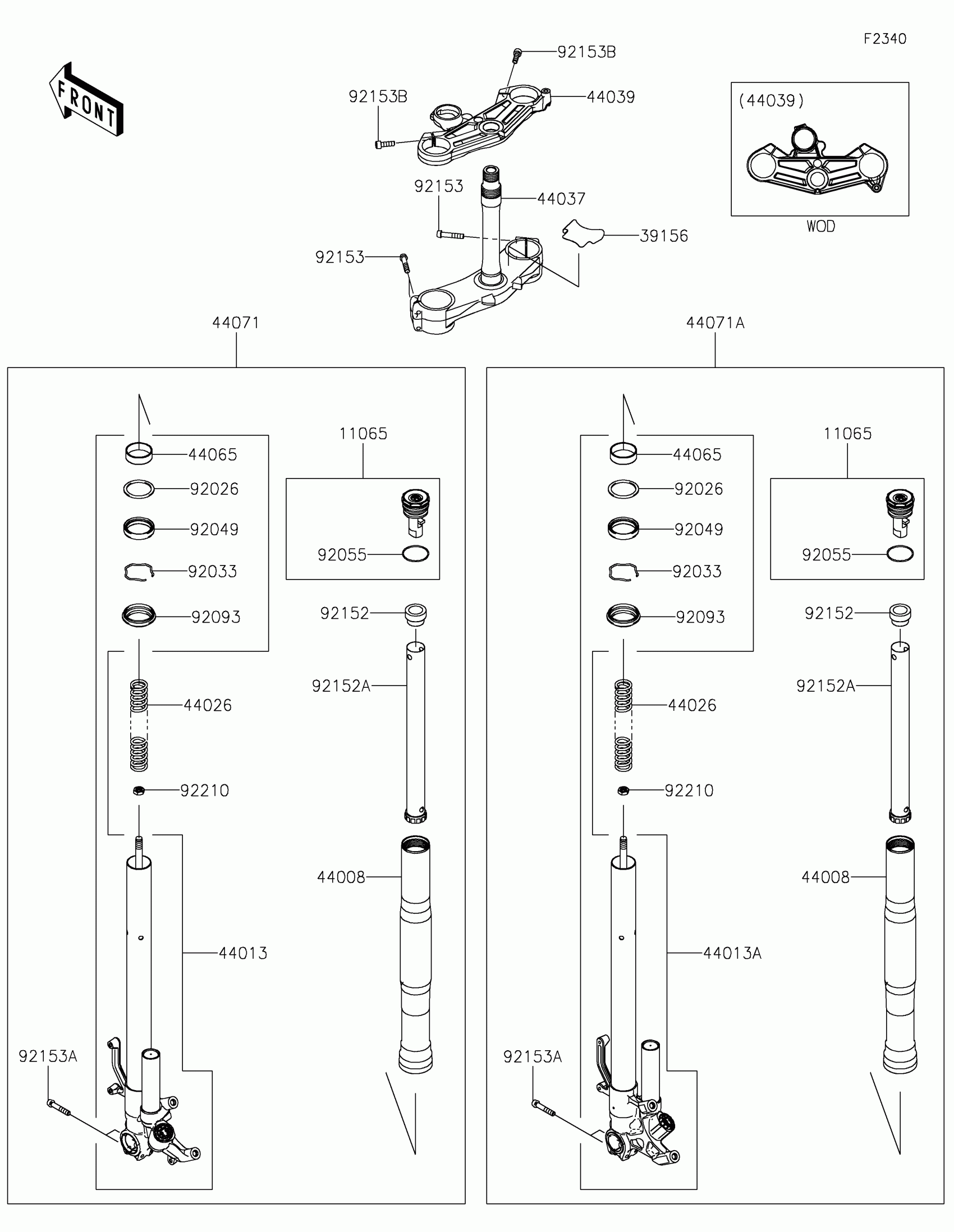

2021 Kawasaki Ninja® ZX™-10RR (US) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,FORK

11065-1406

1
Out of stock

39156

PAD,UNDER BRACKET

39156-2746

1
Out of stock

44008

PIPE-FORK OUTER

44008-0096

1
Out of stock

44013

PIPE-FORK INNER,LH

44013-0381

1
Out of stock

44013A

PIPE-FORK INNER,RH

44013-0382

1
Out of stock

44026

SPRING-FRONT FORK,10.50N/MM

44026-0274

1
Out of stock

44037

HOLDER-FORK UNDER

44037-0198

1
Out of stock

44039

HOLDER-FORK UPPER

44039-0200

1
Out of stock

44065

BUSHING-FRONT FORK

44065-0026

1
Out of stock

44071

DAMPER-ASSY,FORK,LH

44071-1523

1
Out of stock

44071A

DAMPER-ASSY,FORK,RH

44071-1524

1
Out of stock

92026

SPACER

92026-0165

1
Out of stock

92033

RING-SNAP

92033-1222

1
Out of stock

92049

SEAL-OIL

92049-0064

1
Out of stock

92055

RING-O,FORK CAP

92055-1497

1
Out of stock

92093

SEAL,DUST

92093-0042

1
Out of stock

92152

COLLAR

92152-2238

1
Out of stock

92152A

COLLAR

92152-2239

1
Out of stock

92153

BOLT

92153-0853

1
Out of stock

92153A

BOLT,SOCKET,8X35

92153-0854

1
Out of stock

92153B

BOLT,SOCKET,8X25

92153-1625

1
Out of stock

92210

NUT

92210-1506

1
Out of stock
