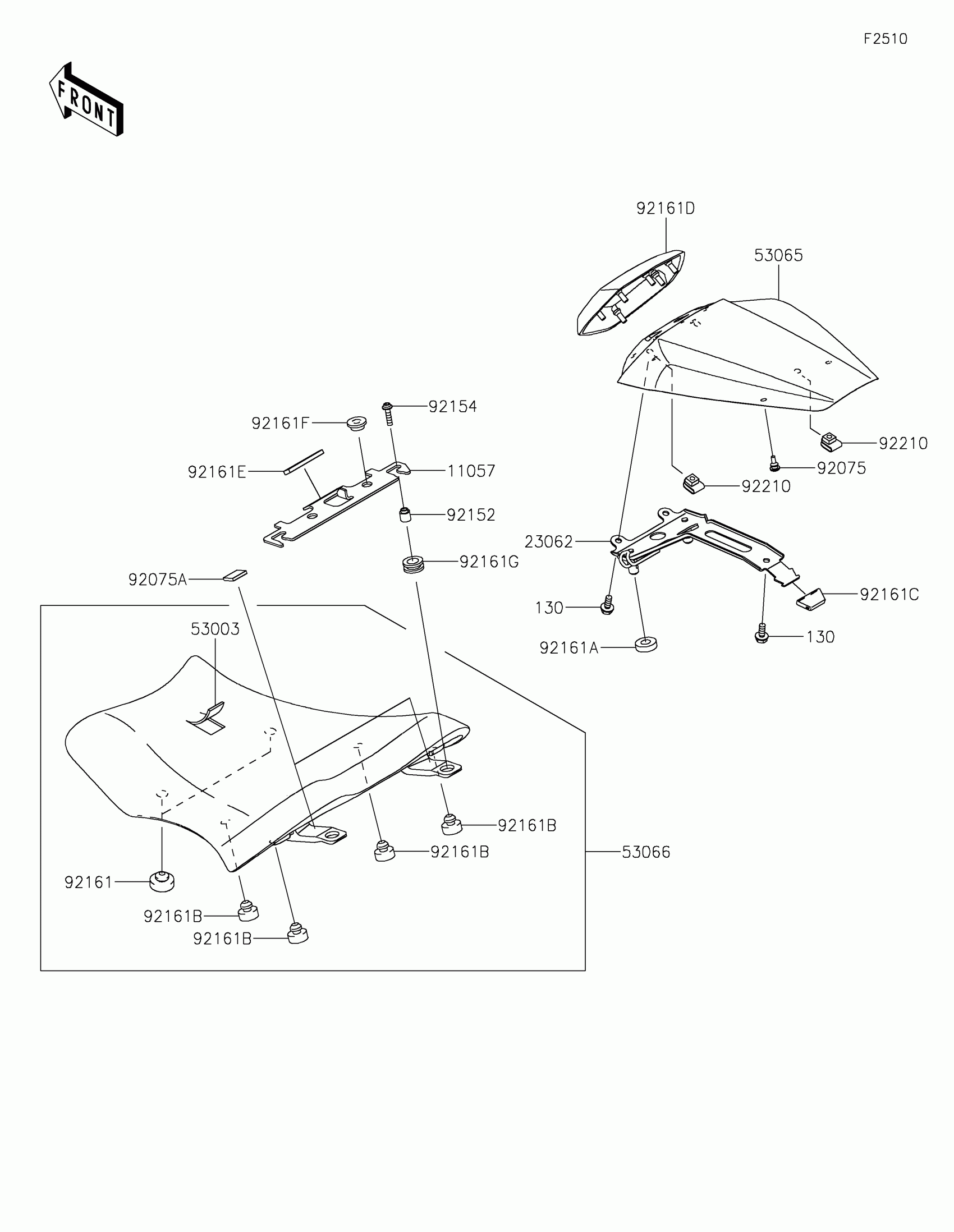

Kawasaki Ninja® ZX™-10RR (US) Seat Diagram

Description

Price

11057

BRACKET,SEAT

11057-7381

$42.44

23062

BRACKET-COMP

23062-1303

$114.41

53003

LEATHER,FR SEAT,BLACK

53003-0535-MA

$111.05

53065

COVER SEAT,L.GREEN

53065-0038-777

$224.54

53066

SEAT-ASSY,FR,BLACK

53066-0700-MA

$179.60

92075

DAMPER,6X10X15

92075-1808

$1.06

92075A

DAMPER

92075-1982

$3.92

92152

COLLAR

92152-2816

$5.07

92154

BOLT,SOCKET,5X20

92154-4257

$1.20

92161

DAMPER,SEAT,10X25X8

92161-0095

$7.80

92161A

DAMPER

92161-0174

$2.25

92161B

DAMPER,8X20X8

92161-0223

$3.74

92161C

DAMPER

92161-0629

$7.12

92161D

DAMPER,SEAT PAD

92161-1812

$67.02

92161E

DAMPER,10X50X4

92161-1834

$1.32

92161F

DAMPER,6X20X7.5

92161-1937

$1.32

92161G

DAMPER

92161-2403

$3.70

92210

NUT,6MM

92210-0277

$3.74

130

BOLT-FLANGED,6X14

130BA0614

$0.97
