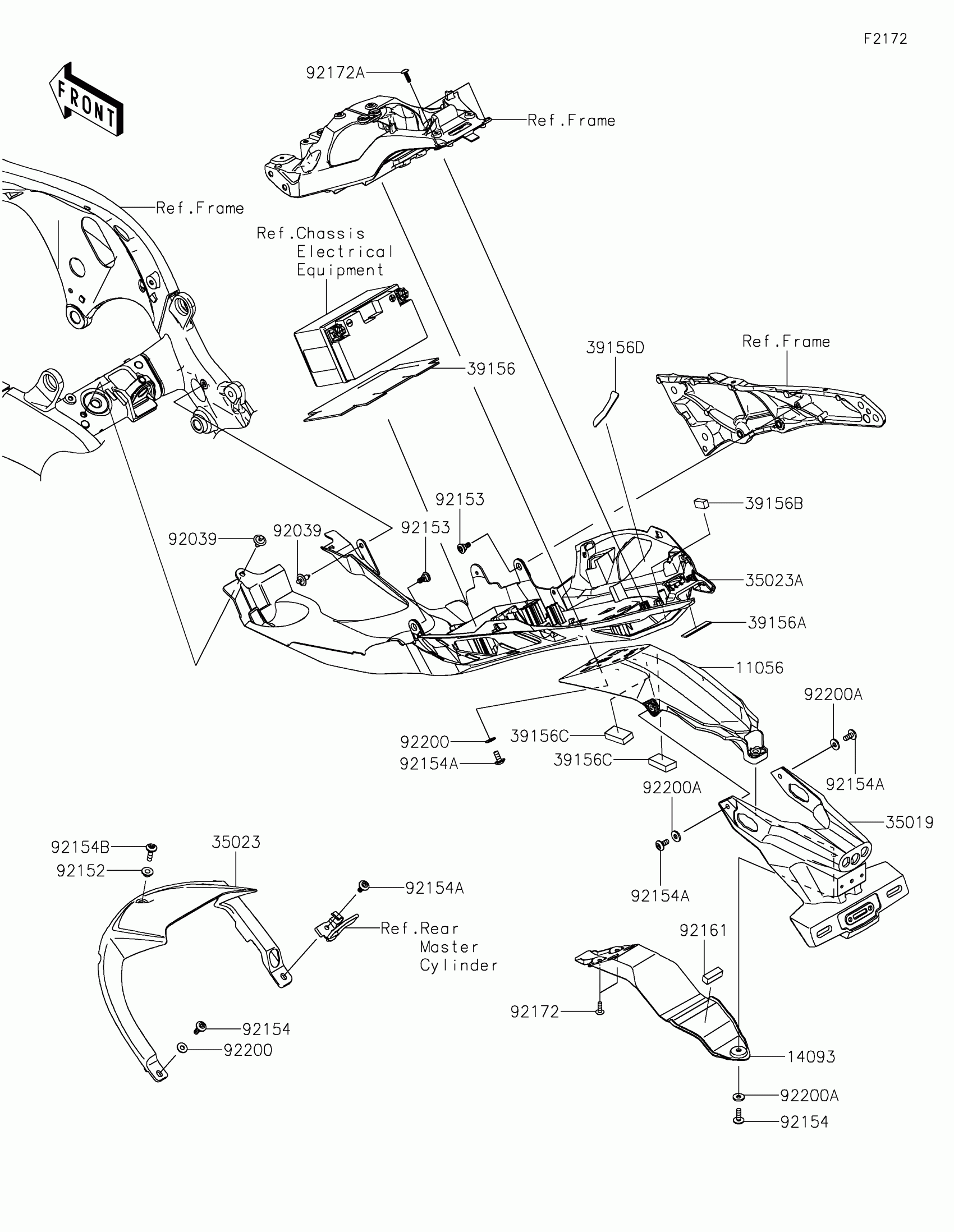

Kawasaki Ninja® ZX™-10RR (US) Rear Fender(s) Diagram

Description

Price

11056

BRACKET,FLAP

11056-7677

$82.34

14093

COVER,FLAP

14093-0336

$14.22

35019

FLAP

35019-0667

$35.79

35023

FENDER-REAR,INNER

35023-0188

$33.45

35023A

FENDER-REAR

35023-0477

$85.84

39156

PAD,REAR FENDER

39156-0754

$35.72

39156A

PAD,10X50X2

39156-1924

$2.02

39156B

PAD,20X8X10

39156-1968

$0.98

39156C

PAD,36X20X9

39156-1986

$1.39

39156D

PAD,HARNESS,RH

39156-2736

$3.97

92039

RIVET

92039-1289

$1.98

92152

COLLAR,6.5X10X6.2

92152-2152

$2.64

92153

BOLT,SOCKET,6MM

92153-1956

$2.98

92154

BOLT,SOCKET,6X18

92154-1694

$1.72

92154A

BOLT,SOCKET,6X14

92154-1807

$2.28

92154B

BOLT,SOCKET,6X22

92154-1810

$2.95

92161

DAMPER,10X30X10

92161-1835

$1.14

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92172A

SCREW,TAPPING,5X16

92172-0238

$0.84

92200

WASHER,6.2X15X1.2

92200-1762

$0.95

92200A

WASHER,6.5X16X2

92200-1834

$0.97
