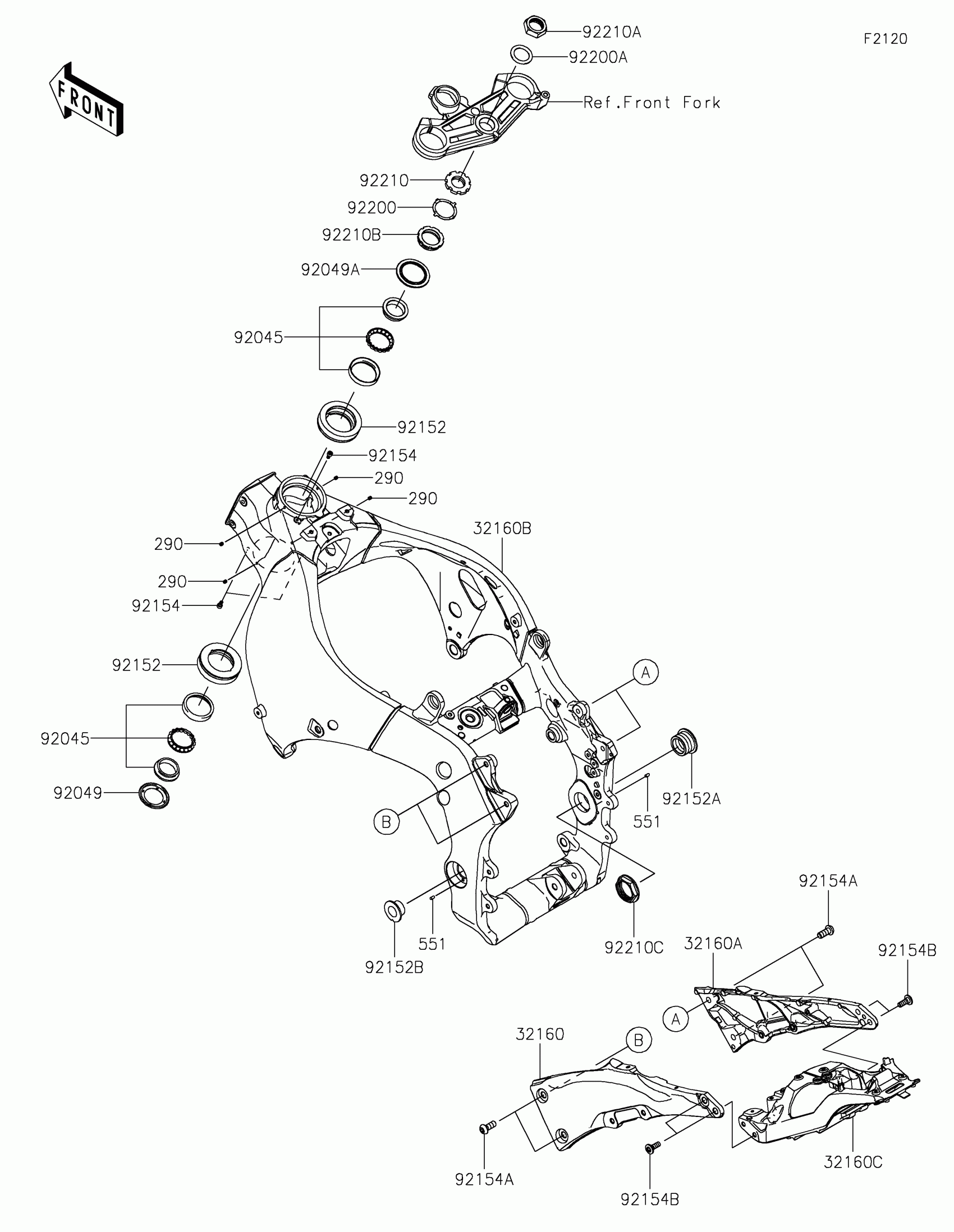

Kawasaki Ninja® ZX™-10RR (US) Frame Diagram

Description

Price

32160

FRAME-COMP,RR,LH,F.S.BLACK

32160-0885-18R

$248.80

32160A

FRAME-COMP,RR,RH,F.S.BLACK

32160-0886-18R

$248.80

32160B

FRAME-COMP,MAIN

32160-1872

$2,309.83

32160C

FRAME-COMP,RR

32160-1895

$203.45

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

$40.52

92049

SEAL-OIL,DS35X55X4

92049-0022

$13.12

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

$16.78

92152

COLLAR,55X77X18.5

92152-2165

$115.58

92152A

COLLAR,PIVOT,RH

92152-2811

$71.97

92152B

COLLAR,PIVOT,LH

92152-2812

$44.93

92154

BOLT,SOCKET,5X10

92154-1642

$1.32

92154A

BOLT,SOCKET,10X25

92154-1900

$3.78

92154B

BOLT,SOCKET,8X23

92154-1901

$2.75

92200

WASHER

92200-0036

$3.81

92200A

WASHER,28.5X40X1.6

92200-0595

$3.68

92210

NUT,35MM

92210-0095

$13.77

92210A

NUT,28MM

92210-0209

$17.39

92210B

NUT,35MM

92210-0823

$22.83

92210C

NUT,38MM

92210-1441

$51.36

290

SCREW-SET-SOCKET,5X6

290Q0506

$3.29

551

PIN-DOWEL

551R0408

$4.09
