2018 Kawasaki Ninja® ZX™-10RR Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

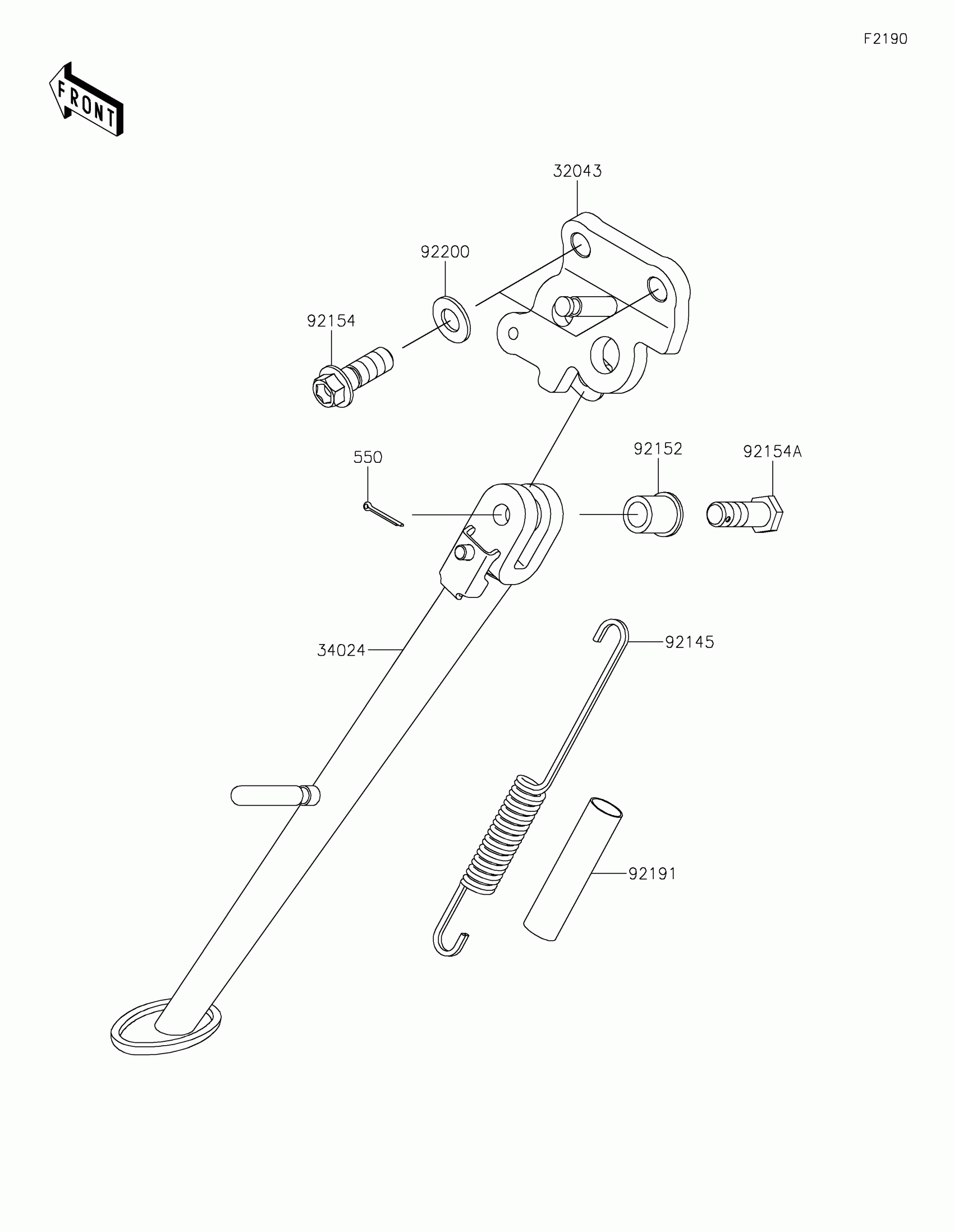

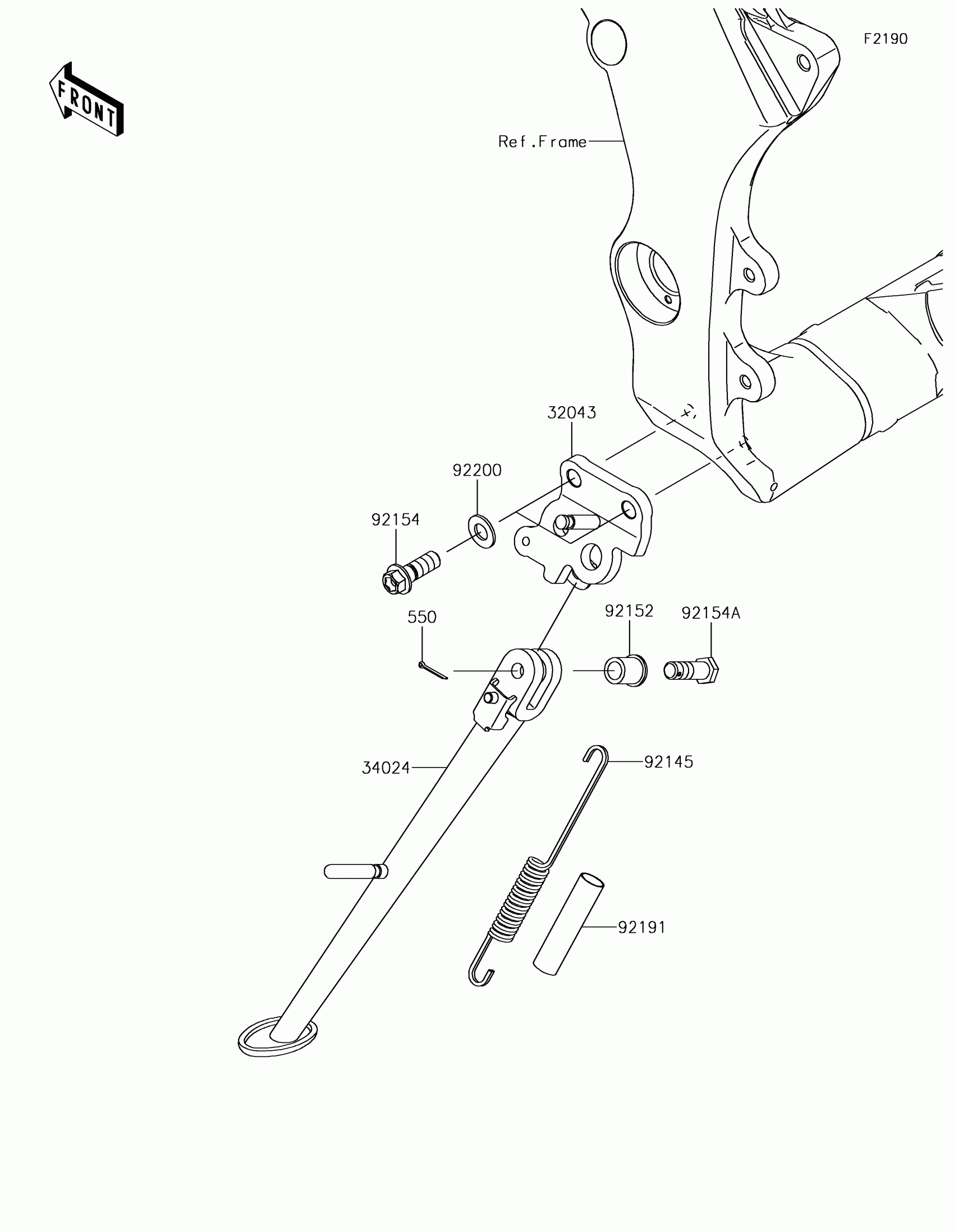

2018 Kawasaki Ninja® ZX™-10RR Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32043

BRACKET-STAND,F.S.BLACK

32043-0604-18R

1
Out of stock

34024

STAND-SIDE,F.S.BLACK

34024-0137-18R

1
Out of stock

550

PIN-COTTER,2.0X15

550AA2015

1
Out of stock

92145

SPRING,SIDE STAND

92145-1731

1
Out of stock

92152

COLLAR,10.2X15X18.1

92152-2171

1
Out of stock

92154

BOLT,FLANGED,10X28

92154-1963

1
Out of stock

92154A

BOLT,10X30

92154-2088

1
Out of stock

92191

TUBE,13X16X60

92191-1001

1
Out of stock

92200

WASHER,10.2X20X1.6

92200-0328

1
Out of stock
