2018 Kawasaki Ninja® ZX™-10RR Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

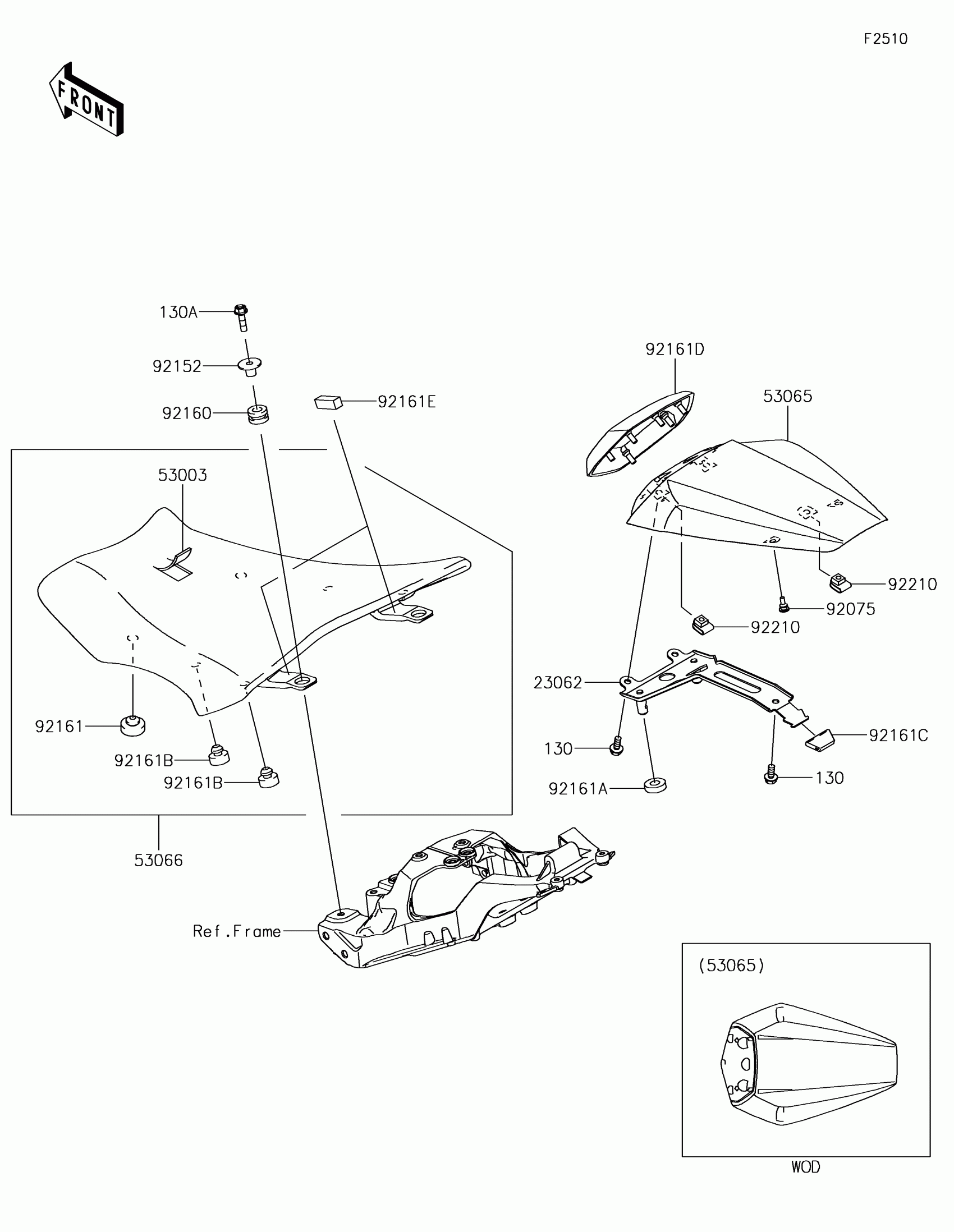

2018 Kawasaki Ninja® ZX™-10RR Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X22

130BA0622

1

$1.17

In stock

23062

BRACKET-COMP

23062-0861

1

$120.65

In stock

53003

LEATHER,FR SEAT,BLACK

53003-0209-MA

1

$111.05

In stock

53065

COVER SEAT,F.EBONY

53065-0038-45L

1

$222.46

In stock

53066

SEAT-ASSY,FR,BLACK

53066-0601-MA

1

$177.94

In stock

92075

DAMPER,6X10X15

92075-1808

1

$1.24

In stock

92152

COLLAR

92152-0365

1

$1.20

In stock

92160

DAMPER,10X20X12

92160-1167

1

$3.72

In stock

92161

DAMPER,SEAT,10X25X8

92161-0095

1

$7.80

In stock

92161A

DAMPER

92161-0174

1

$2.25

In stock

92161B

DAMPER,8X20X8

92161-0223

1

$3.90

In stock

92161C

DAMPER

92161-0629

1

$7.12

In stock

92161D

DAMPER,SEAT PAD

92161-1812

1

$67.02

In stock

92161E

DAMPER,10X30X10

92161-1835

1

$1.32

In stock

92210

NUT,6MM

92210-0277

1
Out of stock
