2018 Kawasaki Ninja® ZX™-10RR Ignition Switch/locks/reflectors Diagram

← All diagrams

Find the part on the Ignition Switch/locks/reflectors diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

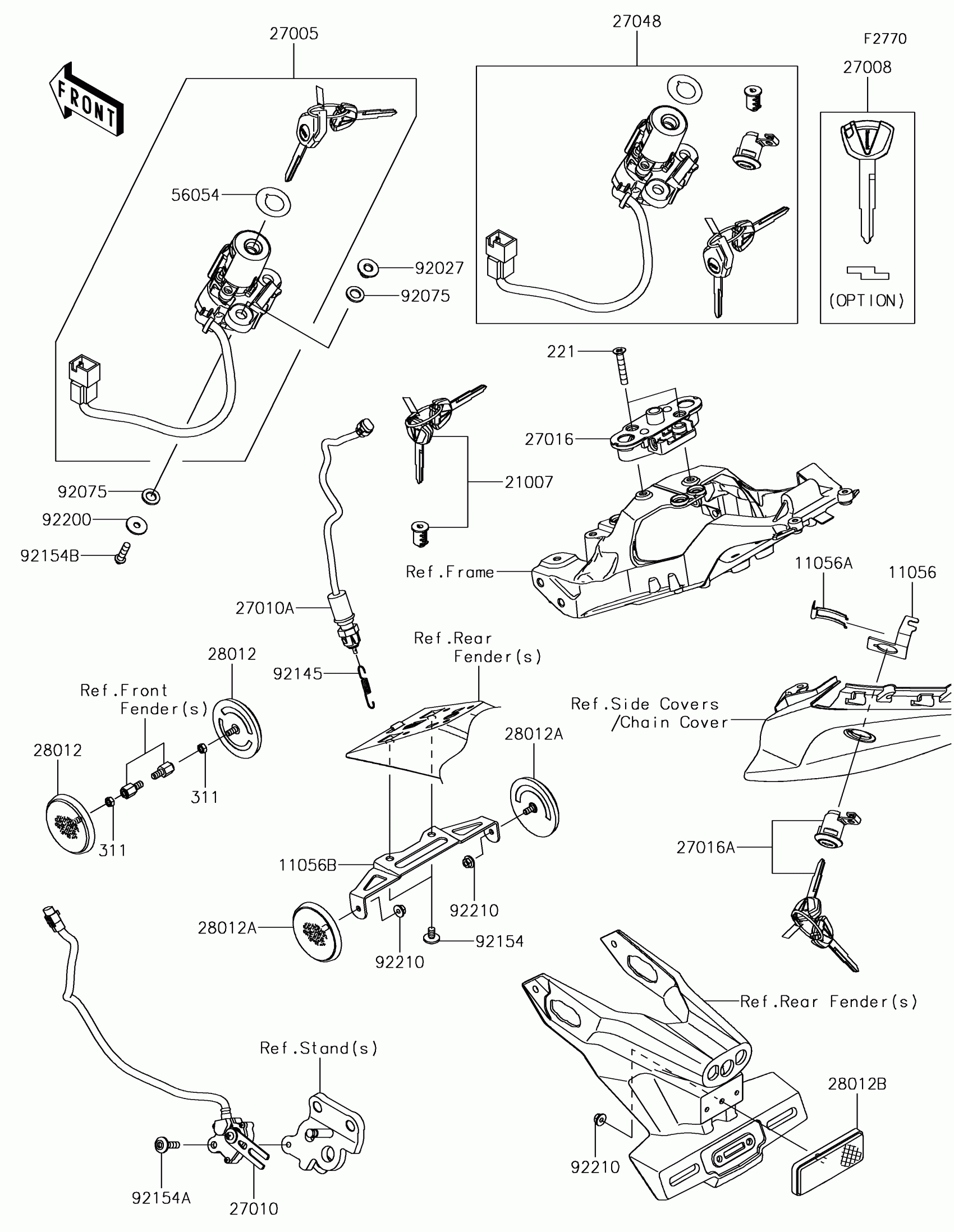

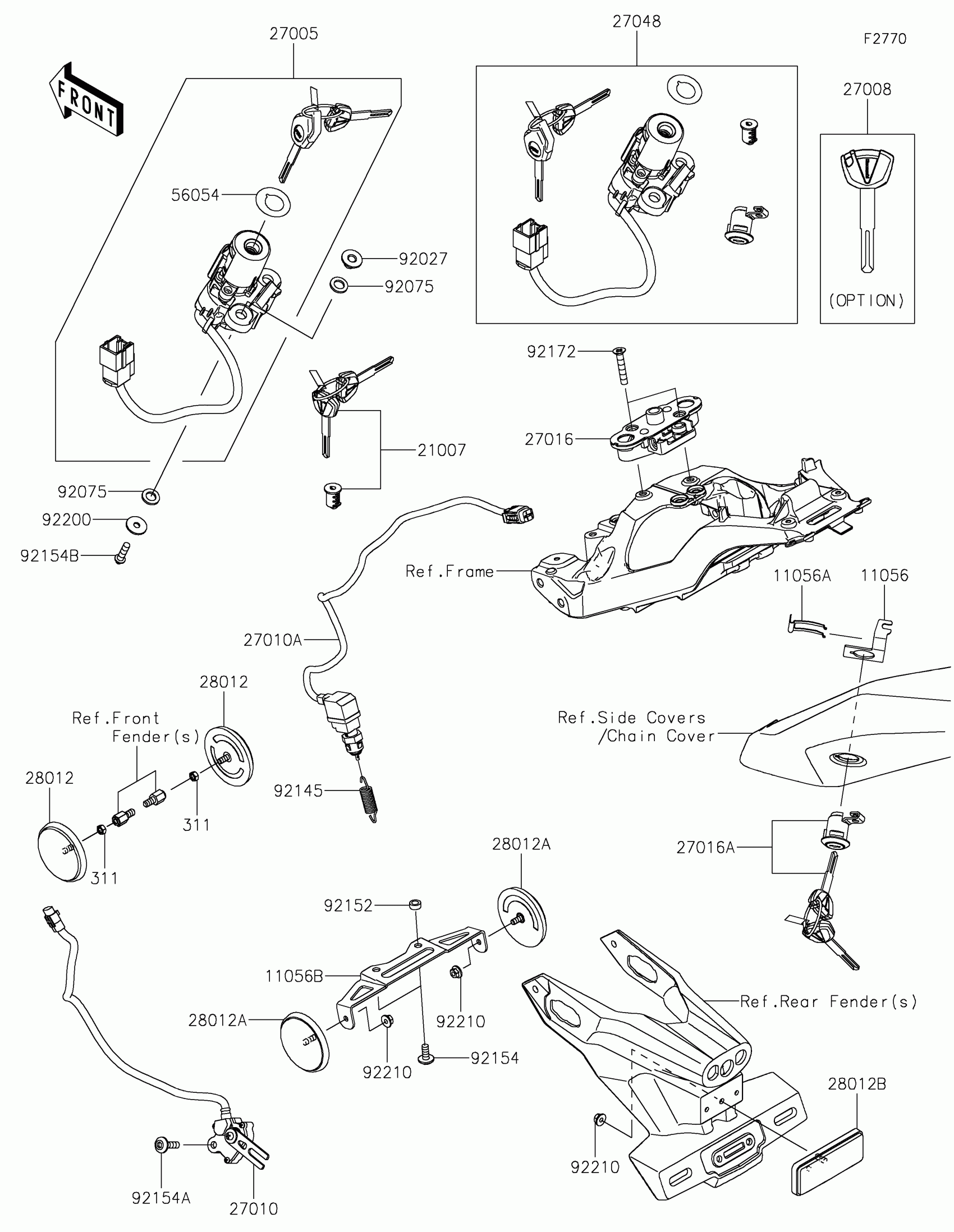

2018 Kawasaki Ninja® ZX™-10RR Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-0237

1
Out of stock

11056A

BRACKET,CLASP

11056-0238

1
Out of stock

11056B

BRACKET,REFLECTOR

11056-4496

1
Out of stock

21007

ROTOR,LOCK,TANK CAP

21007-5068

1
Out of stock

221

SCREW-CSK-CROS,6X35

221AB0635

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0633

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0069

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0003

1
Out of stock

27010A

SWITCH,STOP

27010-0836

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-0035

1
Out of stock

27016A

LOCK-ASSY,SEAT

27016-5391

1
Out of stock

27048

SWITCH-ASSY

27048-5129

1
Out of stock

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-0002

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1077

1
Out of stock

311

NUT-HEX,5MM

311AB0500

1
Out of stock

56054

MARK,IGNITION SWITCH

56054-0969

1
Out of stock

92027

COLLAR

92027-1045

1
Out of stock

92075

DAMPER

92075-1564

1
Out of stock

92145

SPRING,REAR BRAKE SWITCH

92145-0091

1
Out of stock

92154

BOLT,SOCKET,6X10

92154-1693

1
Out of stock

92154A

BOLT,SOCKET,6X22

92154-1810

1
Out of stock

92154B

BOLT,TORX,6X22

92154-1858

1
Out of stock

92200

WASHER,6X20X1.6

92200-0212

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
