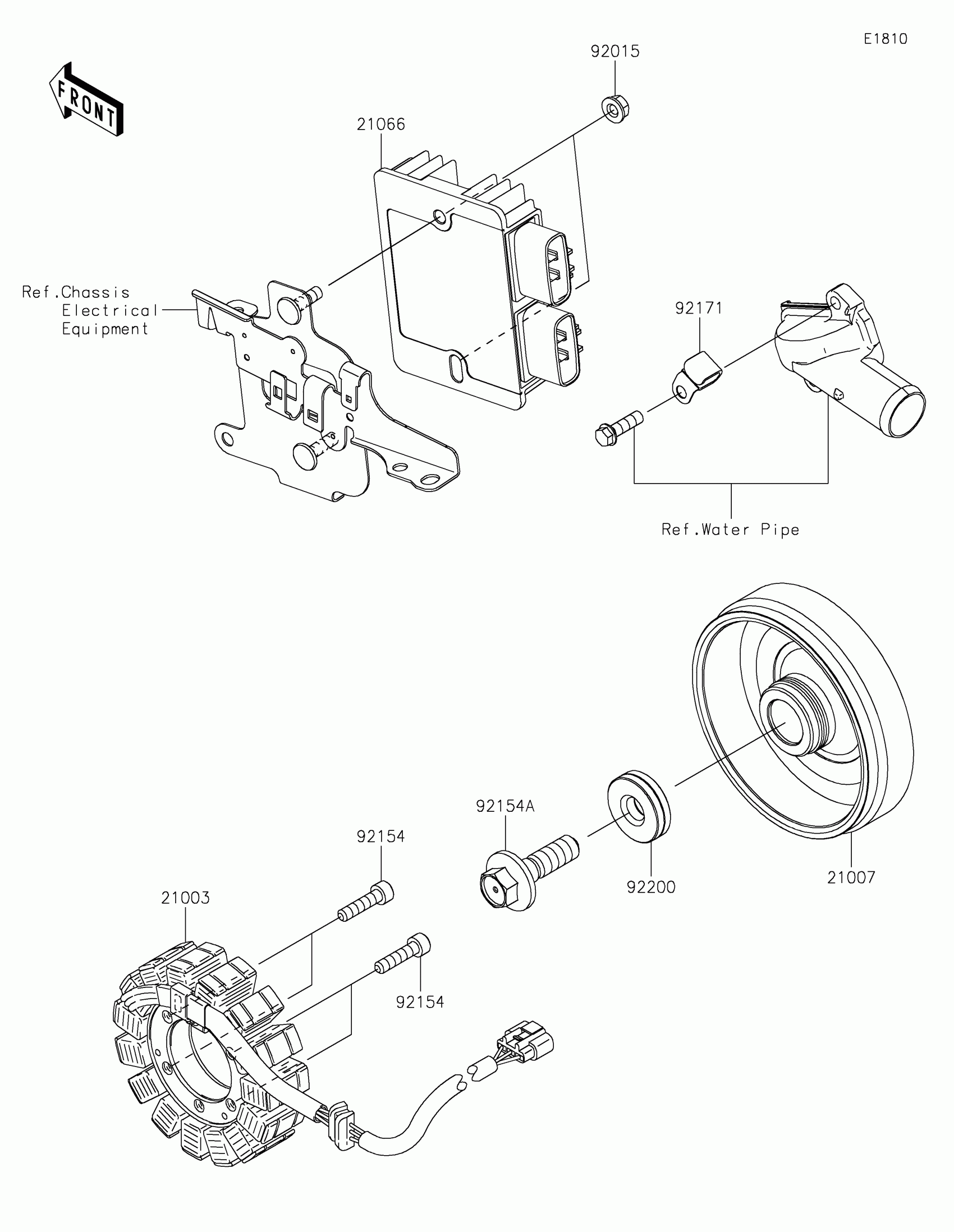

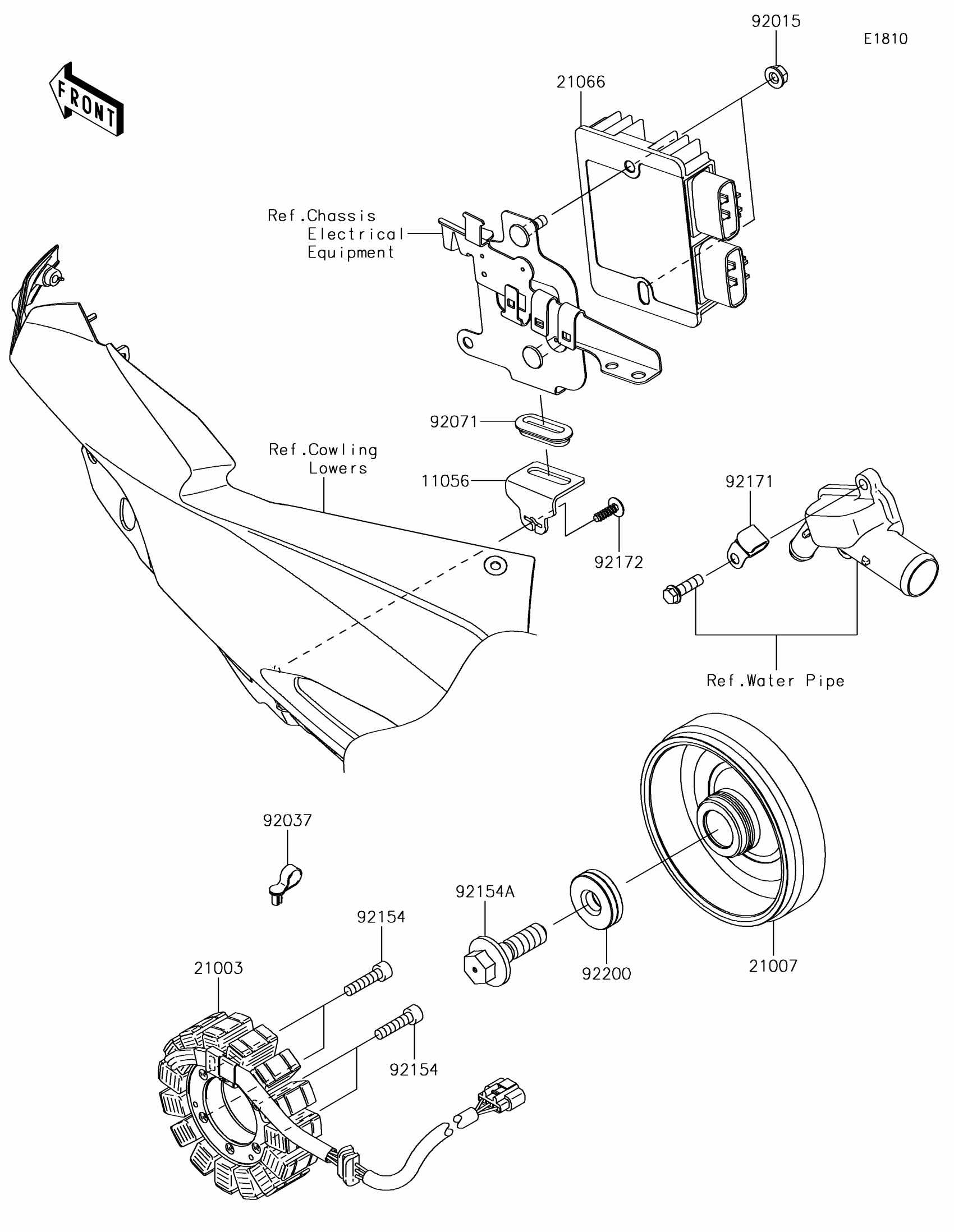

Kawasaki NINJA® ZX™-10RR Generator Diagram

Description

Price

11056

BRACKET,REGULATOR

11056-7812

$4.95

21003

STATOR

21003-0107

$388.79

21007

ROTOR

21007-0591

$641.37

21066

REGULATOR-VOLTAGE

21066-0748

$346.24

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92037

CLAMP,SPEED,L=43

92037-1290

$7.25

92071

GROMMET

92071-1187

$3.78

92154

BOLT,SOCKET,6X25

92154-0477

$1.43

92154A

BOLT,12X40

92154-1944

$32.91

92171

CLAMP

92171-0534

$5.56

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92200

WASHER,12X34X9

92200-0369

$11.42
