2018 Kawasaki Ninja® ZX™-10RR Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2018 Kawasaki Ninja® ZX™-10RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

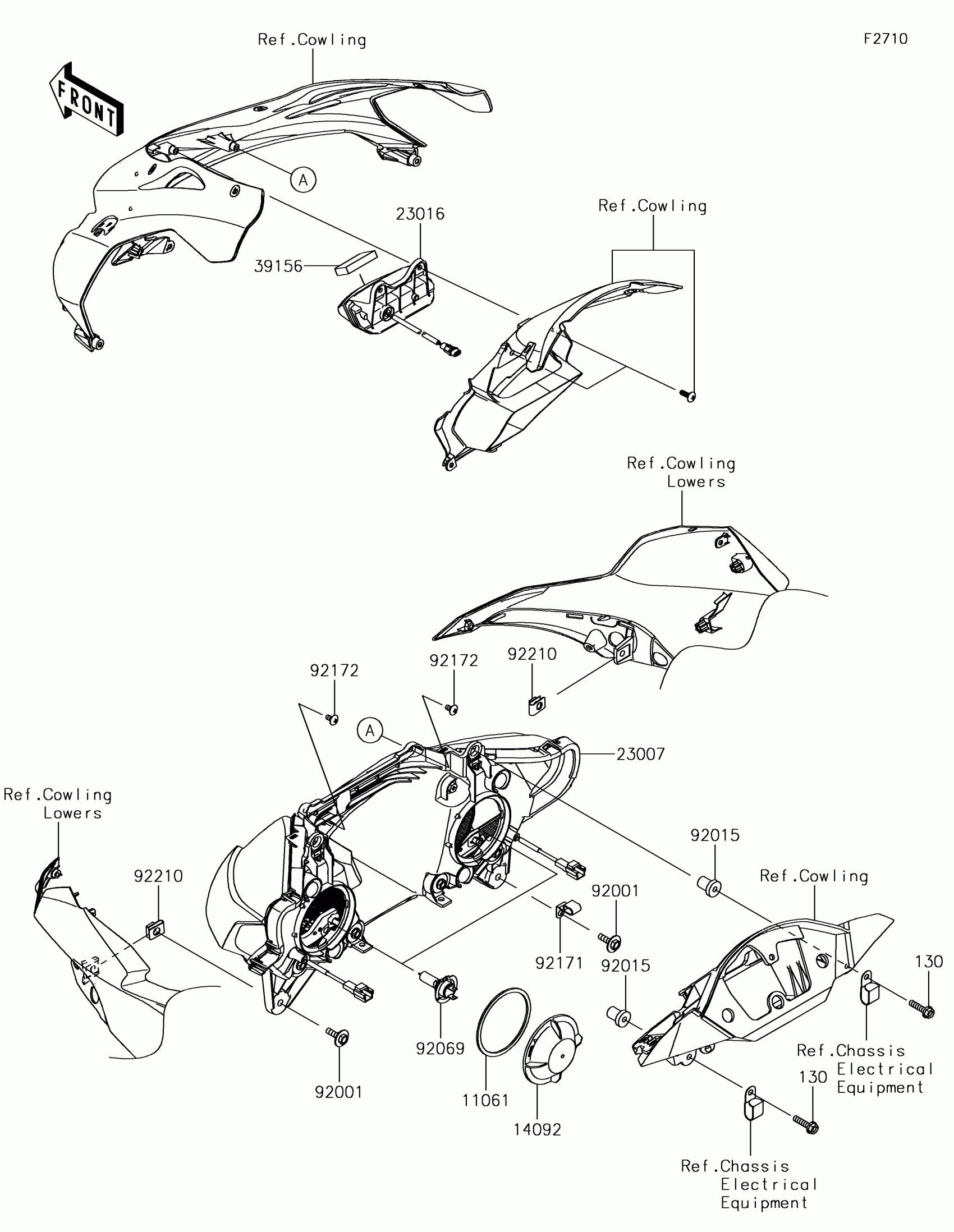

2018 Kawasaki Ninja® ZX™-10RR Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET

11061-0746

1
Out of stock

130

BOLT-FLANGED,6X25

130BB0625

1
Out of stock

14092

COVER,HEAD LAMP

14092-0793

1
Out of stock

23007

LENS-COMP

23007-0203

1
Out of stock

23016

LAMP-ASSY,POSITION LAMP

23016-0045

1
Out of stock

39156

PAD,45X24X8

39156-2113

1
Out of stock

92001

BOLT,UPSET-WP,6X22

92001-1774

1
Out of stock

92015

NUT,RUBBER,6MM

92015-1692

1
Out of stock

92069

BULB,12V 55W,H7

92069-0053

1
Out of stock

92171

CLAMP

92171-0926

1
Out of stock

92172

SCREW,TAPPING,5X10

92172-0335

1
Out of stock

92210

NUT

92210-0130

1
Out of stock
