2017 Kawasaki Ninja ZX-10R KRT Edition Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2017 Kawasaki Ninja ZX-10R KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

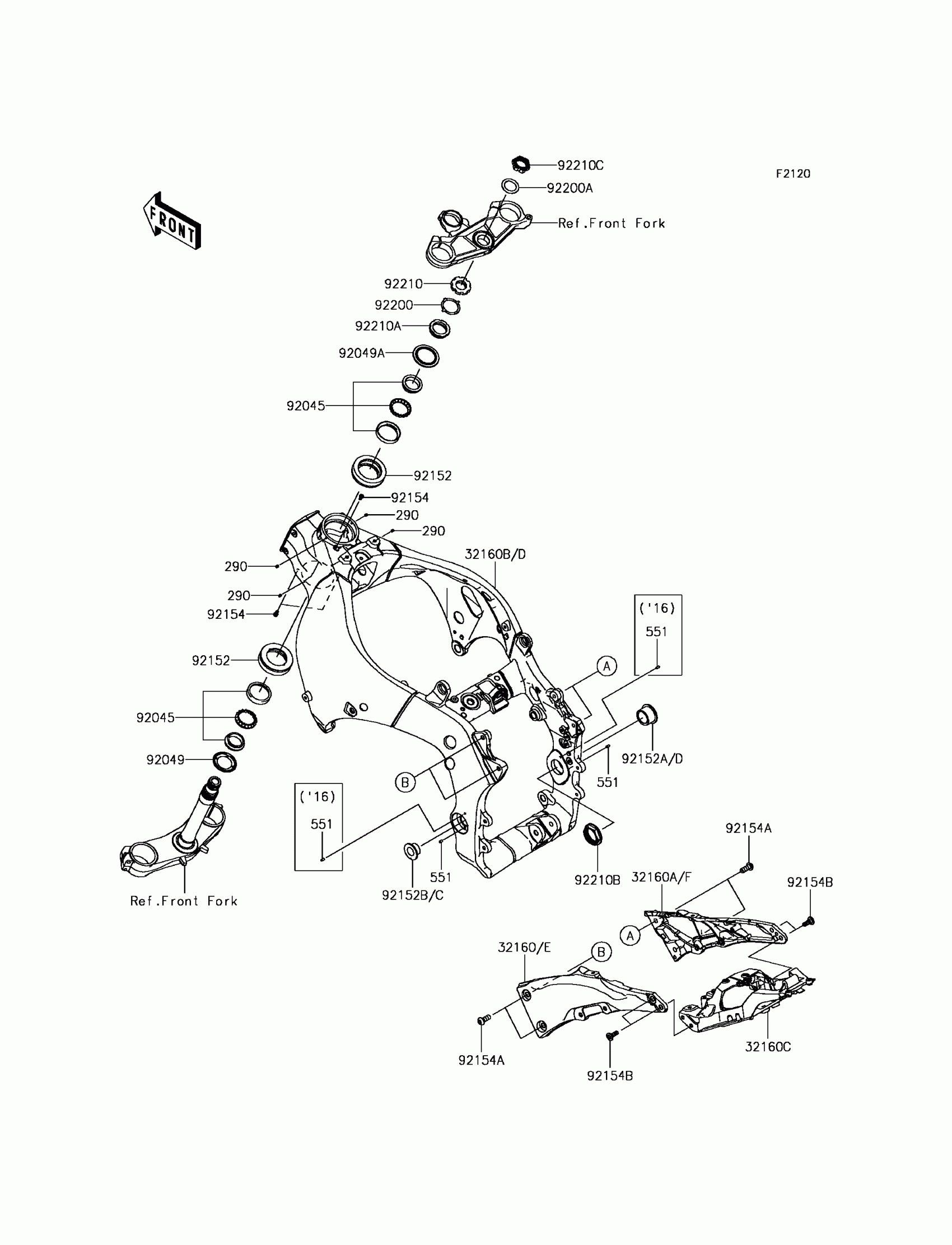

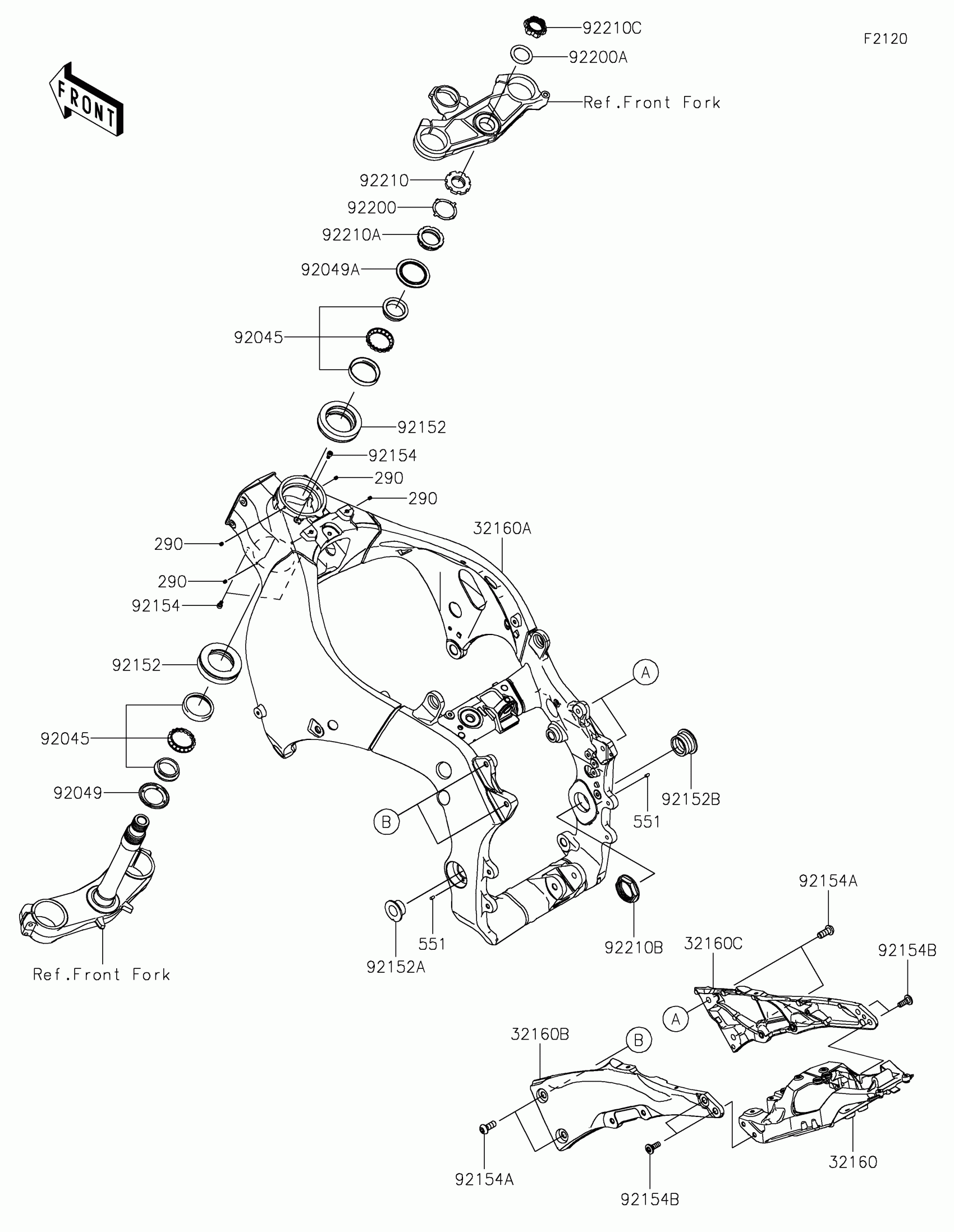

2017 Kawasaki Ninja ZX-10R KRT Edition Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

290

SCREW-SET-SOCKET,5X6

290Q0506

1
Out of stock

551

PIN-DOWEL

551R0408

1
Out of stock

32160C

FRAME-COMP,RR,CNT

32160-0801

1
Out of stock

32160D

FRAME-COMP,MAIN

32160-0882

1
Out of stock

32160E

FRAME-COMP,RR,LH,F.S.BLACK

32160-0885-18R

1
Out of stock

32160F

FRAME-COMP,RR,RH,F.S.BLACK

32160-0886-18R

1
Out of stock

92045

BEARING-BALL,SF07A17PX1V1

92045-1384

1
Out of stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,43X55.5X8.6

92049-0742

1
Out of stock

92152

COLLAR,55X77X18.5

92152-2165

1
Out of stock

92152C

COLLAR,20.5X40X17.5

92152-2300

1
Out of stock

92152D

COLLAR,30X47X24

92152-2301

1
Out of stock

92154

BOLT,SOCKET,5X10

92154-1642

1
Out of stock

92154A

BOLT,SOCKET,10X25

92154-1900

1
Out of stock

92154B

BOLT,SOCKET,8X23

92154-1901

1
Out of stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,28.5X40X1.6

92200-0595

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210A

NUT,35MM

92210-0823

1
Out of stock

92210B

NUT,38MM

92210-1441

1
Out of stock

92210C

NUT,28MM

92210-1460

1
Out of stock
