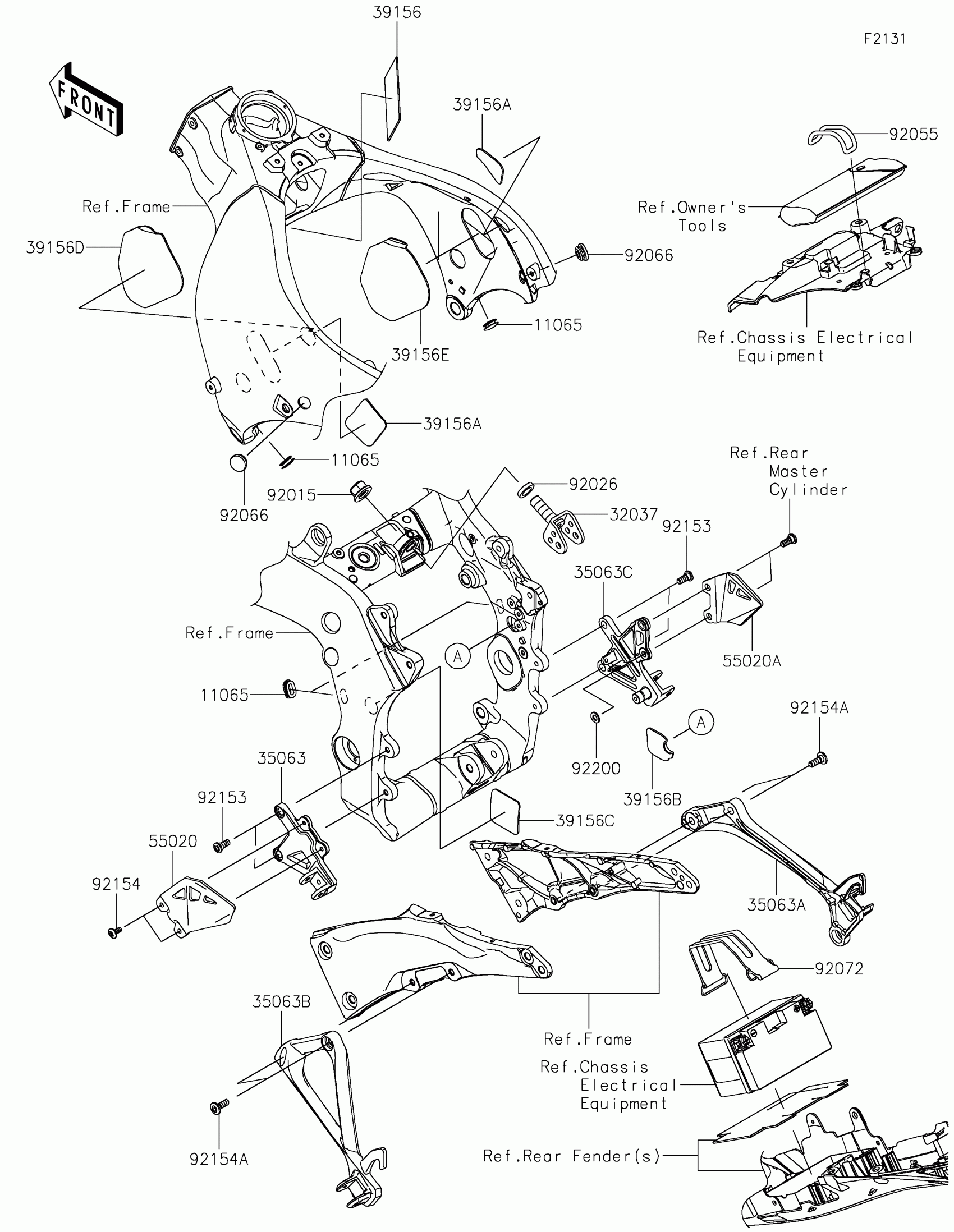

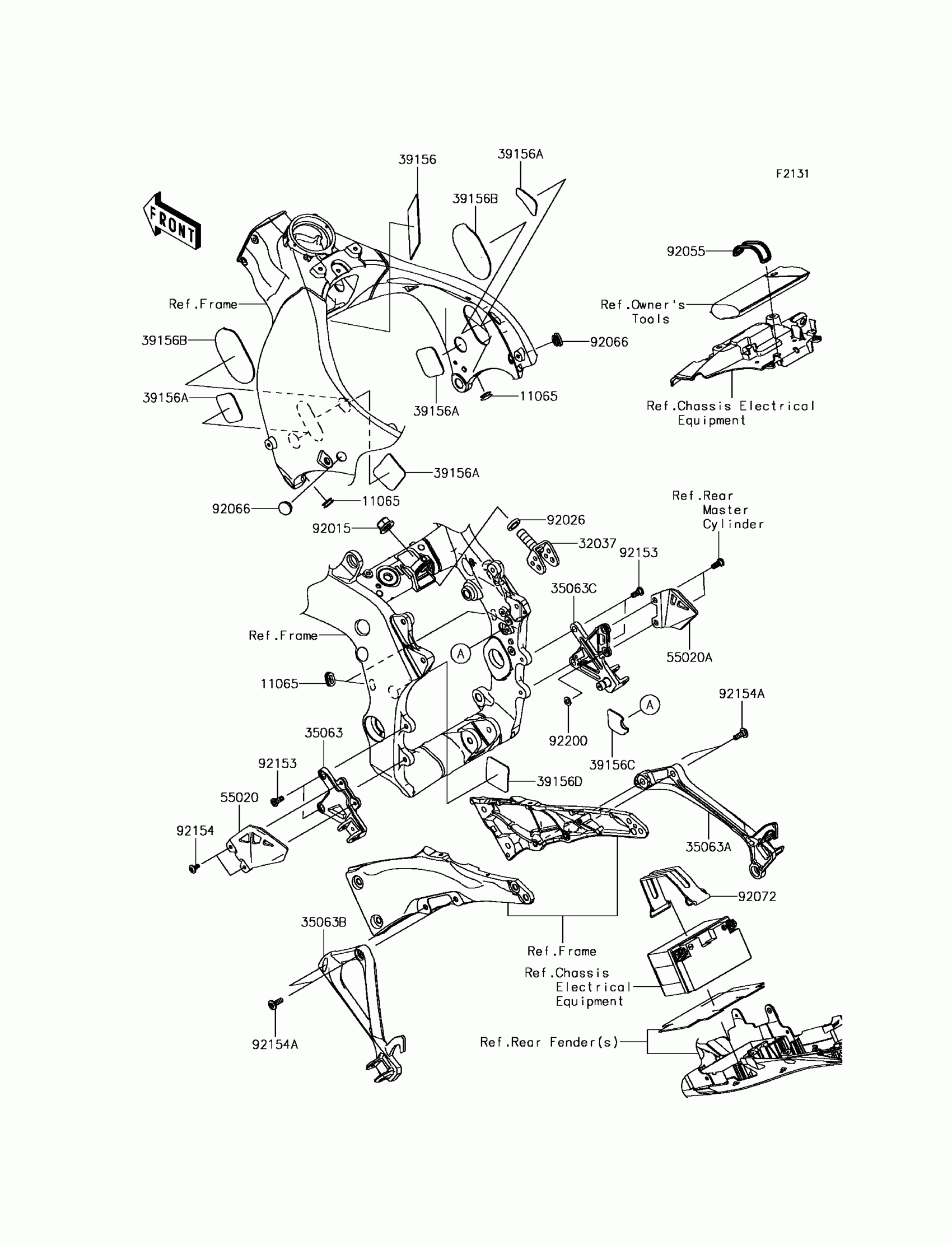

Kawasaki Ninja ZX-10R KRT Edition Frame Fittings Diagram

Description

Price

11065

CAP

11065-0095

$3.01

32037

BRACKET-SHOCKABSORBER

32037-0149

$35.27

35063

STAY,FR STEP,LH,F.S.BLACK

35063-0697-18R

$122.42

35063A

STAY,RR STEP,RH,F.S.BLACK

35063-0700-18R

$128.75

35063B

STAY,RR STEP,LH,F.S.BLACK

35063-0852-18R

$127.98

35063C

STAY,FR STEP,RH,F.S.BLACK

35063-1331-18R

$136.87

39156

PAD,50X115X2

39156-0923

$2.66

39156A

PAD,55X55X2

39156-1961

$2.64

39156B

PAD,76X110X2

39156-1962

$4.73

39156C

PAD,45X50.5X2

39156-1964

$2.20

39156D

PAD,55.5X55.5X0.5

39156-2116

$2.64

55020

GUARD,FR STEP,LH

55020-0569

$40.00

55020A

GUARD,FR STEP,RH

55020-1944

$44.77

92015

NUT,FLANGED,16MM

92015-1316

$19.50

92026

SPACER,16.5X26X5.2

92026-0813

$7.46

92055

RING-O,54.6X5.7

92055-0881

$3.20

92066

PLUG,17MM

92066-1320

$3.69

92072

BAND,L=168

92072-1306

$10.44

92153

BOLT,SOCKET,8X20

92153-1621

$1.57

92154

BOLT,SOCKET,6X14

92154-1735

$1.62

92154A

BOLT,SOCKET,8X23

92154-1968

$2.11

92200

WASHER,8.4X16X1.6

92200-0807

$3.39
