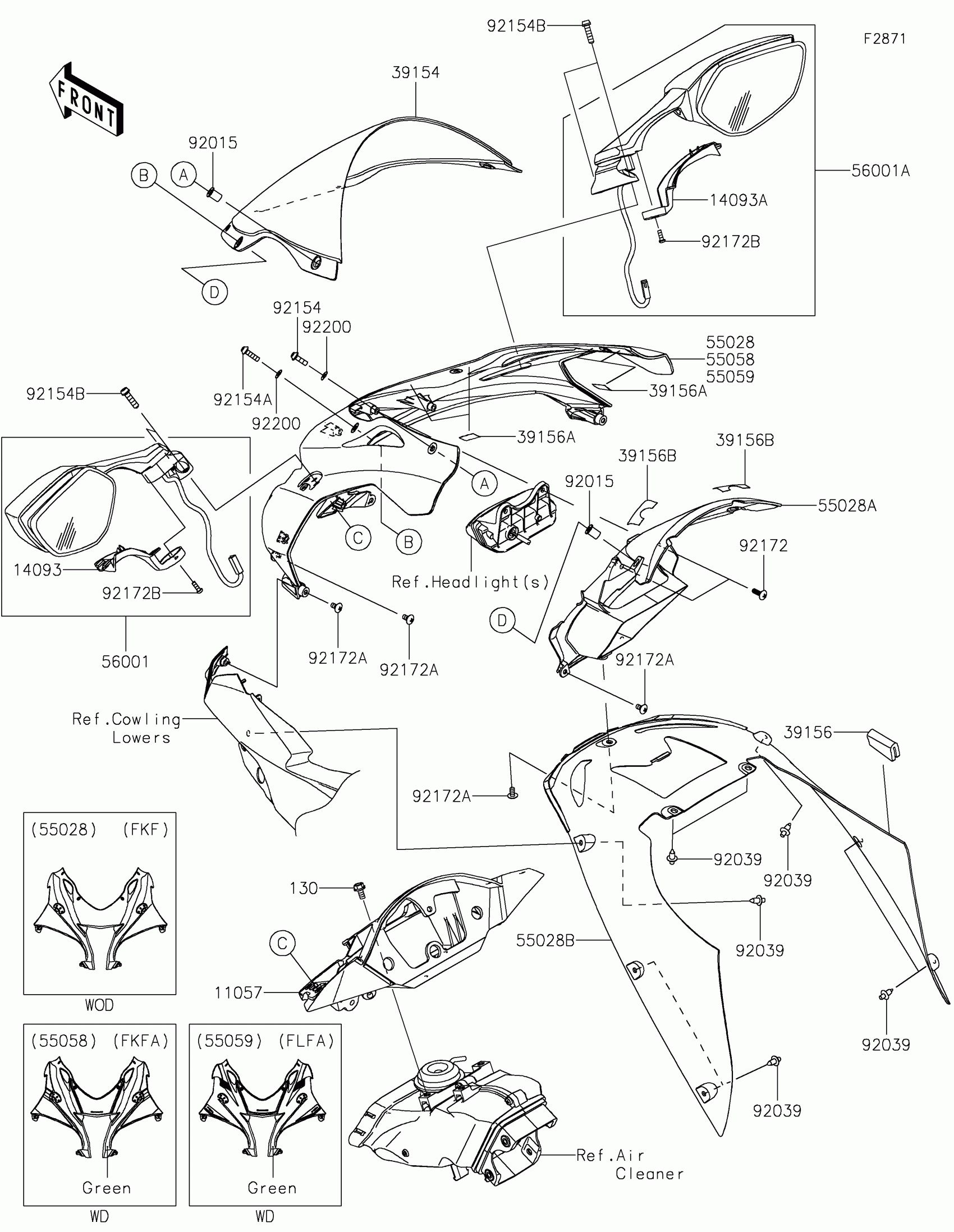

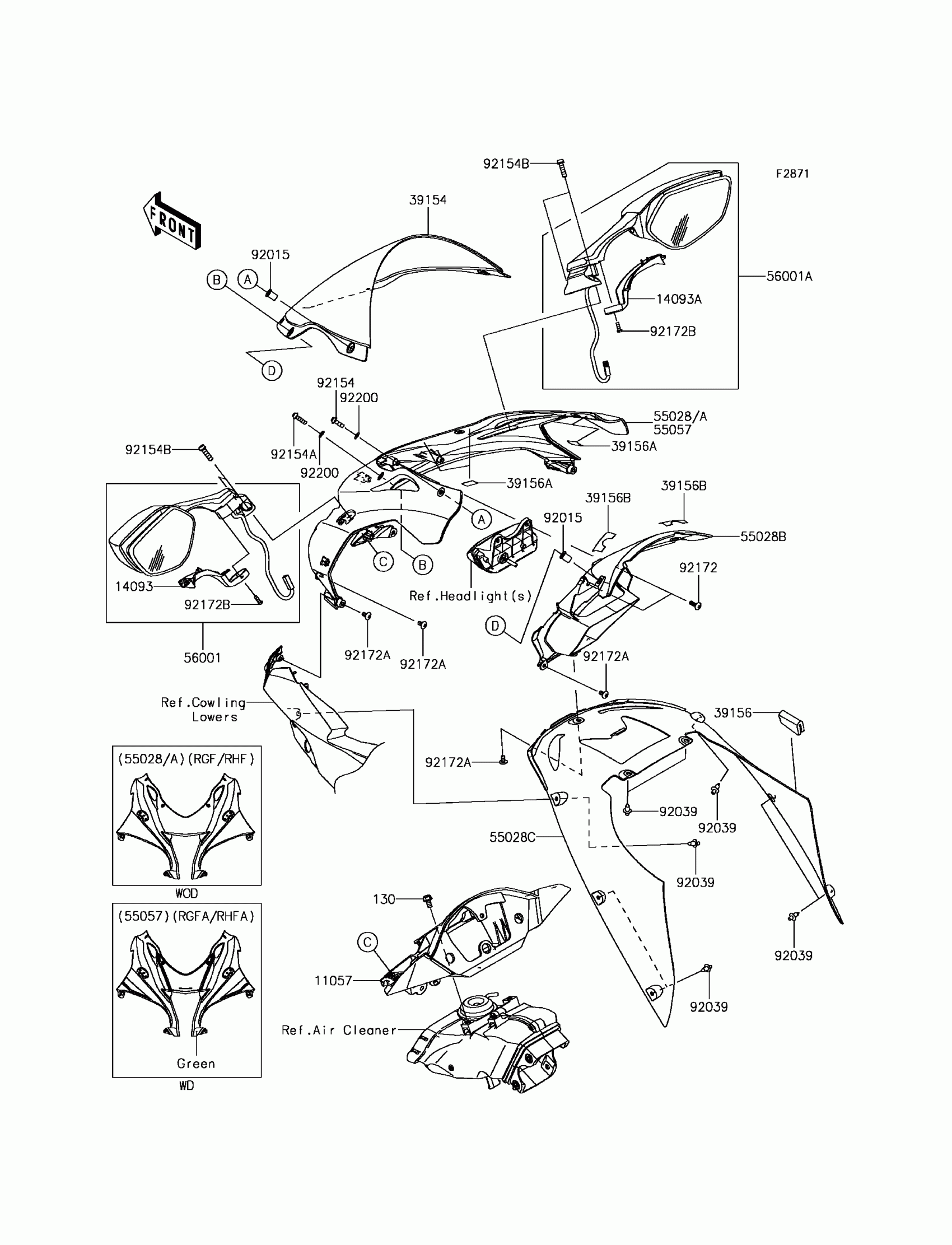

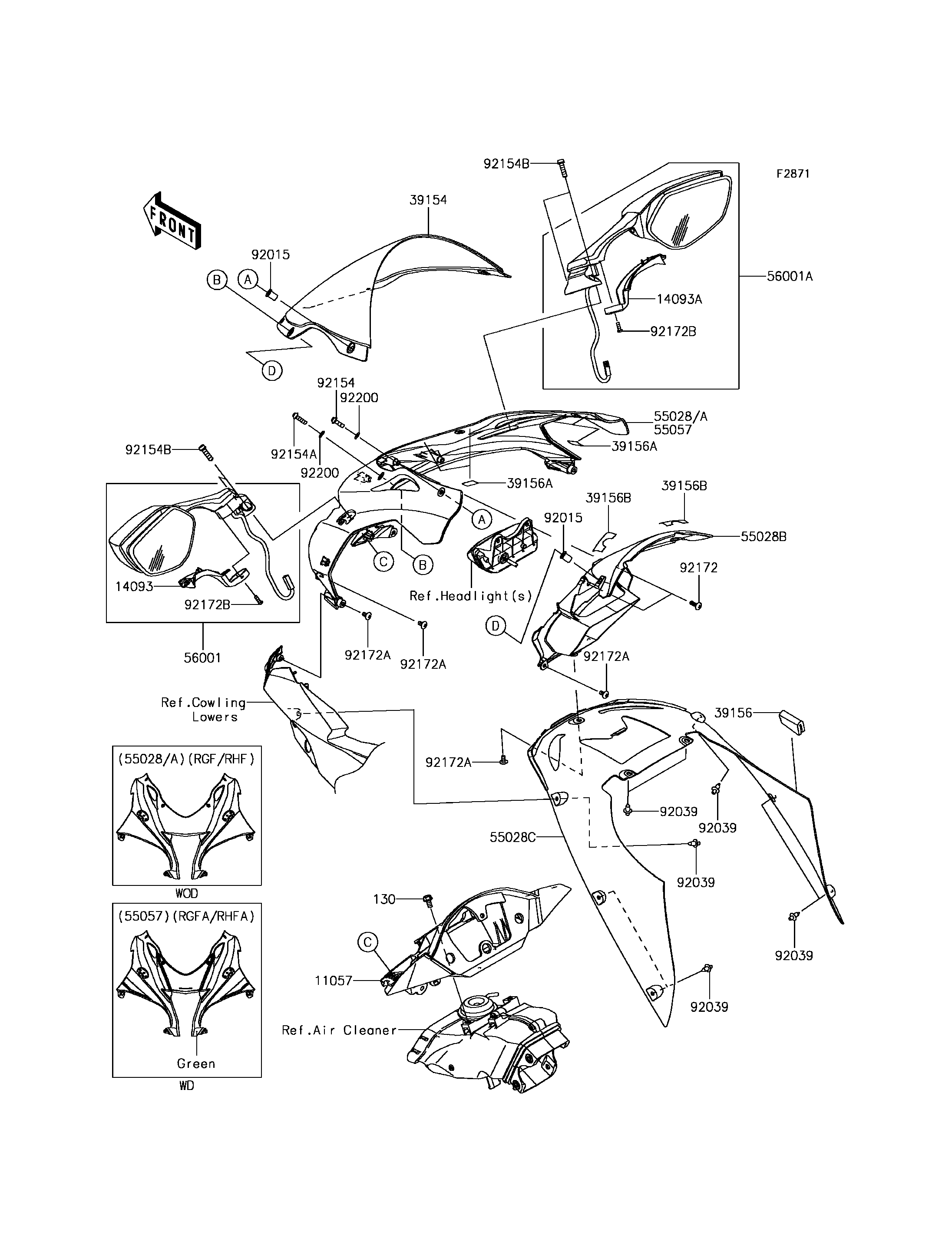

Kawasaki Ninja ZX-10R KRT Edition Cowling Diagram

Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.25

11057

BRACKET,METER

11057-0072

$88.12

14093

COVER,MIRROR,LH

14093-0343

$11.66

14093A

COVER,MIRROR,RH

14093-0344

$11.66

39154

WINDSHIELD

39154-0351

$185.47

39156

PAD

39156-0292

$2.68

39156A

PAD,15X20X0.2

39156-1784

$0.98

39156B

PAD

39156-2105

$2.20

55028B

COWLING,RAM AIR

55028-0573

$49.45

55028C

COWLING,FR,CNT

55028-0578

$66.62

55057

COWLING,UPP,L.GREEN

55057-5096-777

Unavailable

56001

MIRROR-ASSY,LH

56001-0322

$338.23

56001A

MIRROR-ASSY,RH

56001-0323

$305.25

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET

92039-0068

$2.09

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X20

92154-0210

$1.54

92154B

BOLT,SOCKET,6X22

92154-1724

$1.77

92172

SCREW,TAPPING,5X16

92172-0175

$1.32

92172A

SCREW,TAPPING,5X10

92172-0335

$1.57

92172B

SCREW-PAN-CROS,4X10

92172-0871

$0.69

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.36
