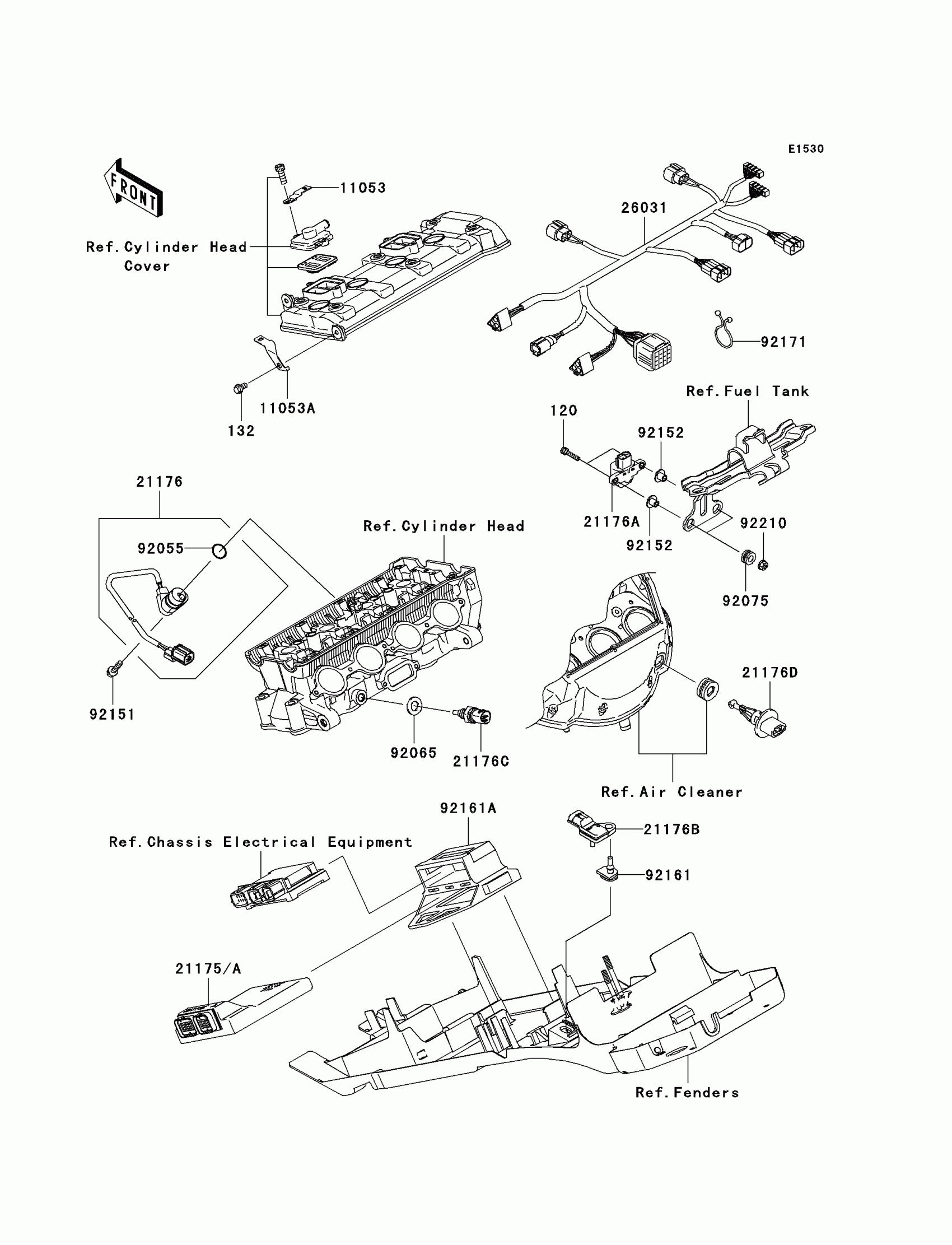

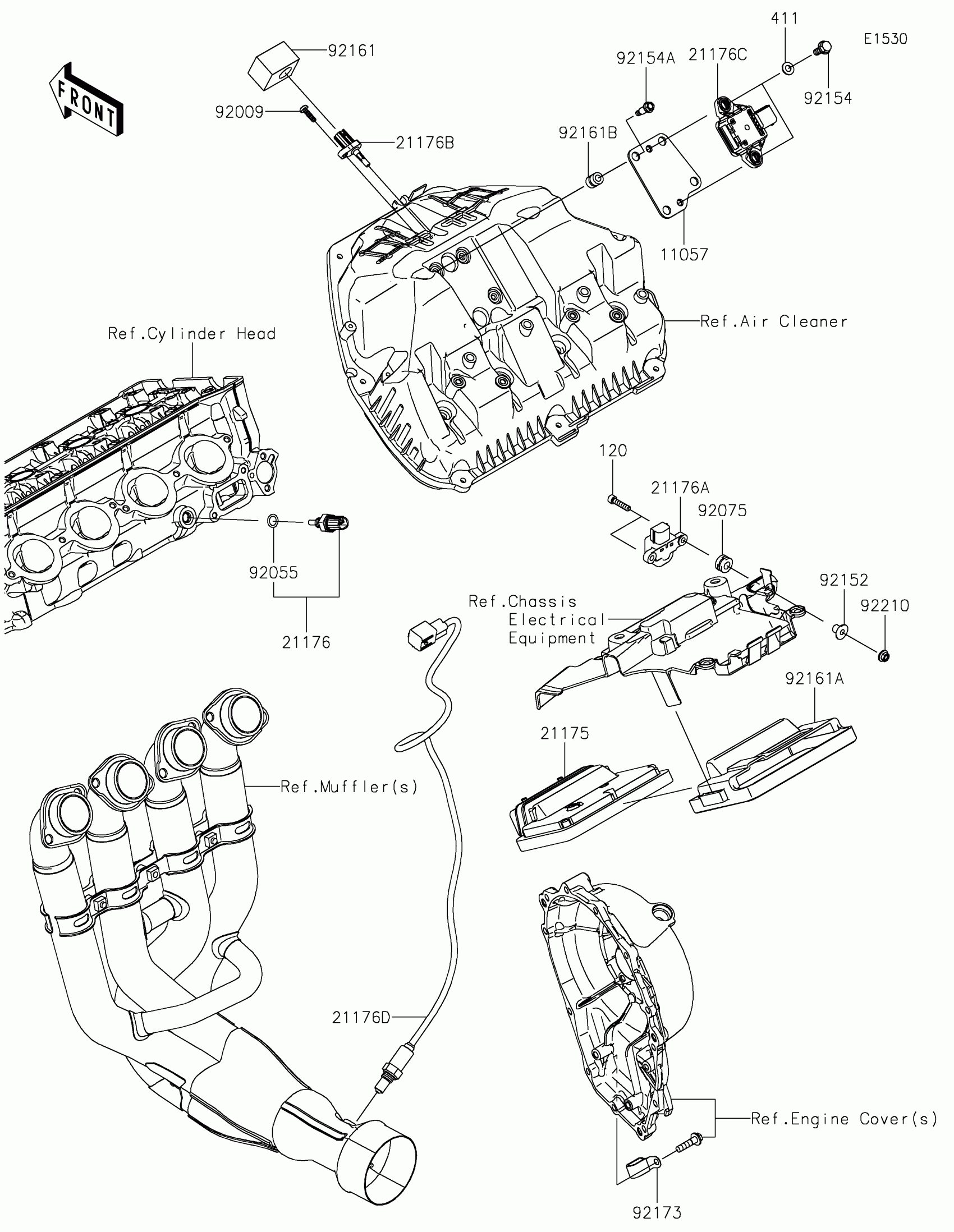

Kawasaki Ninja® ZX™-10R Fuel Injection Diagram

Description

Price

120

BOLT-SOCKET,5X22

120W0522

Unavailable

132

BOLT-FLANGED-SMALL,6X10

132L0610

Unavailable

11053

BRACKET

11053-0554

$4.42

11053A

BRACKET

11053-0555

$4.42

21176

SENSOR,CAM

21176-0024

Unavailable

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$77.23

21176B

SENSOR

21176-1118

$126.04

21176C

SENSOR,WATER TEMP

21176-1120

$62.85

21176D

SENSOR,AIR TEMP

21176-2106

$19.69

26031

HARNESS

26031-0204

$284.01

92055

RING-O

92055-1639

$2.15

92065

GASKET,12X22X2

92065-097

$0.66

92075

DAMPER

92075-1912

$5.07

92151

BOLT,FLANGED,6X16

92151-1774

Unavailable

92152

COLLAR

92152-0134

$7.54

92161

DAMPER

92161-0041

$4.59

92161A

DAMPER

92161-0092

$18.51

92171

CLAMP

92171-1185

$2.03

92210

NUT,FLANGED,5MM

92210-0007

$1.90

21175

CONTROL UNIT-ELECTRONIC

21175-0029

$1,301.09

21175A

CONTROL UNIT-ELECTRONIC

21175-0050

$1,173.31
