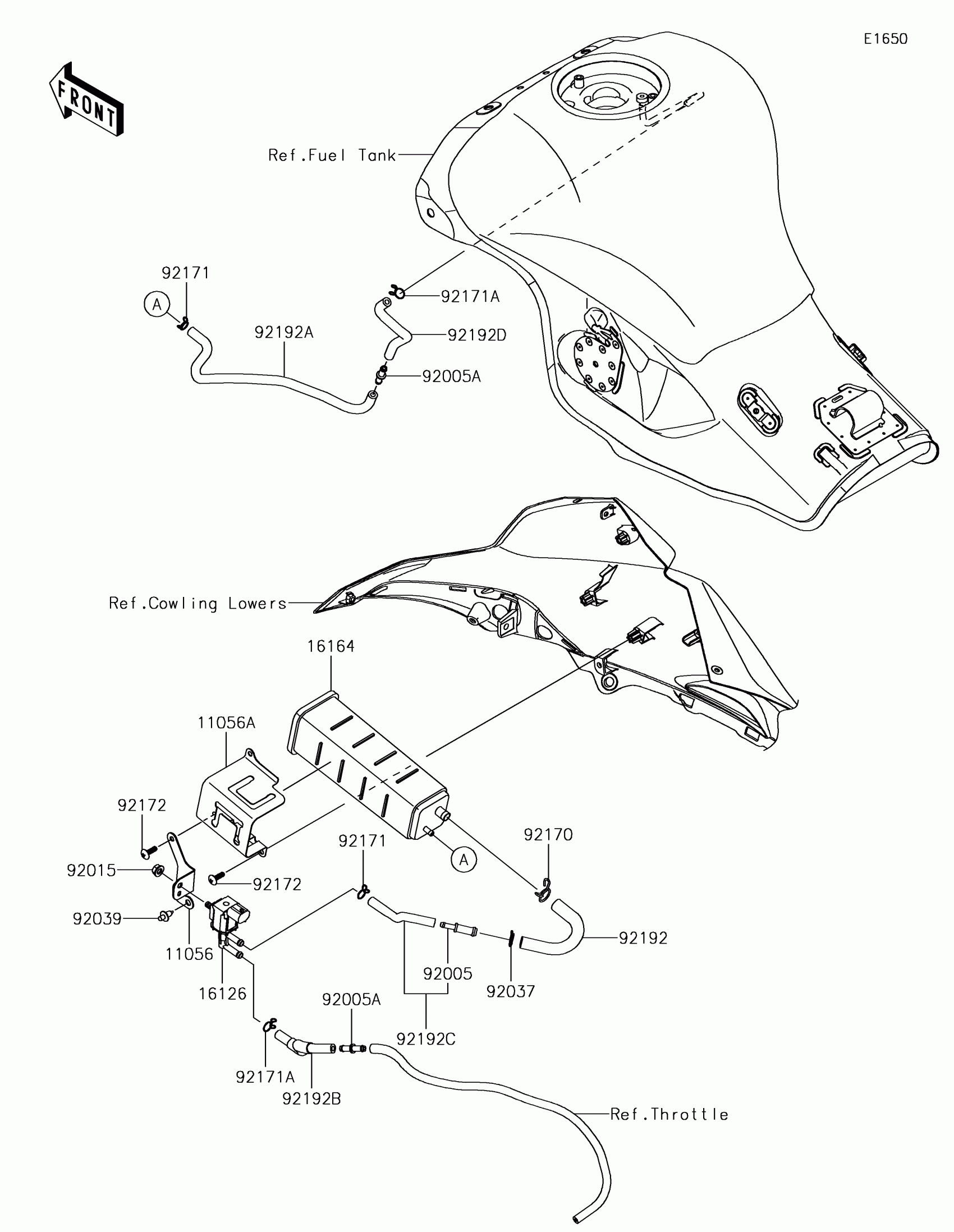

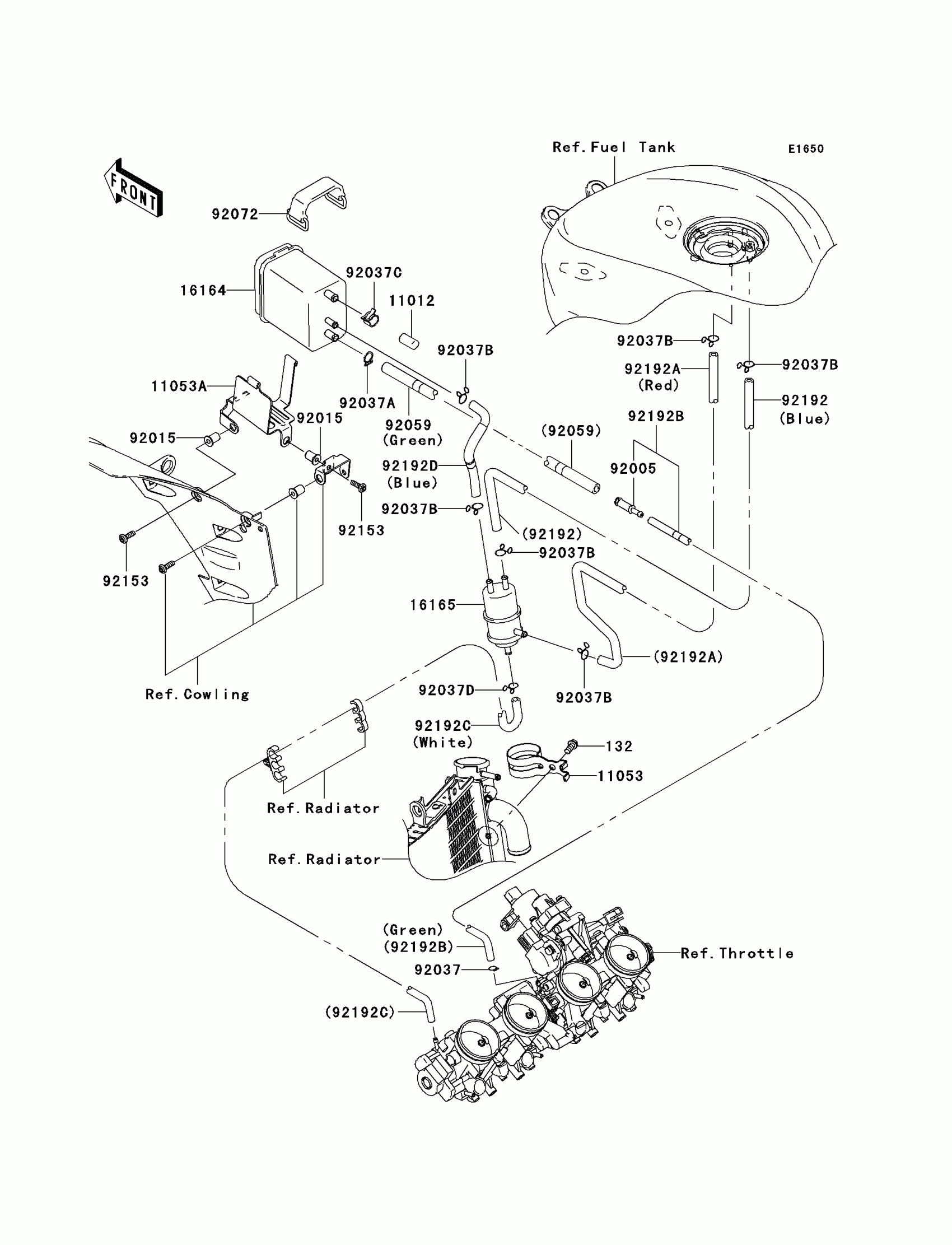

Kawasaki Ninja® ZX™-10R Fuel Evaporative System(CA) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132L0614

Unavailable

11012

CAP,CANISTER

11012-1388

$8.31

11053

BRACKET,SEPARATOR

11053-0453

$14.20

11053A

BRACKET,CANISTER

11053-0959

$20.93

16164

CANISTER

16164-1001

$148.49

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING

92005-0023

$5.25

92015

NUT,WELL,5MM

92015-1757

$5.58

92037

CLAMP,TUBE

92037-010

$2.99

92037A

CLAMP-HOSE

92037-1104

$1.09

92037B

CLAMP,TUBE

92037-147

$5.61

92037C

CLAMP,CANISTER

92037-1512

$5.71

92037D

CLAMP

92037-1712

$3.81

92059

TUBE,7X12X200,GREEN

92059-1642

Unavailable

92072

BAND,L=50

92072-1419

$12.21

92153

BOLT,SOCKET,5X16

92153-1244

$1.73

92192

TUBE,FUEL TANK-SEPARATOR,BLUE

92192-0042

$15.64

92192A

TUBE,SEPARATOR-FUEL TANK,RED

92192-0043

$17.22

92192B

TUBE,CANISTER-THROTTLE,GREEN

92192-0132

$23.71

92192C

TUBE,THROTTLE-SEPARATOR,WHITE

92192-0158

$17.22

92192D

TUBE,SEPARATOR-CANISTER,BLUE

92192-0162

Unavailable
