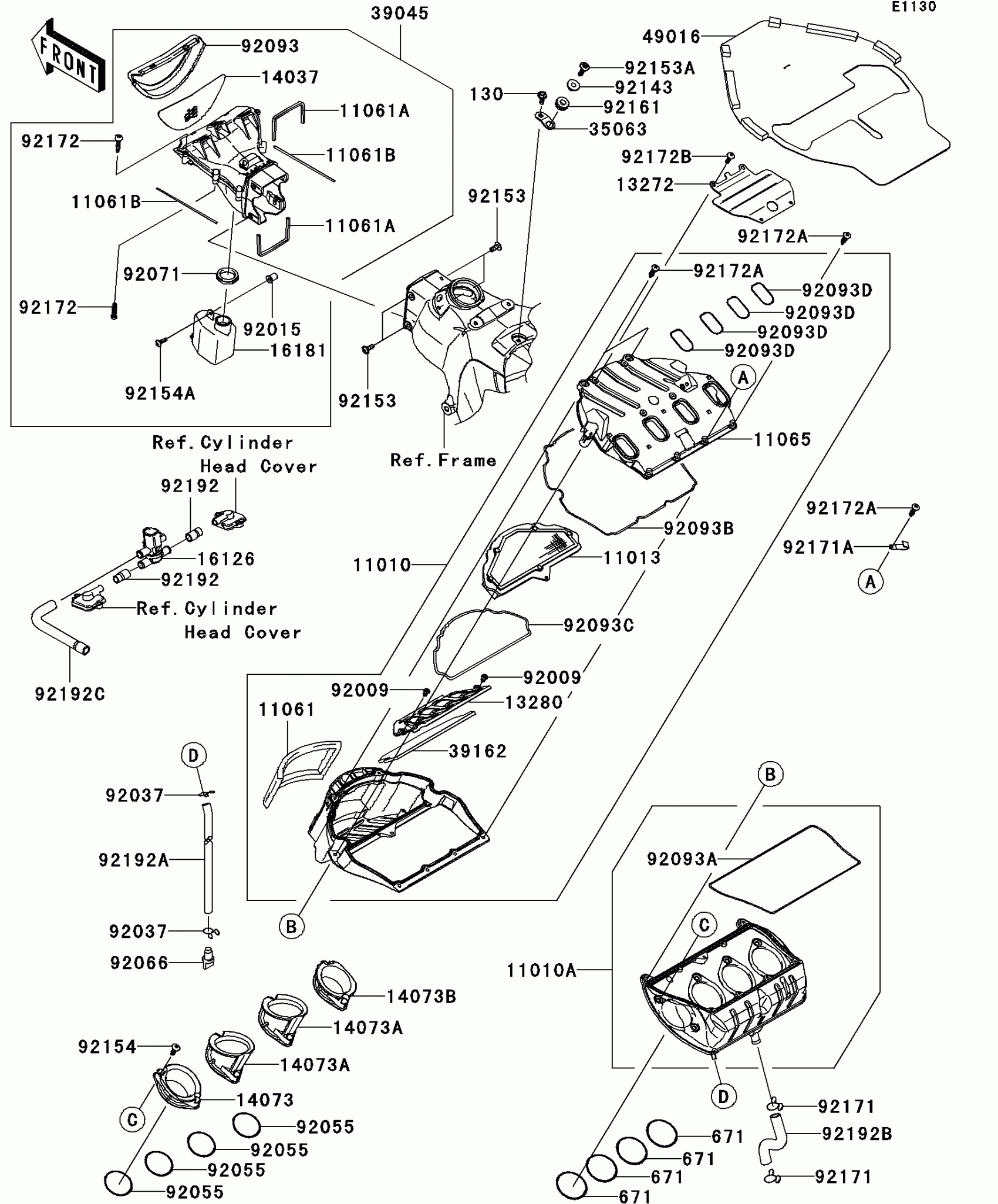

Kawasaki NINJA® ZX™-10R Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-0713

$419.94

11013

ELEMENT-AIR FILTER

11013-0041

$65.18

11061

GASKET

11061-0444

$3.64

11061A

GASKET

11061-0445

$4.92

13280

HOLDER

13280-0712

$20.07

14037

SCREEN

14037-0107

$45.34

14073

DUCT,SUB FUNNEL

14073-0294

$15.29

14073A

DUCT

14073-0295

$19.25

14073B

DUCT,FUNNEL,#1

14073-0712

$12.68

14073C

DUCT,FUNNEL,#3

14073-0713

$12.68

16073

INSULATOR

16073-0129

$4.53

16126

VALVE,AIR SWITCHING

16126-0038

$193.92

39045

DUCT-ASSY

39045-0056

$199.04

39156

PAD

39156-0922

$3.64

49033

NOZZLE-INJECTION

49033-0027

$118.68

49056

PIPE-INJECTION

49056-0032

$15.81

92005

FITTING

92005-0125

$10.88

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,L=45

92037-1539

$4.42

92055

RING-O,INJECTION NOZZLE

92055-0124

$2.09

92066

PLUG

92066-0717

$5.83

92066A

PLUG,DRAIN

92066-1211

$6.48

92093

SEAL

92093-0173

$8.05

92093A

SEAL

92093-0175

$1.42

92093B

SEAL

92093-0176

$3.19

92093C

SEAL

92093-0177

$16.63

92093D

SEAL

92093-0573

$11.90

92152

COLLAR,6.5X10.5X13.1

92152-0547

$4.27

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92154

BOLT,SOCKET,6X30

92154-0435

$1.24

92154A

BOLT,FLANGED,BUTTON,6X18

92154-0996

$1.62

92160

DAMPER

92160-1162

$3.81

92161

DAMPER

92161-0973

$14.22

92161A

DAMPER

92161-0974

$14.22

92161B

DAMPER

92161-0984

$13.46

92170

CLAMP

92170-1060

$7.93

92171

CLAMP

92171-0391

$3.71

92172

SCREW,TAPPING,5X20

92172-0009

$1.98

92172A

SCREW,TAPPING,5X16

92172-0482

$0.95

92172B

SCREW,TAPPING,5X20

92172-0483

Unavailable

92173

CLAMP

92173-0224

Unavailable

92192

TUBE,7X10X500

92192-0156

$17.22

92192A

TUBE

92192-0886

$18.51

92192B

TUBE,12X17.6X38

92192-0887

$15.32

92192C

TUBE,ASV-A/C

92192-0888

$13.71

92192D

TUBE,BREATHER

92192-0889

$12.73

92200

WASHER,6.5X22X1.6

92200-1087

$3.01

670

O RING,8MM

670E1508

$1.32
