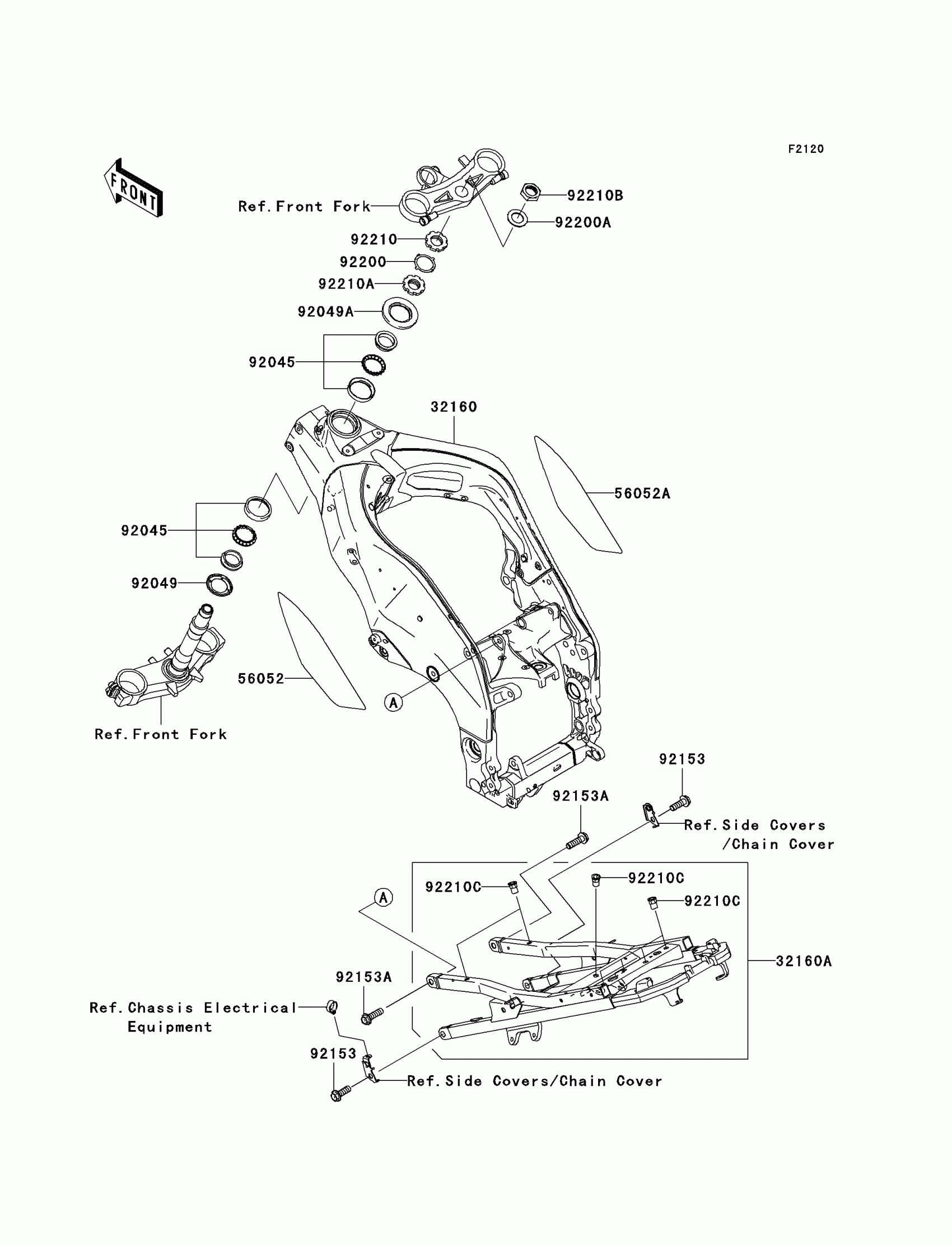

2004 Kawasaki Ninja® ZX™-10R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2004 Kawasaki Ninja® ZX™-10R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2004 Kawasaki Ninja® ZX™-10R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

FRAME-COMP,FR,F.S.BLACK

32160-0021-8F

1

$1,177.06

In stock

32160A

FRAME-COMP,RR,F.S.BLACK

32160-0024-8F

1

$1,099.44

In stock

56052

1

$28.47

In stock

56052A

1

$28.47

In stock

92045

1

$41.48

In stock

92049

SEAL-OIL,DS35X55X4

92049-0022

1
Out of stock

92049A

SEAL-OIL,XMH 43 75 6.4J

92049-1382

1
Out of stock

92153

BOLT,FLANGED,10X30

92153-0801

1
Out of stock

92153A

BOLT,FLANGED,10X35

92153-0802

1
Out of stock

92200

WASHER

92200-0036

1
Out of stock

92200A

WASHER,28.5X42X1.6

92200-0110

1
Out of stock

92210

NUT,35MM

92210-0095

1
Out of stock

92210A

NUT,35MM

92210-0096

1
Out of stock

92210B

NUT,28MM

92210-0097

1
Out of stock

92210C

NUT,6MM

92210-0099

1
Out of stock
