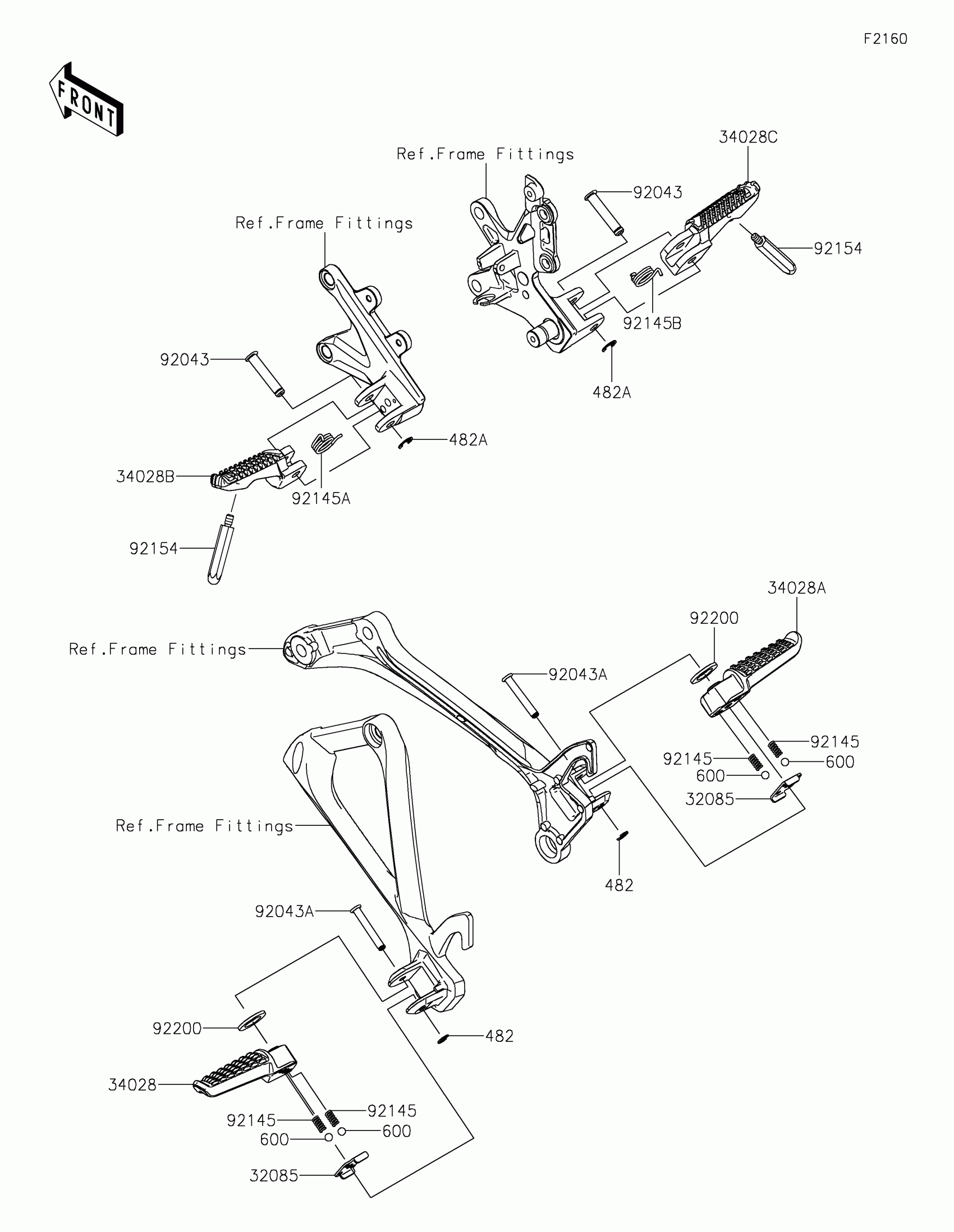

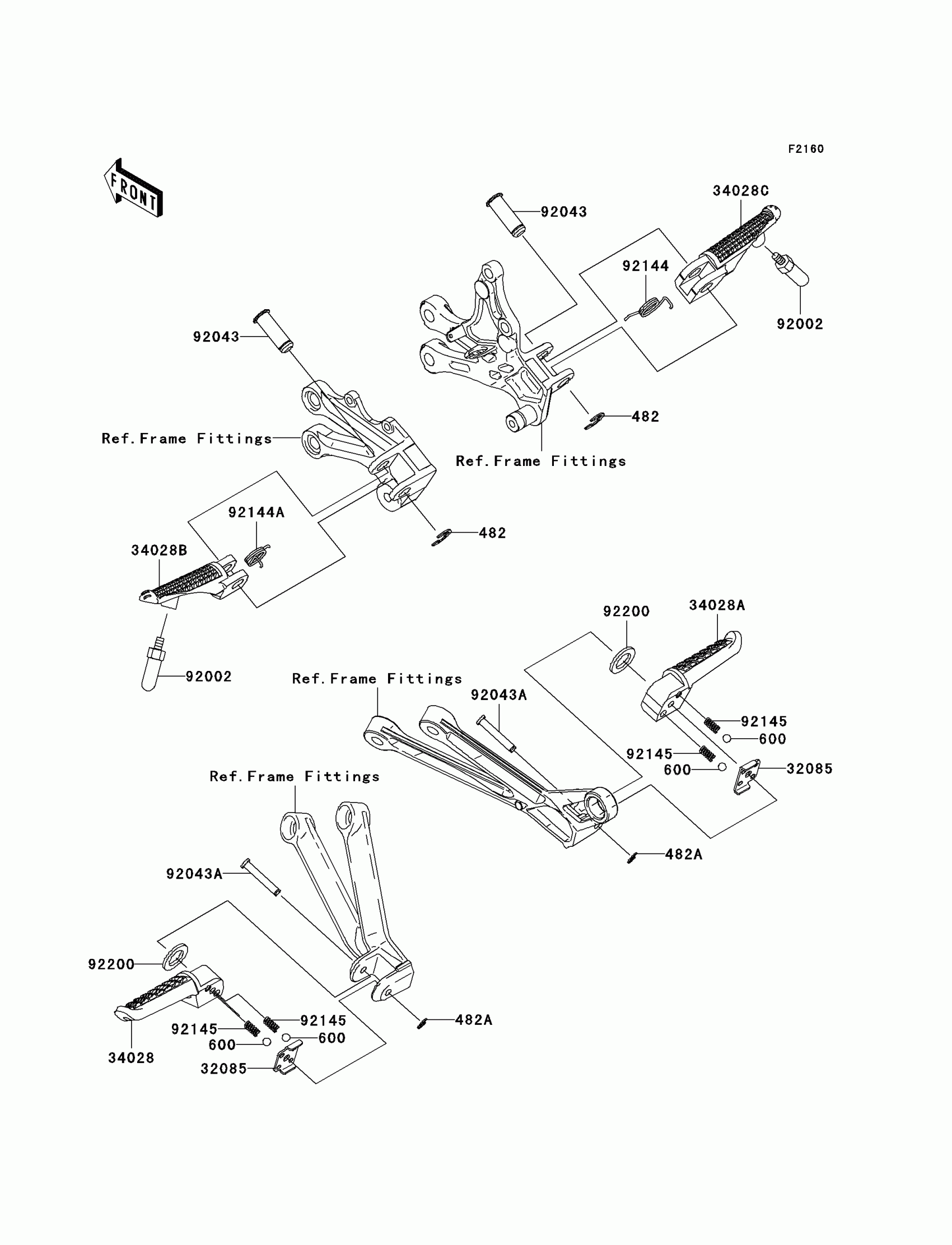

Kawasaki Ninja® ZX™-10R Footrests Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.66

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.04

600

BALL-STEEL,1/4

600A0800

$0.59

32085

STOPPER,REAR STEP

32085-0047

$4.23

34028

STEP,RR,LH

34028-0004

$73.38

34028A

STEP,RR,RH

34028-0005

$73.38

34028B

STEP,FR,LH

34028-0012

$92.82

34028C

STEP,FR,RH

34028-0013

$92.82

92002

BOLT,BANK SENSOR

92002-1995

$10.80

92043

PIN,12X36.5

92043-0028

$6.75

92043A

PIN,6X40

92043-1595

$1.68

92144

SPRING,STEP RETURN

92144-1567

$4.88

92144A

SPRING,STEP RETURN

92144-1568

$4.88

92145

SPRING

92145-1319

$1.33

92200

WASHER,16X26X2.3

92200-0043

$5.84
