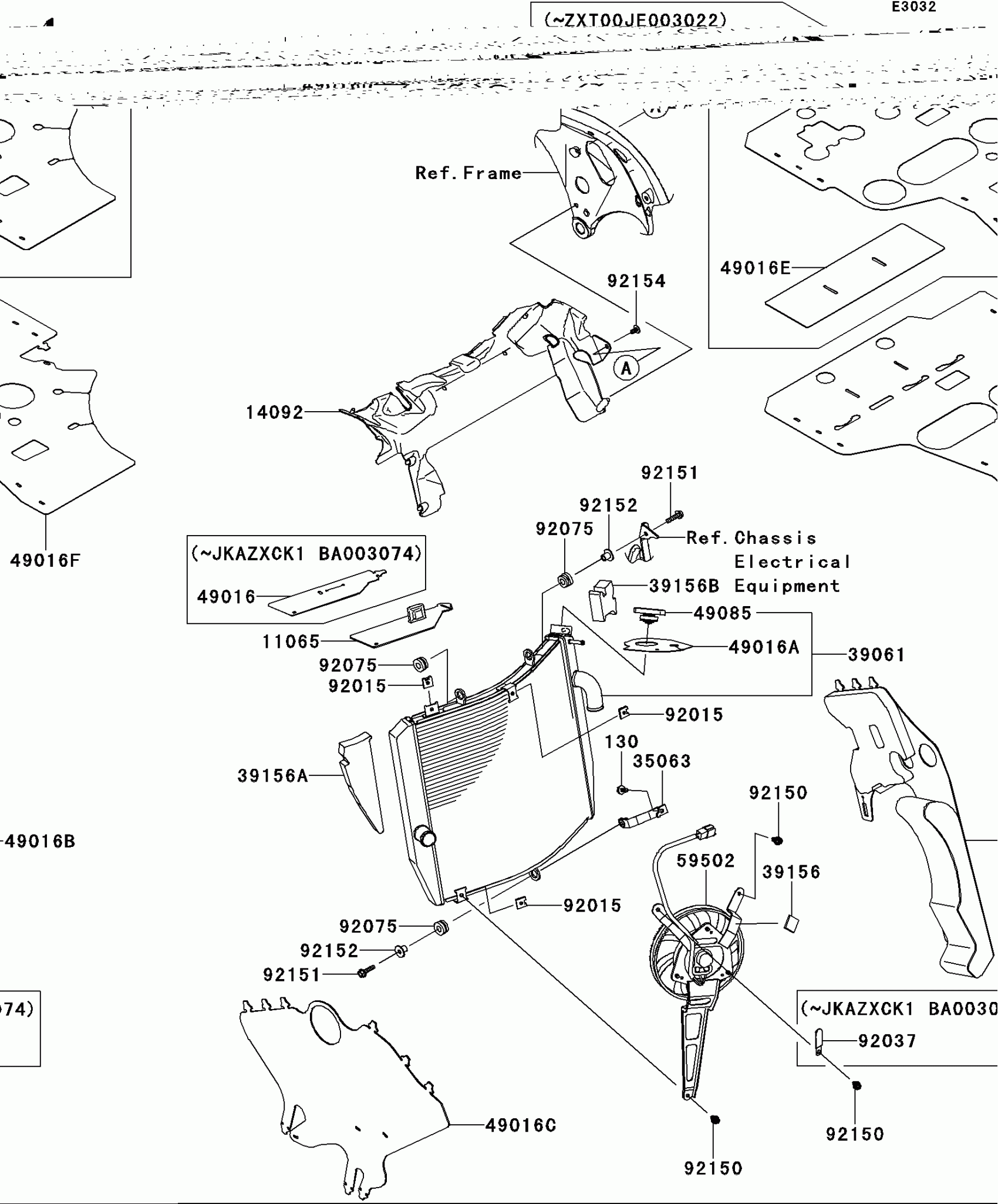

Kawasaki NINJA® ZX™-10R ABS Radiator Diagram

Description

Price

11065

CAP

11065-0737

$19.81

14092

COVER

14092-0945

$59.93

35063

STAY

35063-0701

$13.81

39061

RADIATOR-ASSY

39061-0566

$883.21

39156

PAD

39156-0285

$1.20

39156A

PAD

39156-0669

$19.19

39156B

PAD

39156-0671

$7.12

49016A

COVER-SEAL

49016-0085

$3.58

49016B

COVER-SEAL,ENGINE RH

49016-0567

$89.09

49016C

COVER-SEAL,ENGINE LH

49016-0569

$100.44

49016F

COVER-SEAL

49016-0576

$57.16

49085

CAP-ASSY-PRESSURE

49085-1078

$45.97

59502

FAN-ASSY

59502-0049

Unavailable

92015

NUT

92015-1487

$3.64

92075

DAMPER,RUBBER

92075-1123

$3.81

92150

BOLT,6X12

92150-1186

$2.56

92151

BOLT,FLANGED,6X25

92151-1225

$1.76

92152

COLLAR

92152-1074

$4.67

92154

BOLT,SOCKET,6X12

92154-0204

$1.47

130

BOLT-FLANGED,6X14

130BA0614

$0.97
