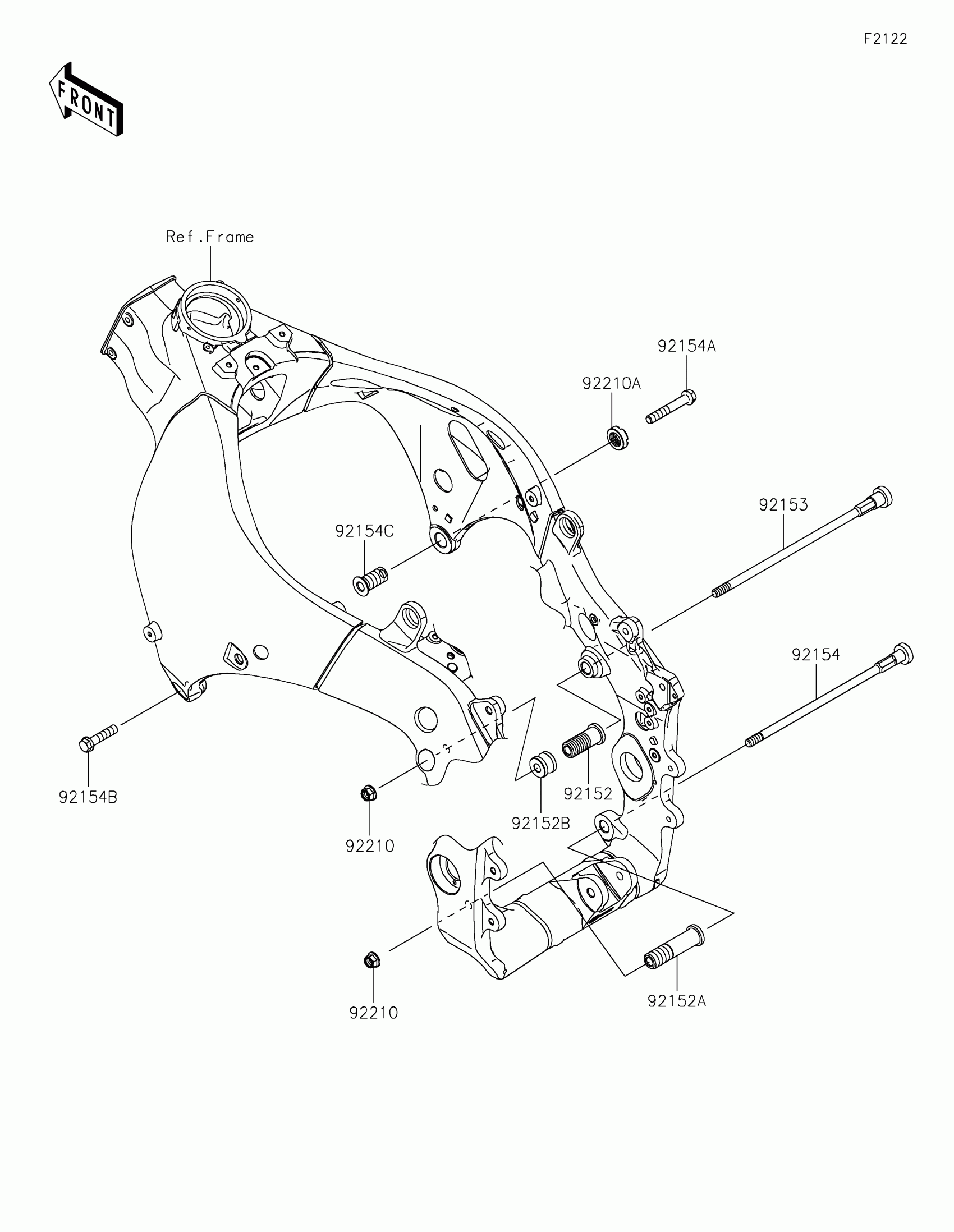

Kawasaki NINJA® ZX™-10R ABS Engine Mount Diagram

#

Description
Price

92152

COLLAR,ENGINE MOUNT

92152-0076

$25.41

92152A

COLLAR,10.5X20X80

92152-0860

$55.15

92152B

COLLAR

92152-0984

$25.24

92153

BOLT,SOCKET,10X279

92153-1329

$38.57

92153A

BOLT,FLANGED,10X65

92153-1931

$5.91

92154

BOLT,FLANGED,10X40

92154-0094

$4.18

92154A

BOLT,ENGINE MOUNT,18MM

92154-0249

$30.73

92154B

BOLT,SOCKET,10X260

92154-0386

$51.06

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$2.90

92210A

NUT,CASTLE,18MM

92210-1390

$14.34
