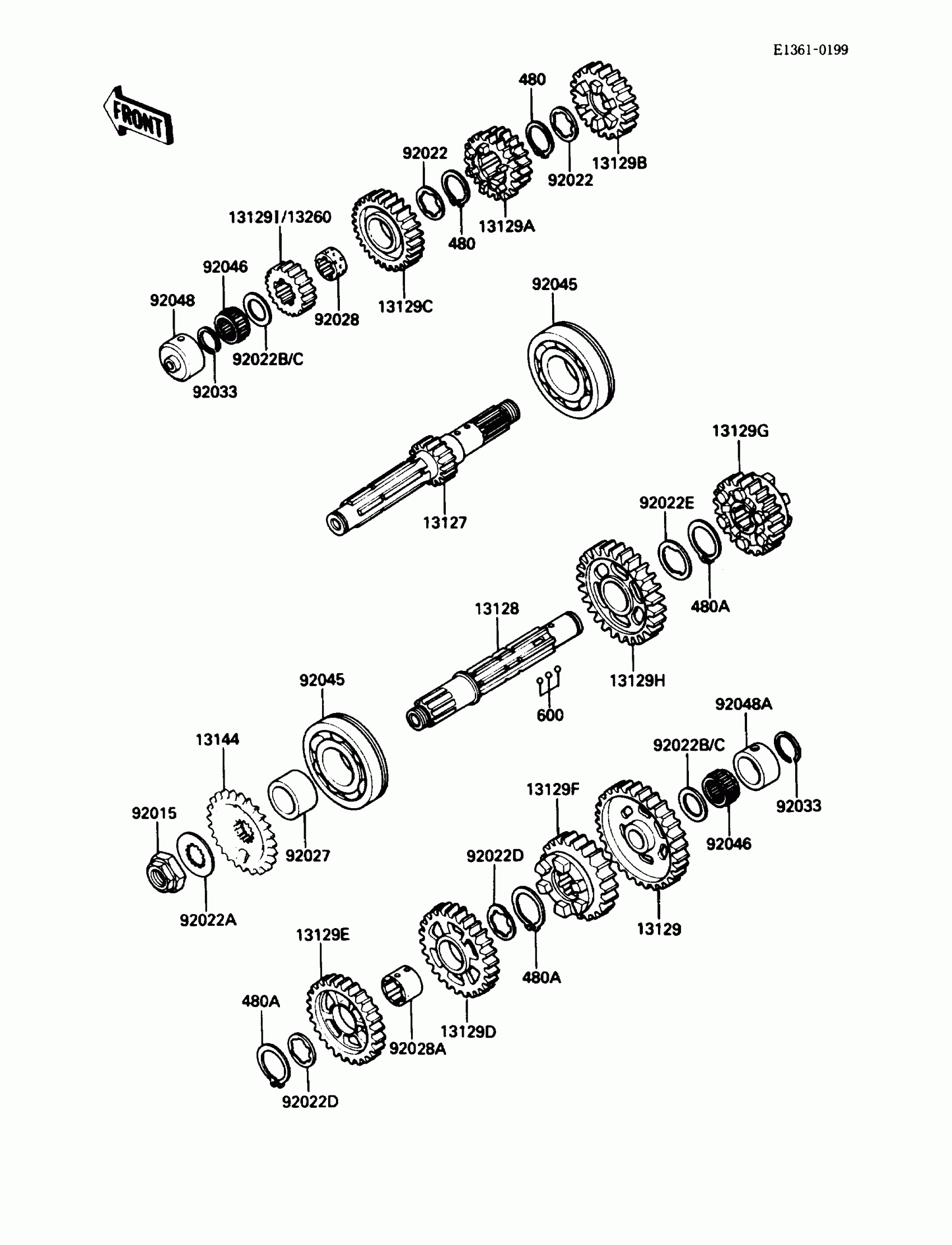

Find the part on the Transmission diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1989 Kawasaki Ninja® ZX™-10 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

480

CIRCLIP-TYPE-C,28MM

480J2800

1
Out of stock

480A

CIRCLIP

480J2900

1
Out of stock

600

BALL-STEEL,5/32

600A0500

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT,15T

13127-1146

1
Out of stock

13128

SHAFT-TRANSMISSION OUTPUT

13128-1113

1
Out of stock

13129

GEAR,OUTPUT LOW,42T

13129-1534

1
Out of stock

13129A

GEAR,INPUT 3RD&4TH,24T&22T

13129-1664

1
Out of stock

13129B

GEAR,INPUT 5TH,26T

13129-1665

1
Out of stock

13129C

GEAR,INPUT TOP,28T

13129-1666

1
Out of stock

13129D

GEAR,OUTPUT 3RD,35T

13129-1669

1
Out of stock

13129E

GEAR,OUTPUT 4TH,32T

13129-1670

1
Out of stock

13129F

GEAR,OUTPUT 5TH,30T

13129-1671

1
Out of stock

13129G

GEAR,OUTPUT TOP,29T

13129-1672

1
Out of stock

13129H

GEAR,OUTPUT 2ND,38T

13129-1934

1
Out of stock

13144

SPROCKET-OUTPUT,17T

13144-1146

1
Out of stock

92015

NUT,20MM

92015-1210

1
Out of stock

92022

WASHER,TOOTHED,26X35.5X1.5

92022-1077

1
Out of stock

92022A

WASHER,TOOTHED,23.9X45X1.0

92022-1336

1
Out of stock

92022B

WASHER,22.3X35X1.6

92022-212

1
Out of stock

92022C

WASHER,22.3X35X1.2

92022-213

—
Out of stock

92022D

WASHER,TOOTHED,30.3X40X1.5

92024-043

1
Out of stock

92022E

WASHER,TOOTHED,30.5X38X1

92024-069

1
Out of stock

92027

COLLAR,28X40X23.5

92027-1711

1
Out of stock

92028

BUSHING,TOP GEAR

92028-1124

1
Out of stock

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

1
Out of stock

92033

RING-SNAP,20X25.5X1.2

92033-025

1
Out of stock

92045

BEARING-BALL

92045-1186

1
Out of stock

92046

BEARING-NEEDLE,FWF-223014

92046-031

1
Out of stock

92048

RACE,INPUT SHAFT

92048-1052

1
Out of stock

92048A

RACE,30X38X15

92048-1053

1
Out of stock

13129I

GEAR,INPUT 2ND,19T

13129-1953

1
Out of stock

13260

GEAR,INPUT 2ND,19T

13260-1065

1
Out of stock
