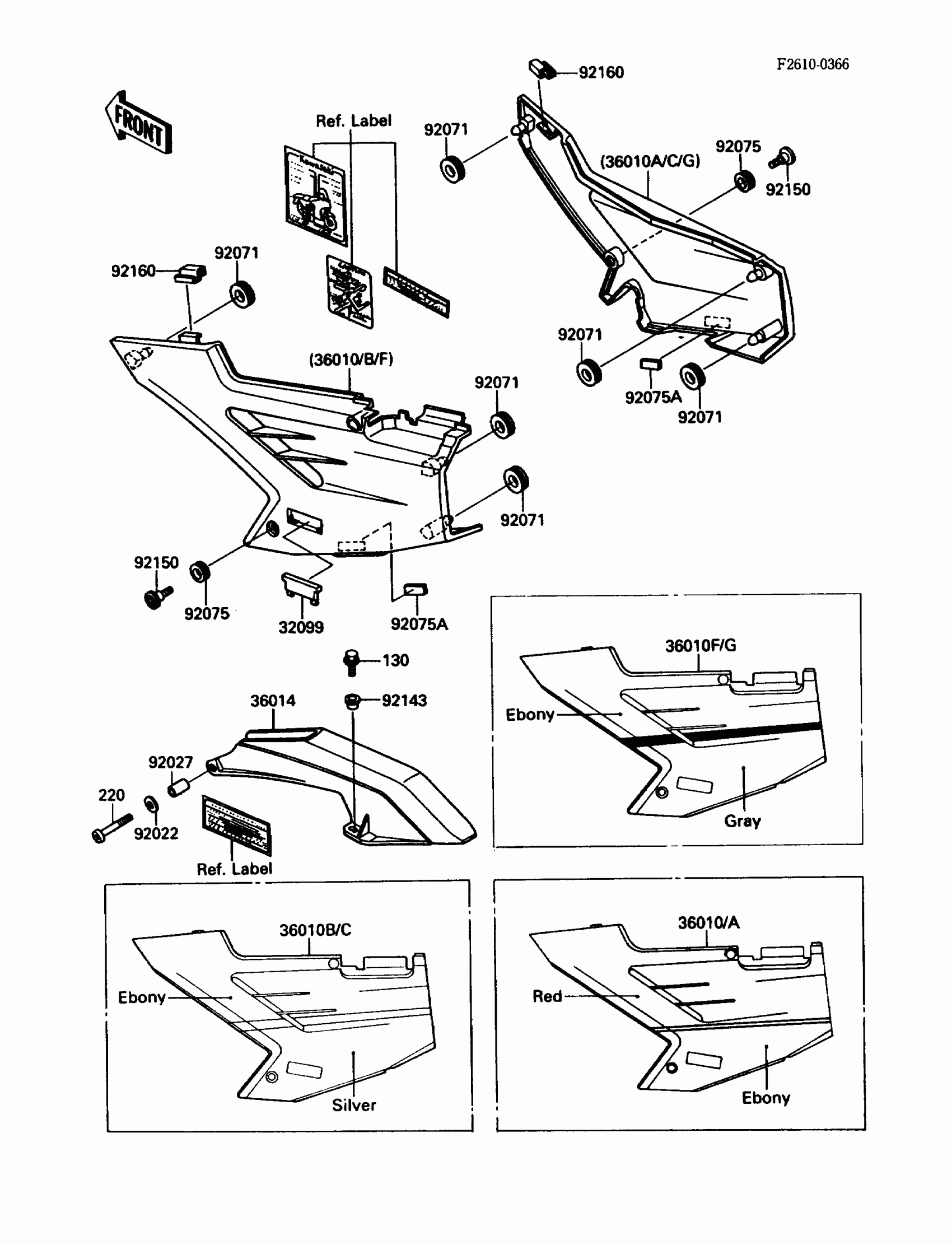

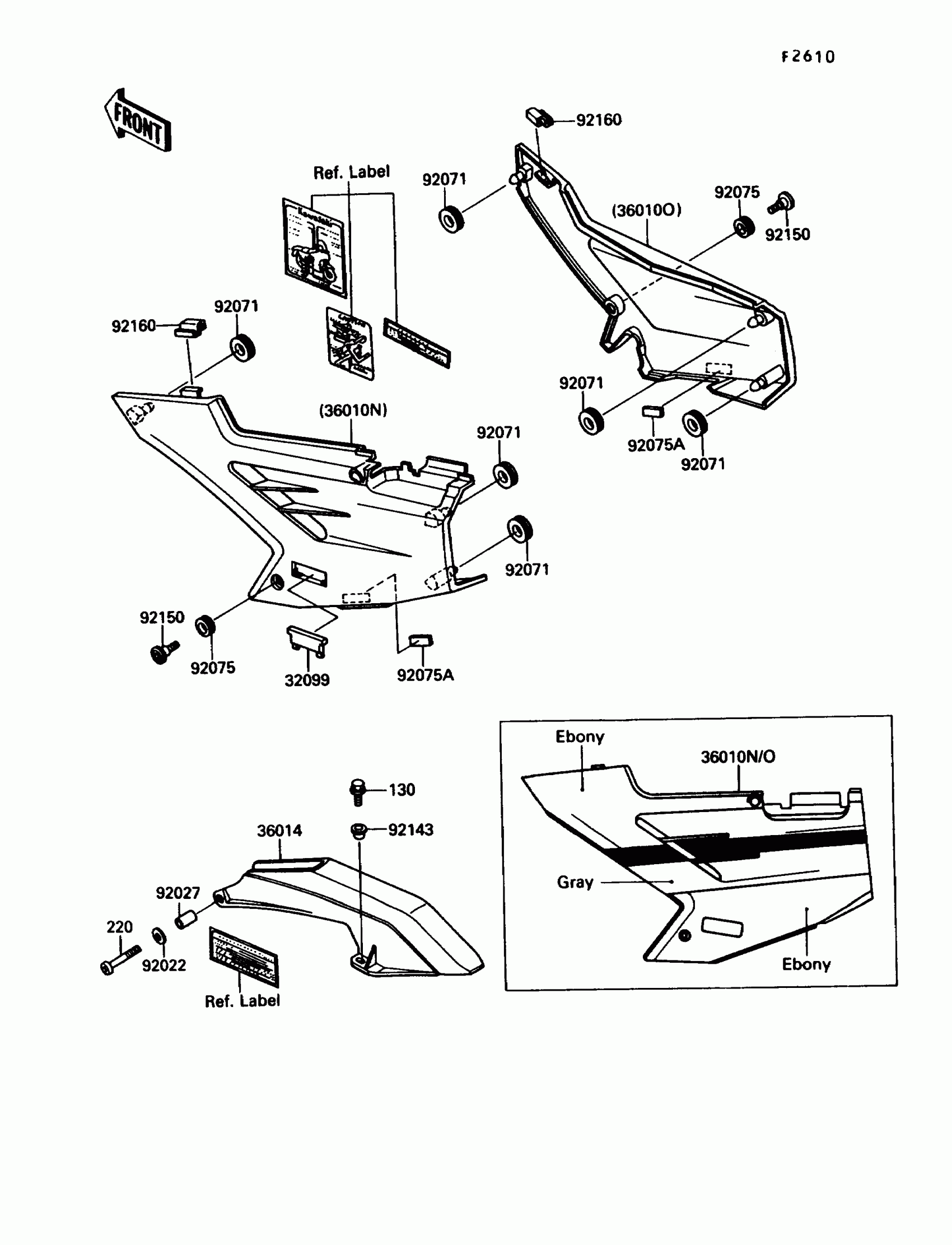

Kawasaki Ninja® ZX™-10 Side Covers/Chain Cover Diagram

Description

Price

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

220

SCREW-PAN-CROS,6X35,B

220C0635

$4.75

32099

CASE,SIDE COVER

32099-1116

$8.39

36010F

COVER-SIDE,LH,EBONY/GRAY

36010-5103-T4

Unavailable

36010G

COVER-SIDE,RH,EBONY/GRAY

36010-5104-T4

Unavailable

36014

CASE-CHAIN

36014-1151

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92027

COLLAR,6.8X10X20

92027-1856

$4.71

92071

GROMMET

92071-056

$3.25

92075

DAMPER

92075-1634

$3.57

92075A

DAMPER

92075-1902

$4.61

92143

COLLAR,L=6.6

92143-1088

$4.68

92150

BOLT,SOCKET,6MM

92150-1154

$5.99

92160

DAMPER

92160-1085

$4.69
