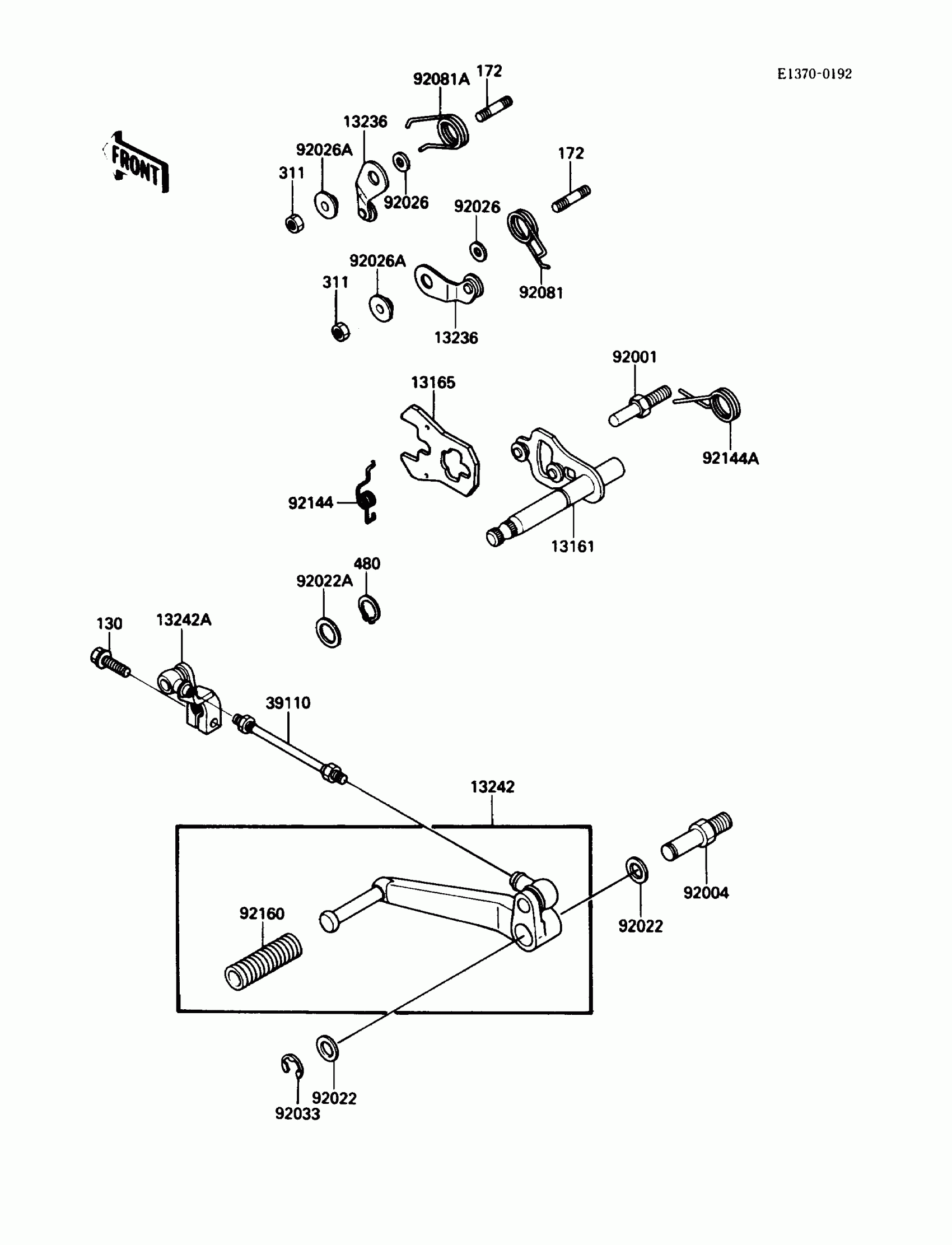

Kawasaki Ninja® ZX™-10 Gear Change Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X20

130S0620

Unavailable

172

BOLT-STUD,6X14

172G0614

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99

13161

LEVER-COMP-CHANGE SHAFT

13161-1155

$86.76

13165

PAWL

13165-1120

$13.39

13236

LEVER-COMP,GEAR POSITION

13236-1103

$18.53

13242

LEVER-ASSY-CHANGE,PEDAL

13242-1191

$119.46

13242A

LEVER-ASSY-CHANGE,BOSS

13242-1242

$55.75

39110

ROD-ASSY-TIE,CHANGE LEVER

39110-1015

$13.31

92001

BOLT,RETURN SPRING

92001-1455

$4.17

92004

STUD,CHANGE PEDAL,PIVOT

92004-1164

$17.07

92022

WASHER,12.5X22X1.2

92022-1593

$4.00

92022A

WASHER,13.3X18X1

92022-1772

$3.98

92026

SPACER,6.3X12X1.0

92026-094

$8.92

92026A

SPACER

92026-1217

$4.18

92033

RING-SNAP,TYPE-E,10MM

92033-1178

$3.81

92081

SPRING

92081-1645

$13.03

92081A

SPRING

92081-1742

$10.54

92144

SPRING

92144-1029

$5.93

92144A

SPRING,CHANGE PEDAL RETURN

92144-1345

$16.34

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85
