1989 Kawasaki Ninja® ZX™-10 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

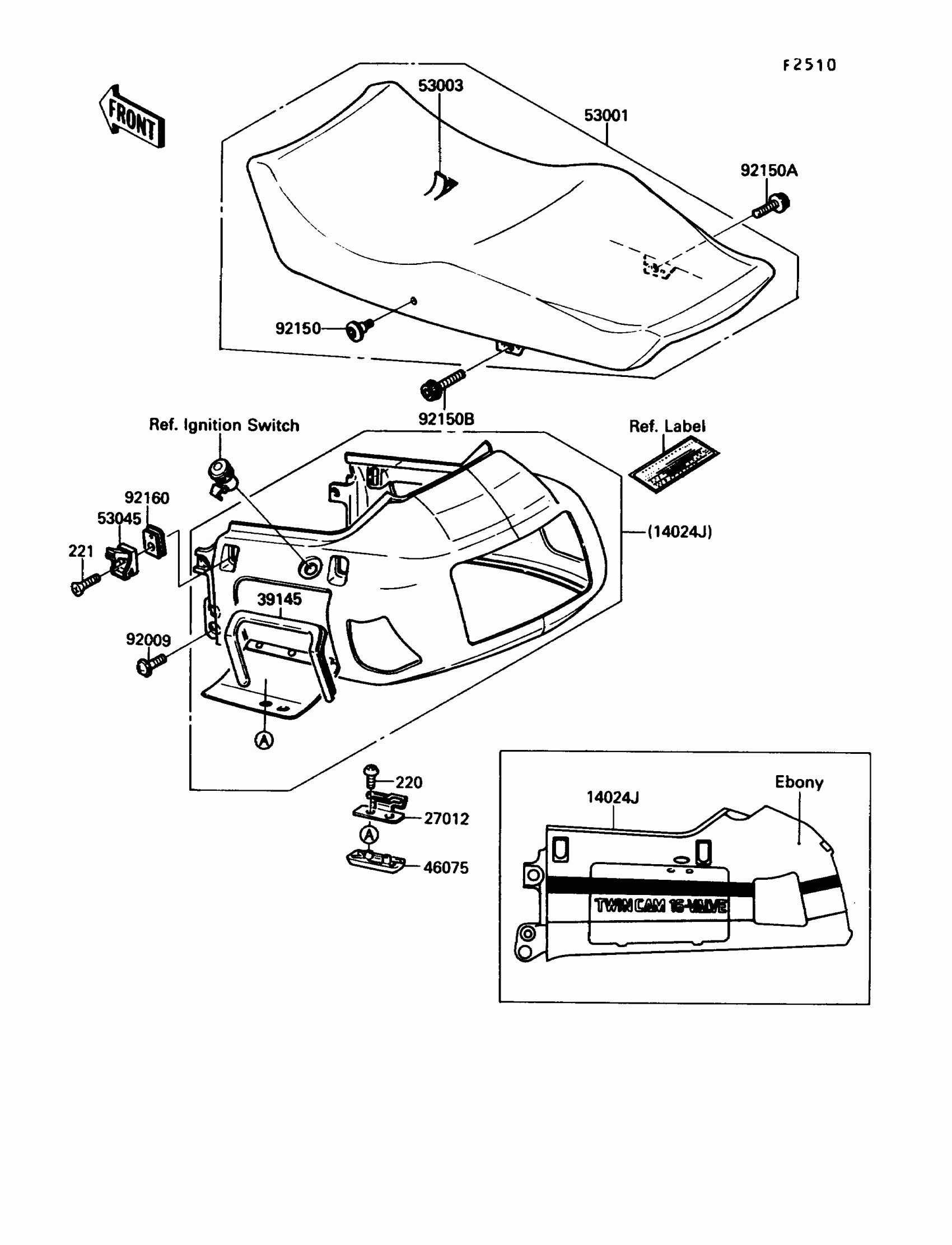

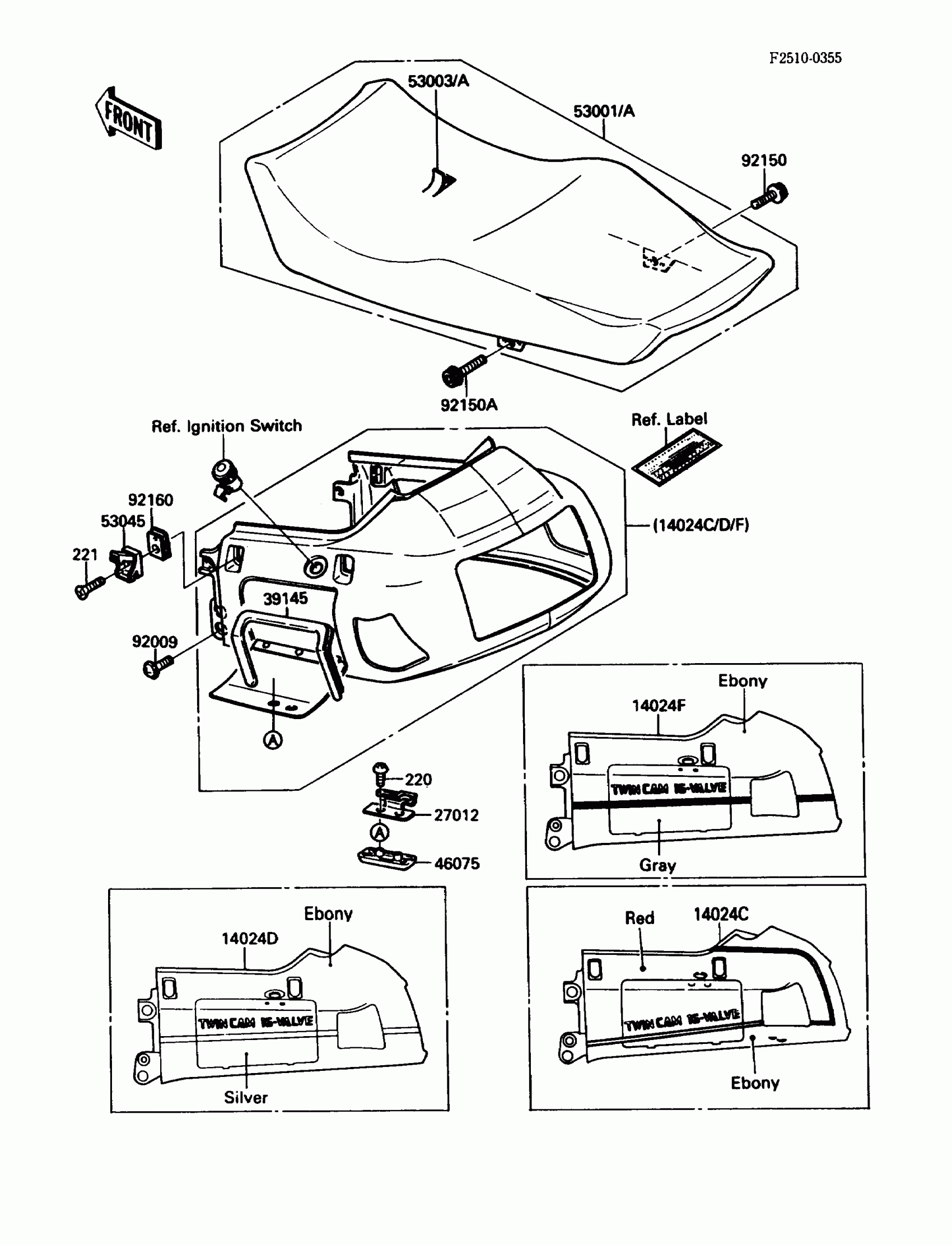

1989 Kawasaki Ninja® ZX™-10 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,4X6

220D0406

1
Out of stock

221

SCREW-CSK-CROS,6X25

221E0625

1
Out of stock

14024F

COVER,SEAT,EBONY/GRAY

14024-5102-T4

1
Out of stock

27012

HOOK,TOOL BOX COVER

27012-1395

1
Out of stock

39145

TRIM-SEAL,TOOL BOX

39145-1088

1
Out of stock

46075

GRIP,TOOL BOX COVER

46075-1077

1
Out of stock

53001

SEAT-ASSY,DUAL,BLACK

53001-1545-MA

1
Out of stock

53003

LEATHER,SEAT,BLACK

53003-1206-MA

1
Out of stock

53045

HOOK-ASSY,TOOL BOX

53045-1053

1
Out of stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92150

BOLT,SOCKET,8X20

92150-1155

1
Out of stock

92150A

BOLT,SOCKET,8X30

92150-1156

1
Out of stock

92160

DAMPER,ROPE HOOK

92160-1042

1
Out of stock
