1989 Kawasaki Ninja® ZX™-10 Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

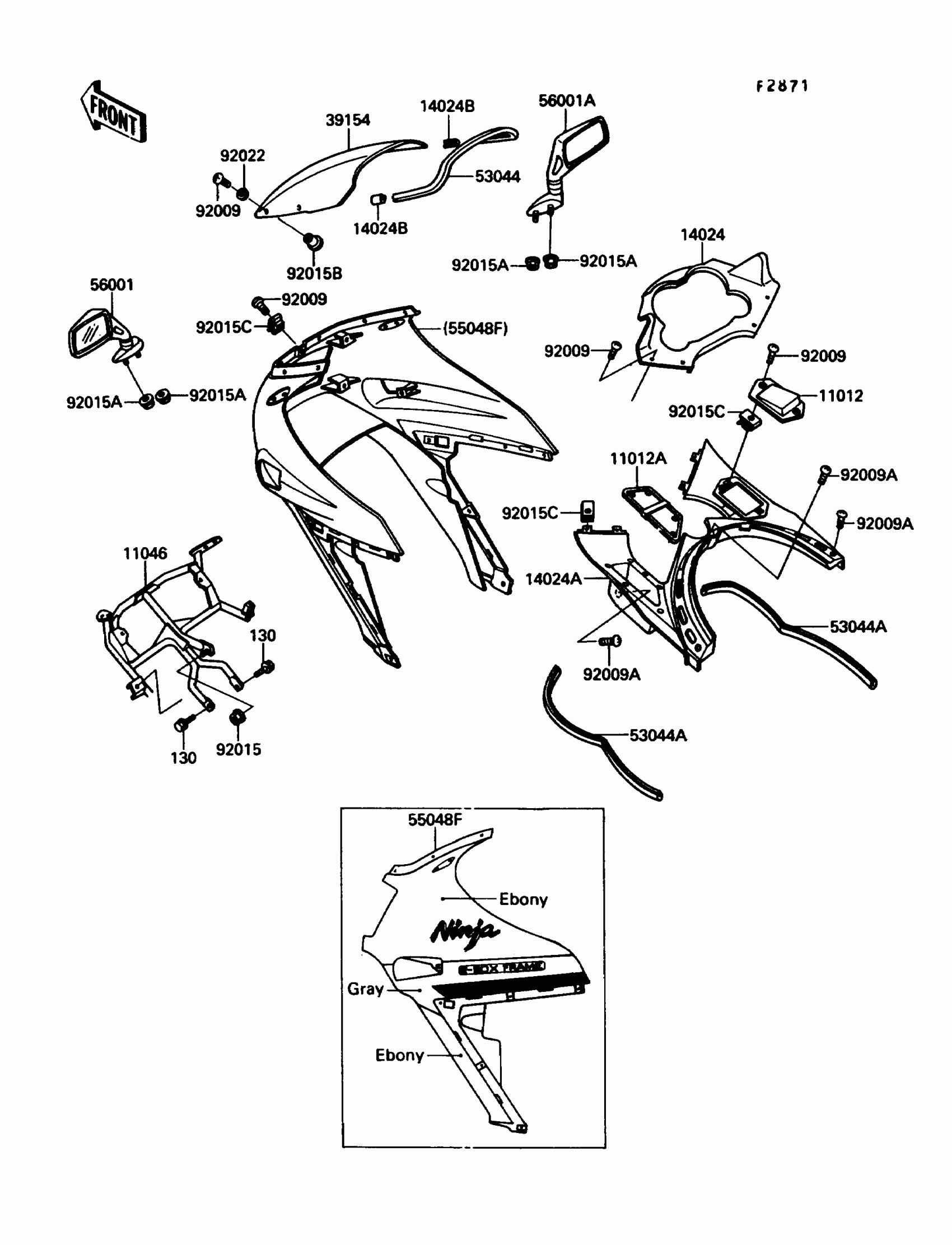

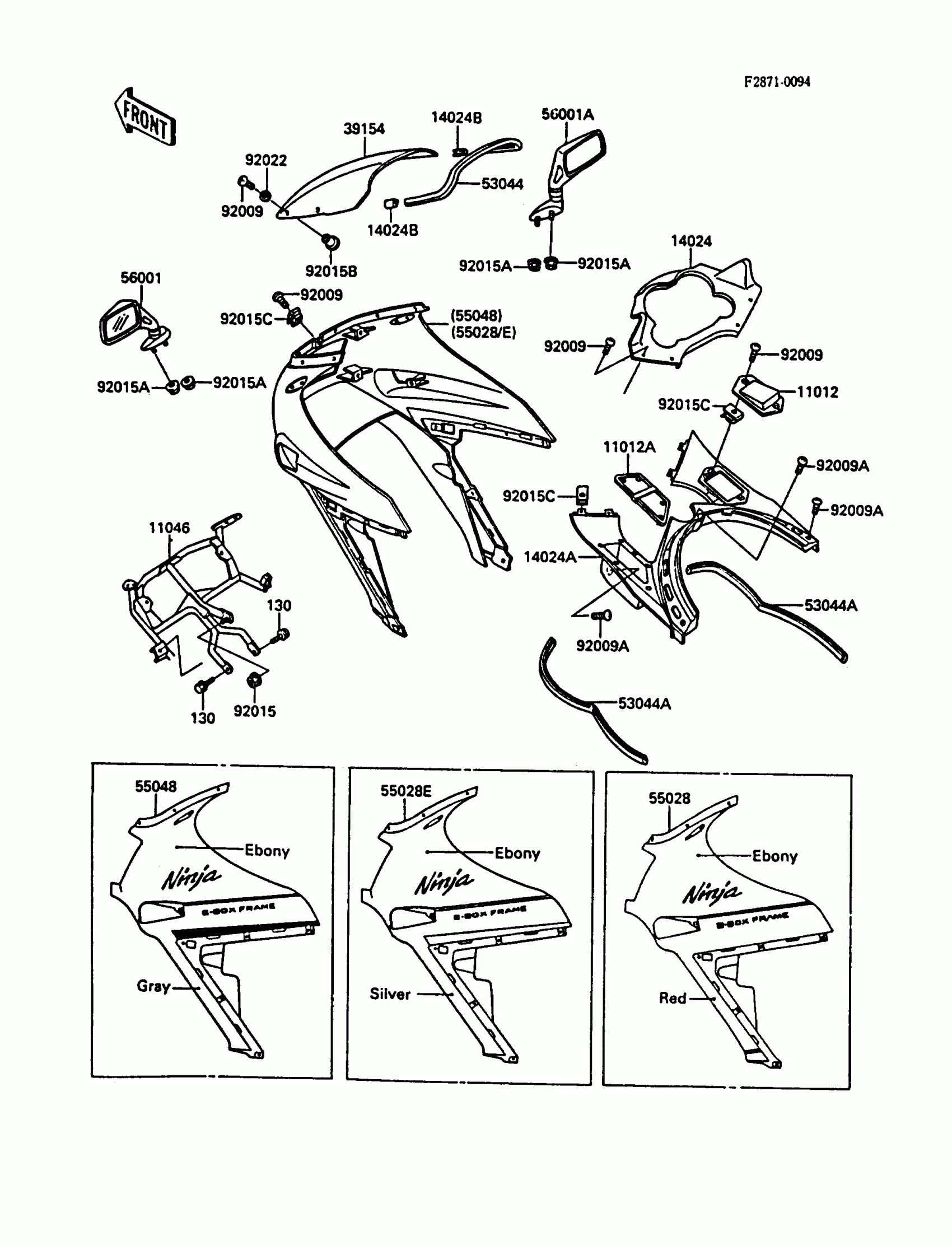

1989 Kawasaki Ninja® ZX™-10 Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

11012

CAP,INNER COWLING,RH

11012-1654

1
Out of stock

11012A

CAP,INNER COWLING,LH

11012-1656

1
Out of stock

11046

BRACKET,UPPER COWLING STAY

11046-1251

1
Out of stock

14024

COVER,INNER COWLING,FR

14024-1642

1
Out of stock

14024A

COVER,INNER COWLING,RR

14024-1643

1
Out of stock

14024B

COVER,TRIM END

14024-1730

1
Out of stock

39154

WINDSHIELD

39154-1081

1
Out of stock

53044

TRIM,L=720

53044-1203

1
Out of stock

53044A

TRIM,L=685

53044-1210

1
Out of stock

55048

COWLING.,UPP,EBONY/GRAY

55048-5018-T4

1
Out of stock

56001

MIRROR-ASSY,LH,EBONY

56001-1325-6C

1
Out of stock

56001A

MIRROR-ASSY,RH,EBONY

56001-1326-6C

1
Out of stock

92009

SCREW,5X16,BLACK

92009-1301

1
Out of stock

92009A

SCREW,6X10

92009-1530

1
Out of stock

92015

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92015A

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015B

NUT,WELL,5MM

92015-1640

1
Out of stock

92015C

NUT,5MM

92015-1710

1
Out of stock

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

1
Out of stock
