1989 Kawasaki Ninja® ZX™-10 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

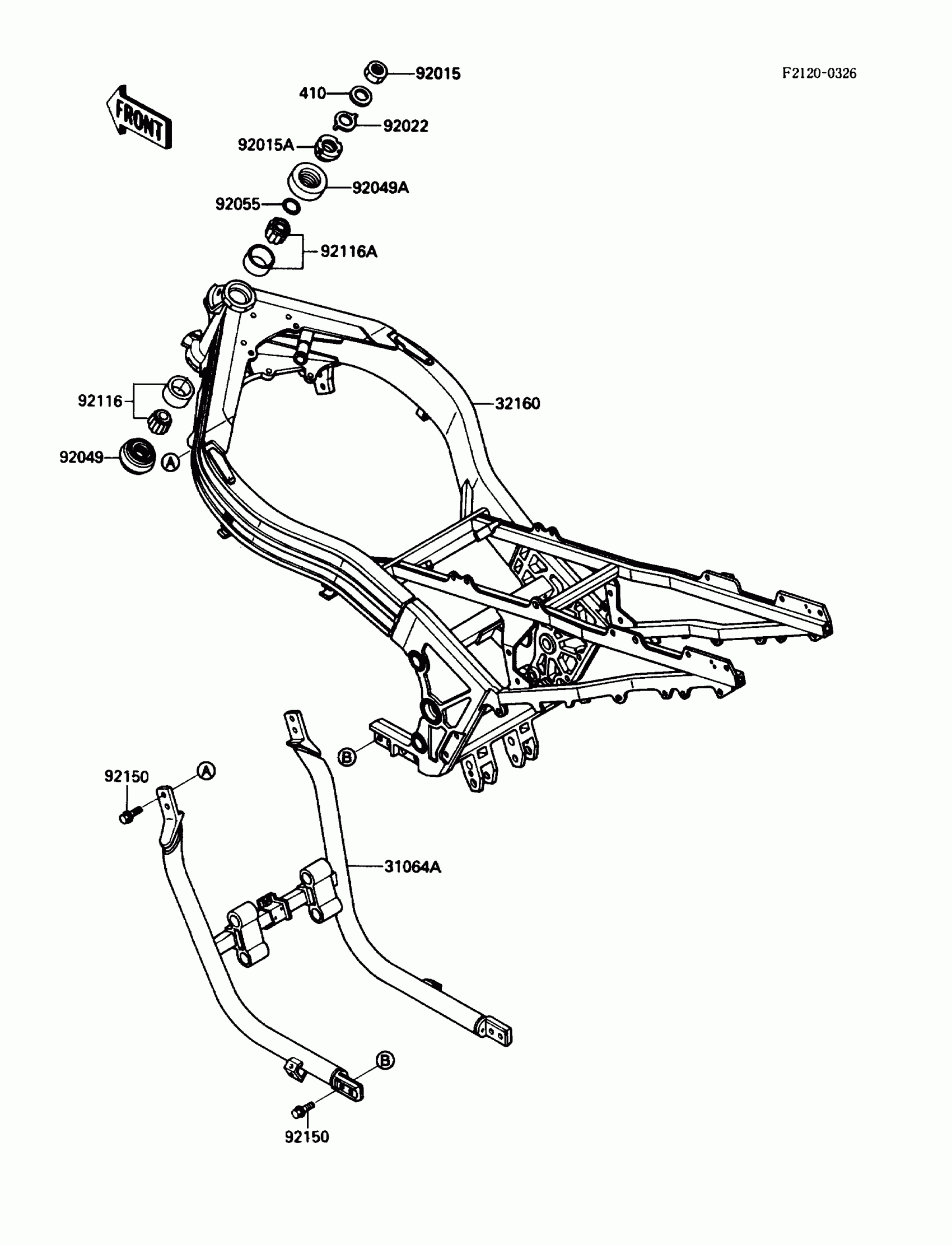

1989 Kawasaki Ninja® ZX™-10 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

W-PLAIN-S

410F1800

1
Out of stock

31064A

1

$468.79

In stock

32160

1

$2,639.71

In stock

92015

NUT,18MM

92015-1404

1

$21.97

In stock

92015A

NUT,25MM,T=12

92015-1546

1

$19.66

In stock

92022

1

$7.49

In stock

92049

SEAL-OIL,XMHE36X52X4J

92049-1162

1
Out of stock

92049A

SEAL-OIL,XMH33 70 6.4J-A

92049-1313

1
Out of stock

92055

RING-O,24.7MM

92055-1160

1

$3.72

In stock

92116

1

$33.21

In stock

92116A

1

$43.76

In stock

92150

BOLT,FLANGED,10X30

92150-1174

1

$4.58

In stock
