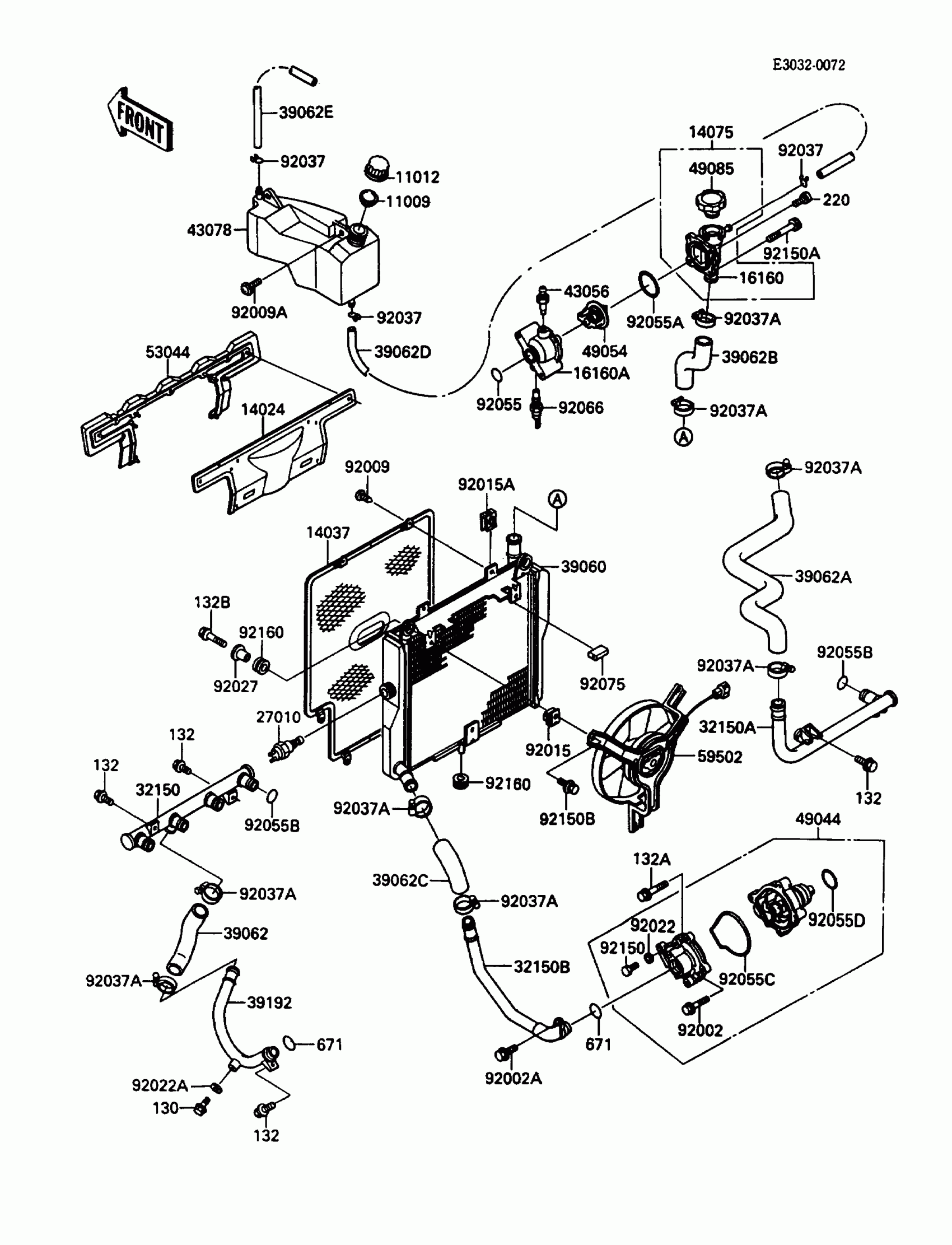

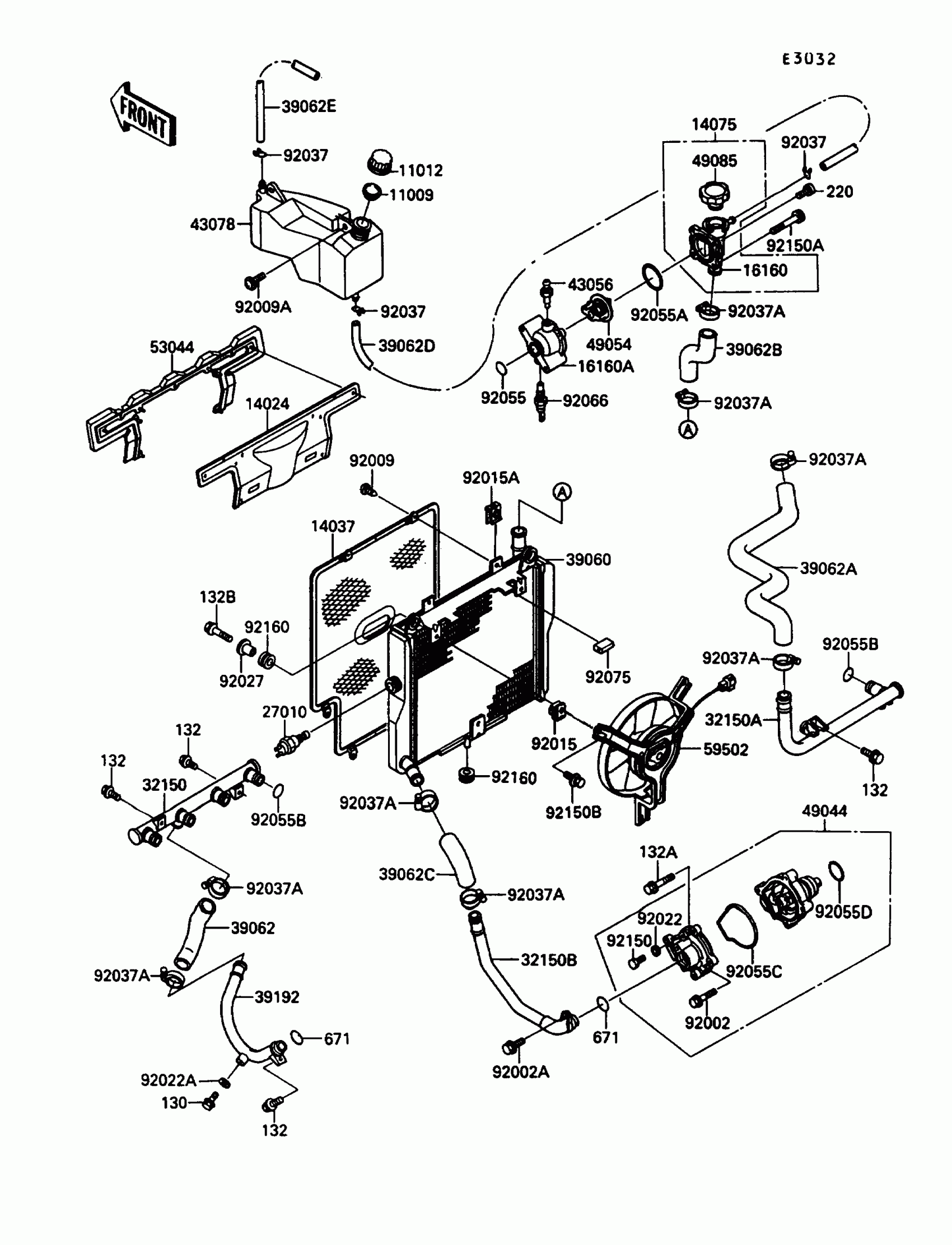

Kawasaki Ninja® ZX™-10 Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14024

COVER,HEAT

14024-1627

Unavailable

14037

SCREEN

14037-1101

$90.54

14075

CAP-ASSY

14075-1068

$174.32

16160

BODY,THERMOSTAT,UPP

16160-1116

$174.32

16160A

BODY,THERMOSTAT

16160-1147

Unavailable

27010

SWITCH,FAN

27010-1202

$88.04

32150

PIPE,CYLINDER

32102-1919

Unavailable

32150A

PIPE,HEAD

32102-1920

$109.63

32150B

PIPE,RADIATOR-PUMP

32102-1921

$78.04

39060

RADIATOR

39060-1081

$988.38

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1276

$41.57

39062A

HOSE-COOLING,HEAD-THERMO

39062-1277

Unavailable

39062B

HOSE-COOLING,THERMO-RADIATOR

39062-1278

Unavailable

39062C

HOSE-COOLING,RADIATOR-PUMP

39062-1279

Unavailable

39062D

HOSE-COOLING,5.5X10.5X200

39062-1280

$38.54

39062E

HOSE-COOLING,5.5X10.5X1320

39062-1291

Unavailable

39192

PIPE-WATER,PUMP-CYLINDER

39192-1011

$79.65

43056

BREATHER

43056-003

$19.94

43078

RESERVOIR

43078-1090

Unavailable

49044

PUMP-WATER

49044-1062

$301.81

49054

THERMOSTAT

49054-1051

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1054

$47.60

53044

TRIM

53044-1201

$57.17

59502

FAN-ASSY

59502-1067

$846.87

92002

BOLT,6X22

92002-1392

$4.19

92002A

BOLT,6X16

92002-1571

$4.17

92009

SCREW,TAPPING,6MM

92009-1261

$2.29

92009A

SCREW,6X14,BLACK

92009-1308

$2.99

92015

NUT

92015-1487

$3.64

92015A

NUT,6MM

92015-1758

$5.15

92022

WASHER,6MM

92022-1976

$5.46

92022A

WASHER,6.2X11X1

92022-304

$2.76

92027

COLLAR,FUEL TANK FITT

92027-1134

$7.83

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,COOLING HOSE

92037-1985

$6.25

92055

RING-O,27.7X2.4

92055-091

$4.67

92055A

RING-O,53.5X2.6

92055-112

$4.97

92055B

RING-O

92055-1282

$3.98

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

Unavailable

132A

BOLT-FLANGED-SMALL,6X40

132J0640

Unavailable

132B

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

220

SCREW-PAN-CROS,5X14

220D0514

Unavailable

671

O RING,25MM

671B2525

$3.81

92055C

RING-O,WATER PUMP INSIDE

92055-1423

$7.13

92055D

RING-O,33.2X2.4

92055-1424

$4.71

92066

PLUG,SENSOR WATER

92066-1183

$59.54

92075

DAMPER

92075-1446

$4.17

92150

BOLT,6X10

92002-1391

$3.95

92150A

BOLT,SOCKET,5X55

92150-1071

Unavailable

92150B

BOLT,6X12

92150-1186

$2.56

92160

DAMPER

92160-1007

$4.18
