1989 Kawasaki Ninja® ZX™-10 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

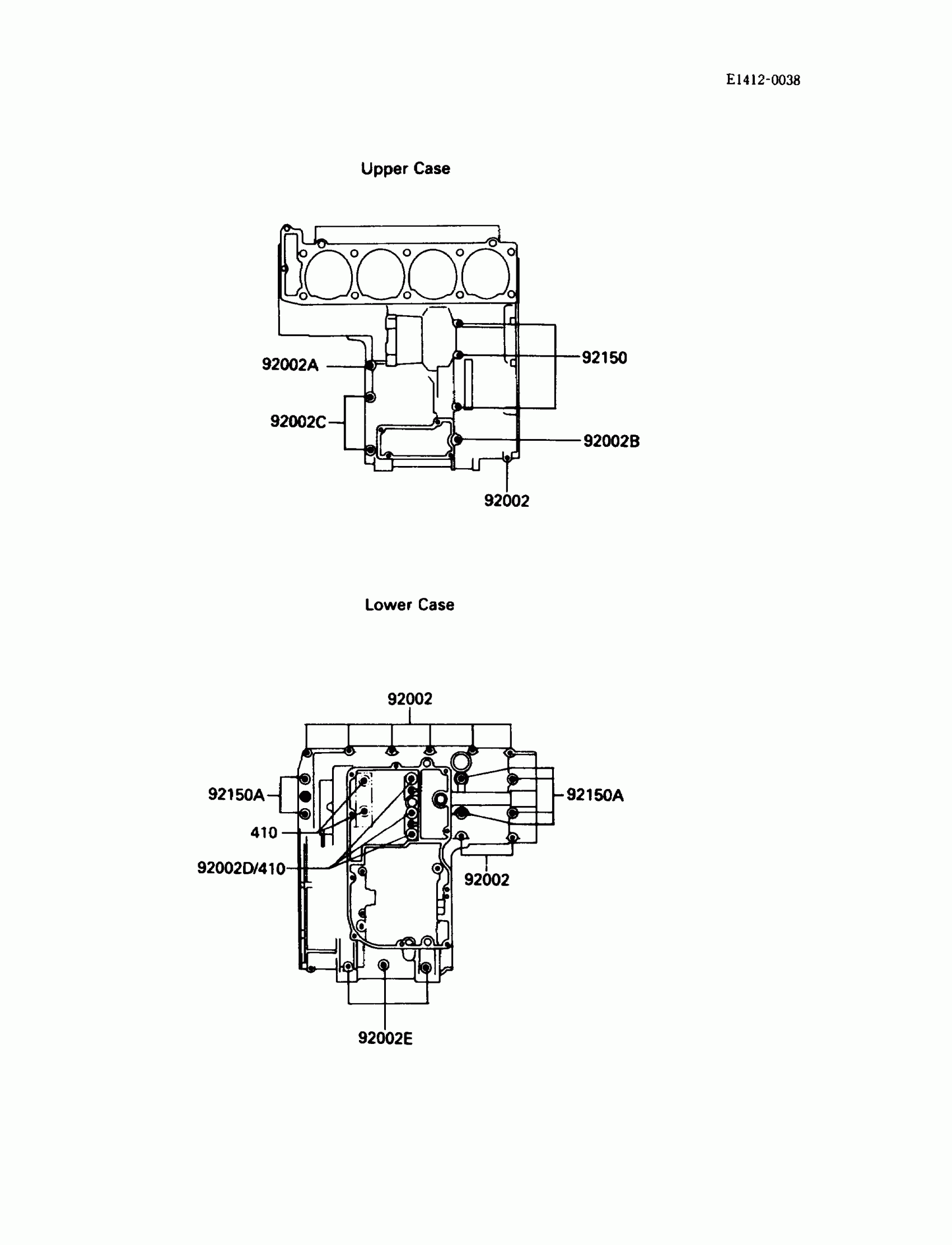

1989 Kawasaki Ninja® ZX™-10 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

410

WASHER PLAIN 8MM

410B0800

1
Out of stock

92002

BOLT,6X38

92001-1899

1

$3.92

In stock

92002A

BOLT,6X55

92002-1054

1
Out of stock

92002B

BOLT,6X85

92002-1306

1

$5.10

In stock

92002C

BOLT,8X63

92002-1308

1

$8.44

In stock

92002D

BOLT,8X140

92002-1402

1
Out of stock

92002E

BOLT,6X120

92002-1654

1
Out of stock

92150

BOLT,6X115

92150-1140

1

$7.14

In stock

92150A

BOLT,8X90

92150-1163

1

$9.27

In stock
