1989 Kawasaki Ninja® ZX™-10 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1989 Kawasaki Ninja® ZX™-10, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

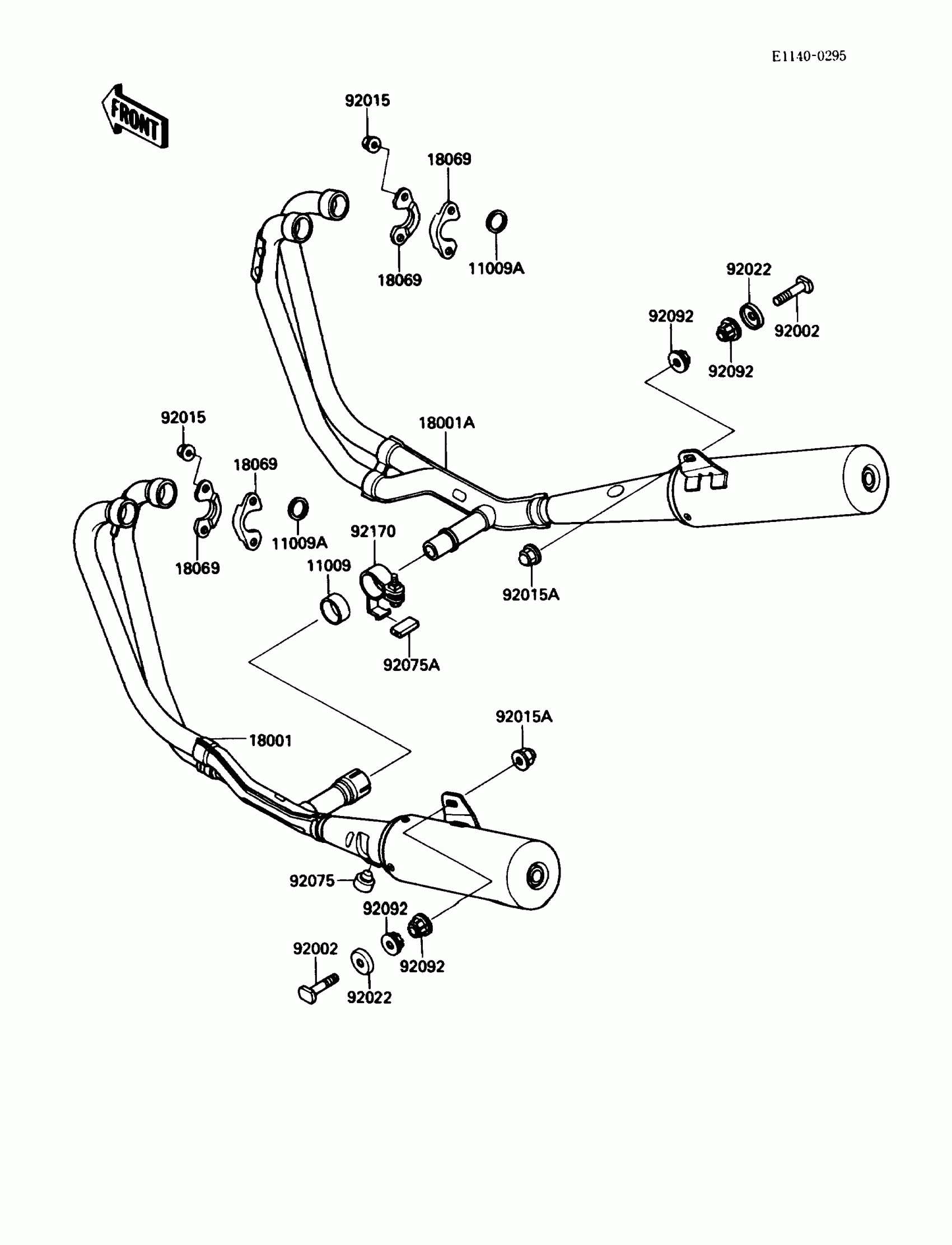

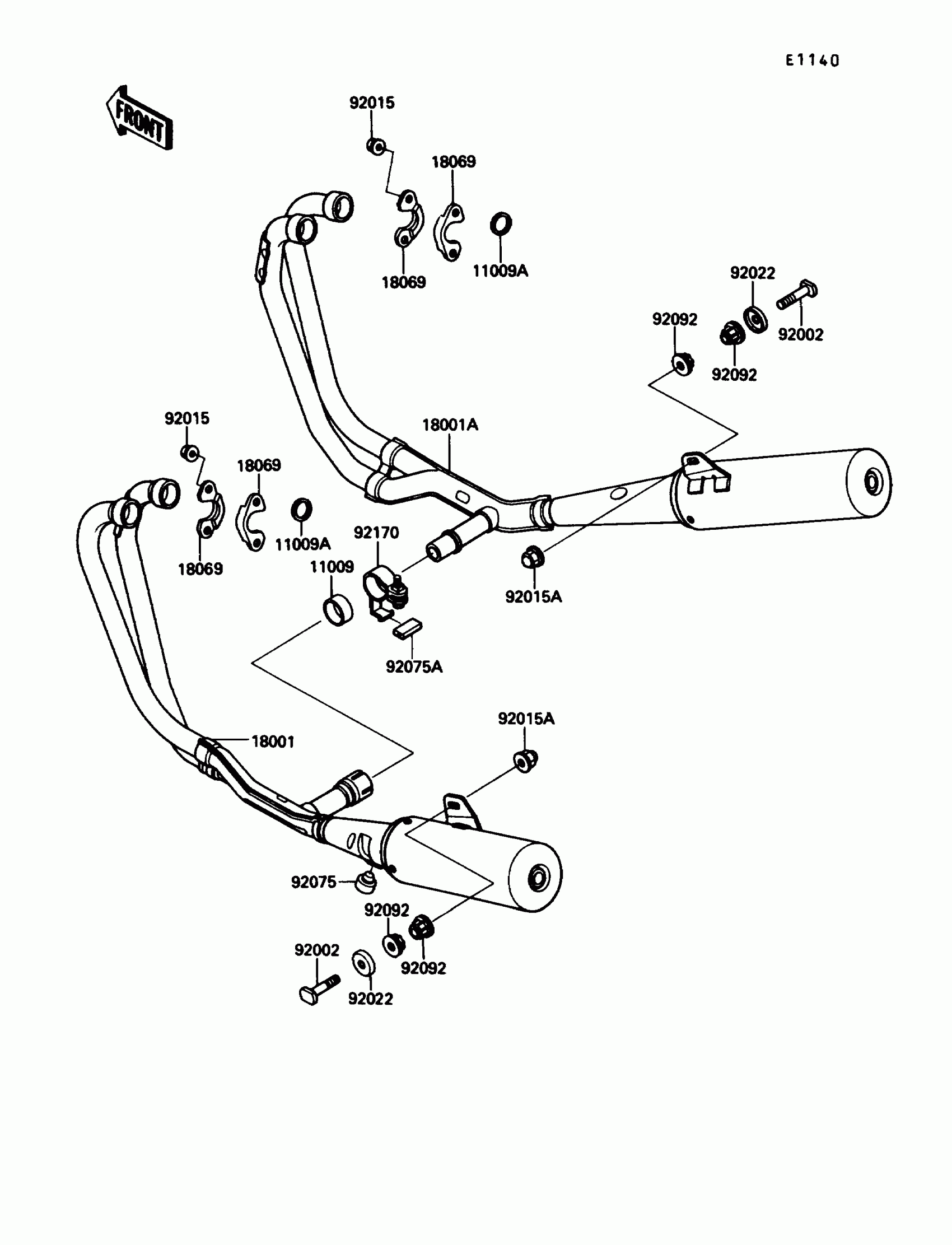

1989 Kawasaki Ninja® ZX™-10 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET

11009-1751

1
Out of stock

11009A

GASKET,EXHAUST PIPE HOLDER

18067-013

1
Out of stock

18001

MUFFLER,LH

18001-1683

1
Out of stock

18001A

MUFFLER,RH

18001-1684

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1054

1
Out of stock

92002

BOLT,10X55

92002-1939

1
Out of stock

92015

NUT,LOCK,8MM

92015-1380

1
Out of stock

92015A

NUT,CAP,10MM

92015-1749

1
Out of stock

92022

WASHER,CUP TYPE,BLACK

92022-1355

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92075A

DAMPER

92075-1446

1
Out of stock

92092

BUSHING-RUBBER,MUFFLER

92092-1013

1
Out of stock

92170

CLAMP,MUFFLER

92170-1053

1
Out of stock
