1985 Kawasaki Ninja® Brake Pedal Diagram

← All diagrams

Find the part on the Brake Pedal diagram for your 1985 Kawasaki Ninja®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

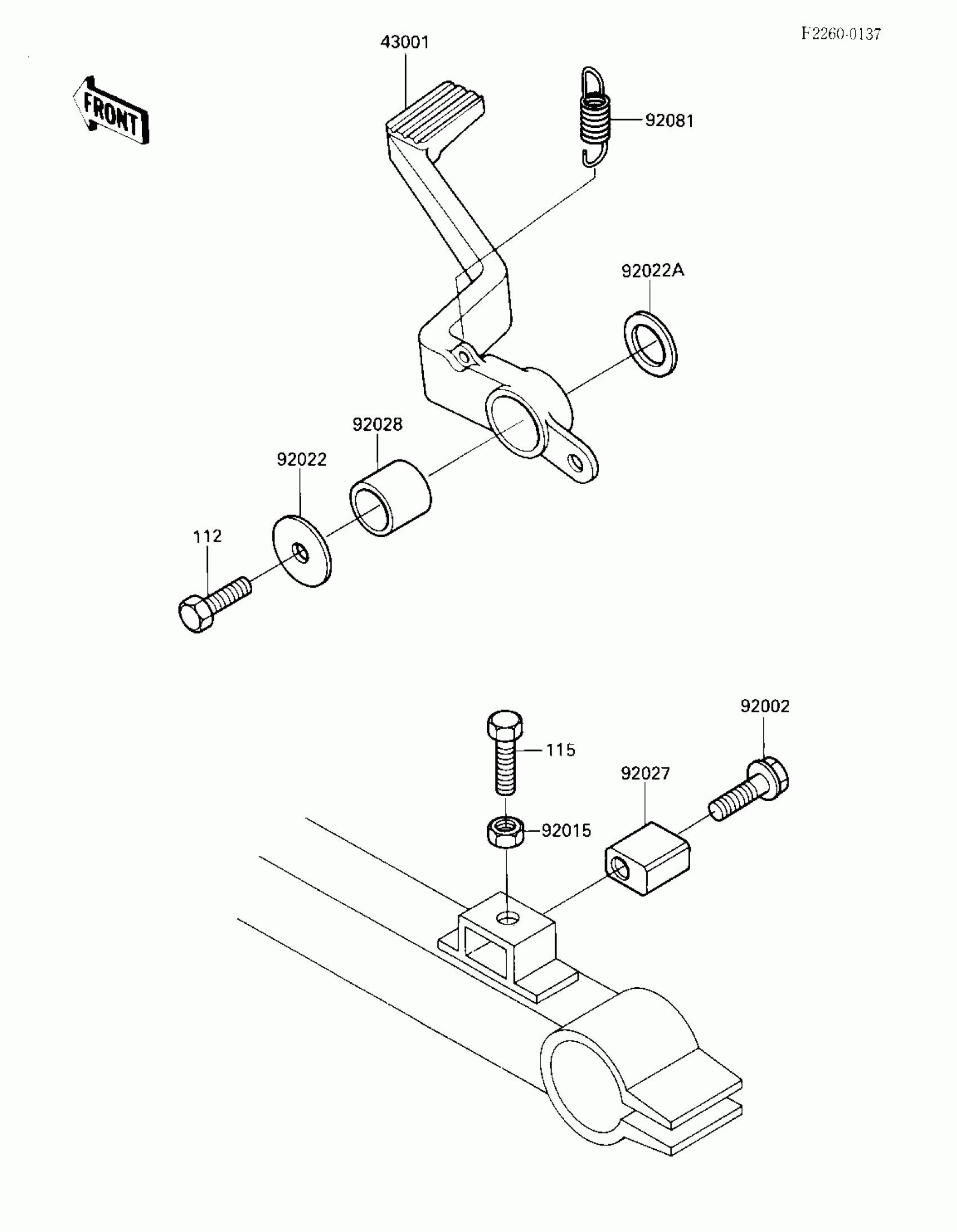

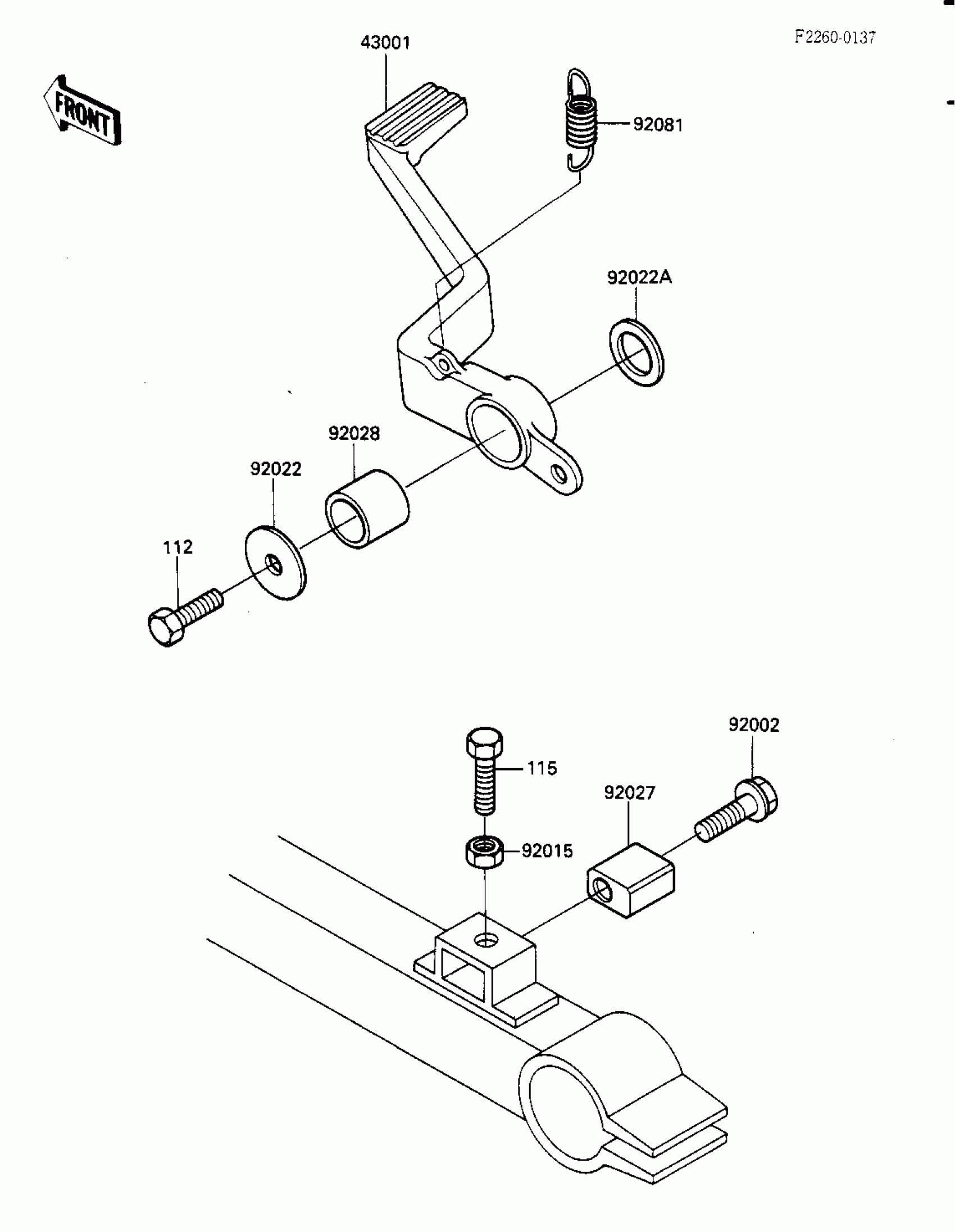

1985 Kawasaki Ninja® Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

43001

LEVER-BRAKE,PEDAL

43001-1174

1

$149.17

In stock

92002

BOLT

92002-1340

1
Out of stock

92015

NUT,8MM

92015-1364

1

$3.12

In stock

92022

WASHER,7X28X1.6

92022-1282

1

$3.72

In stock

92022A

WASHER,15.3X24X1

92022-326

1
Out of stock

92027

COLLAR,RR CALIPER

92027-1730

1

$22.69

In stock

92028

BUSHING,BRAKE PEDAL

92028-1282

1

$13.39

In stock

92081

SPRING,BRAKE PEDAL

92081-1672

1
Out of stock

112

BOLT-UPSET 6X14

112B0614

1
Out of stock

115

BOLT-SMALL-UPSET

115X0825

1
Out of stock
