2018 Kawasaki Ninja H2™ SX Se Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2018 Kawasaki Ninja H2™ SX Se, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

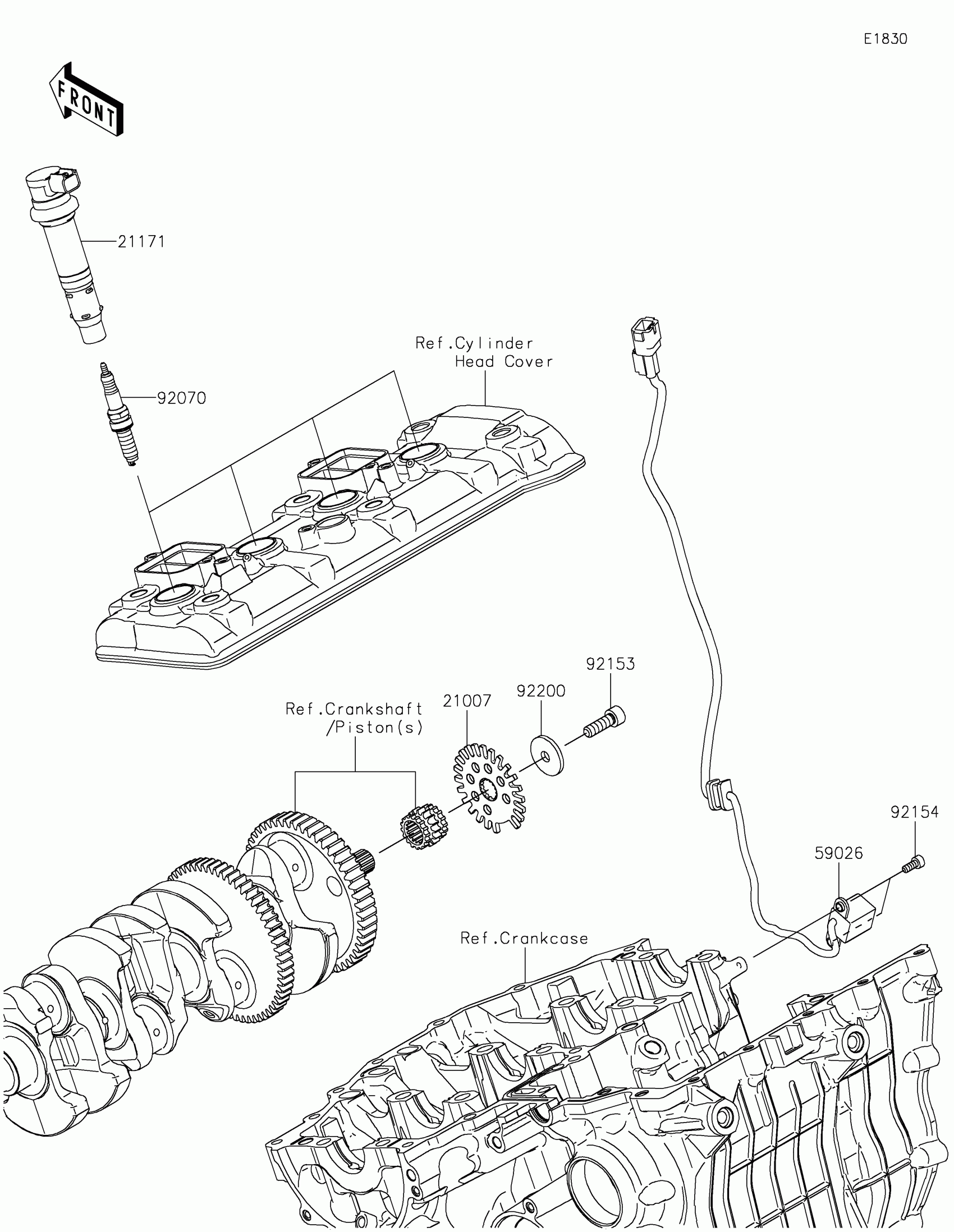

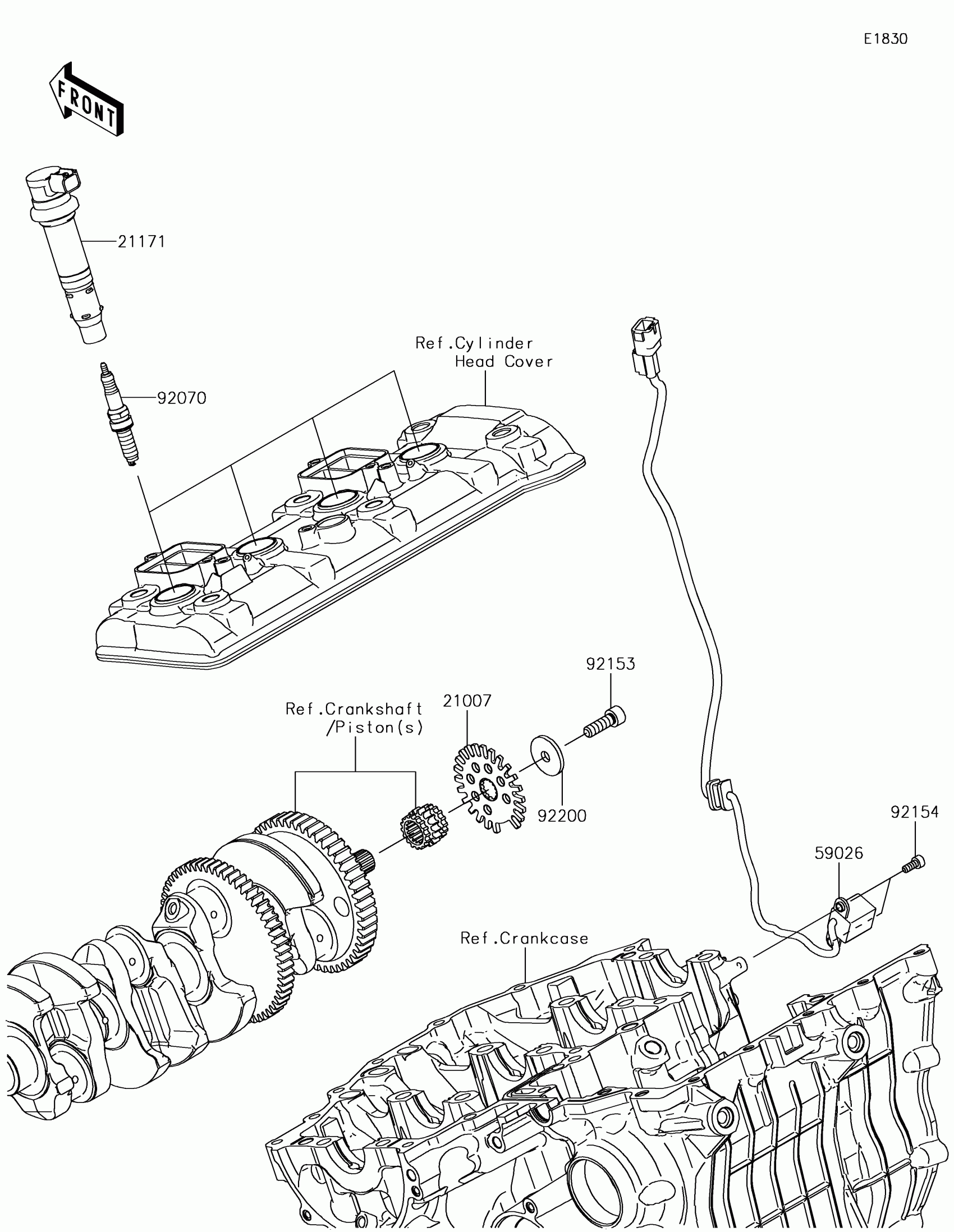

2018 Kawasaki Ninja H2™ SX Se Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21007

ROTOR,PULSING

21007-0622

1

$48.22

In stock

21171

COIL-ASSY-IGNITION

21171-0732

1

$169.34

In stock

59026

COIL-PULSING

59026-0047

1

$114.70

In stock

92070

1

$48.80

In stock

92153

BOLT,8X25

92153-1191

1
Out of stock

92154

BOLT,SOCKET,5X12

92154-1540

1

$3.15

In stock

92200

WASHER,8.2X30X3

92200-2142

1
Out of stock
